Main Components

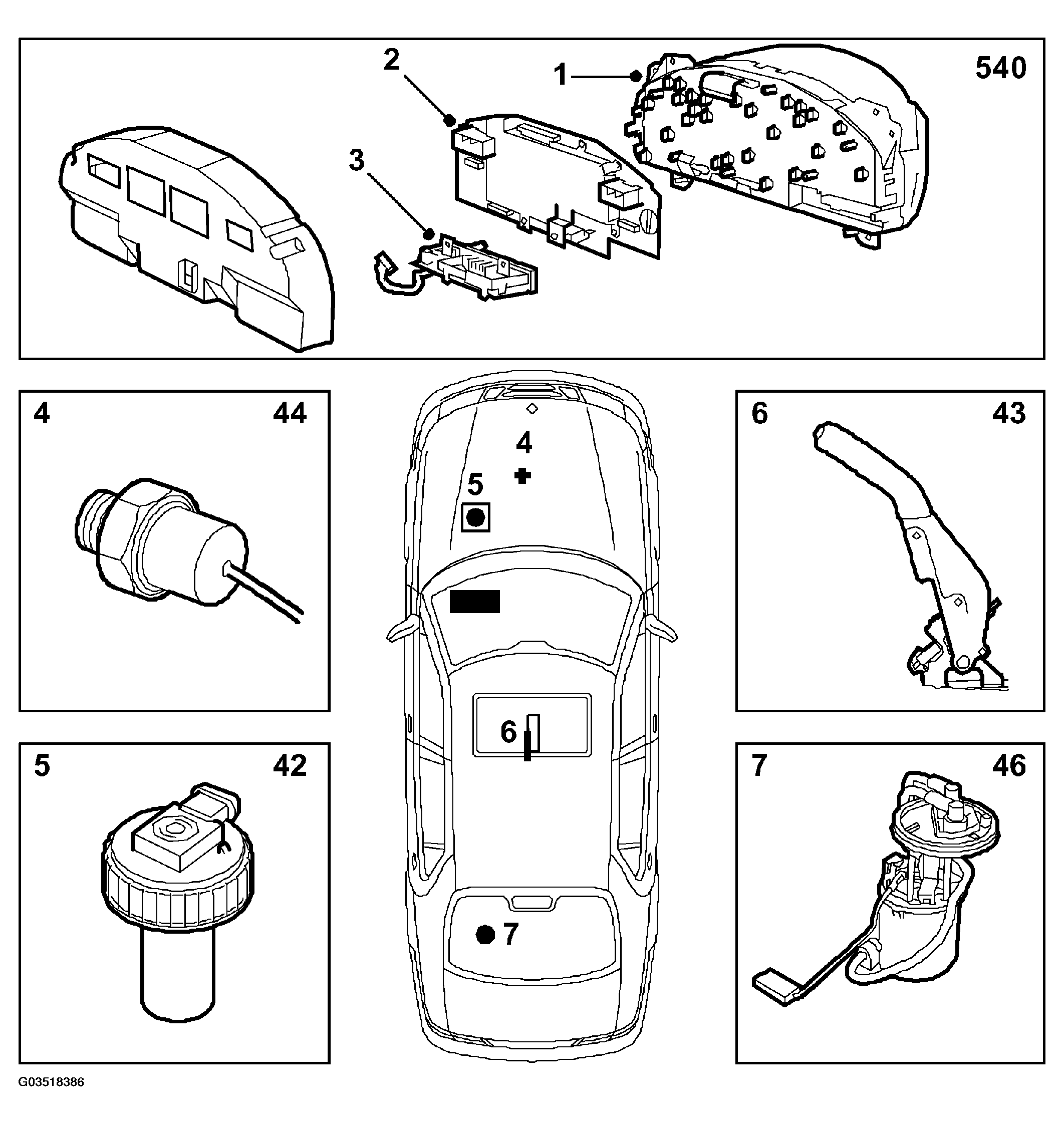

Fig 1: Identifying Components

G03518386

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Instrument unit (Front) (540)
Electronic unit (MIU) (540)
Tripmeter display (540)
Engine oil pressure sensor (44)
Brake fluid level sensor (42)
Handbrake switch (43)
Fuel level sensor (46)
