Injectors, Flow Capacity: V6

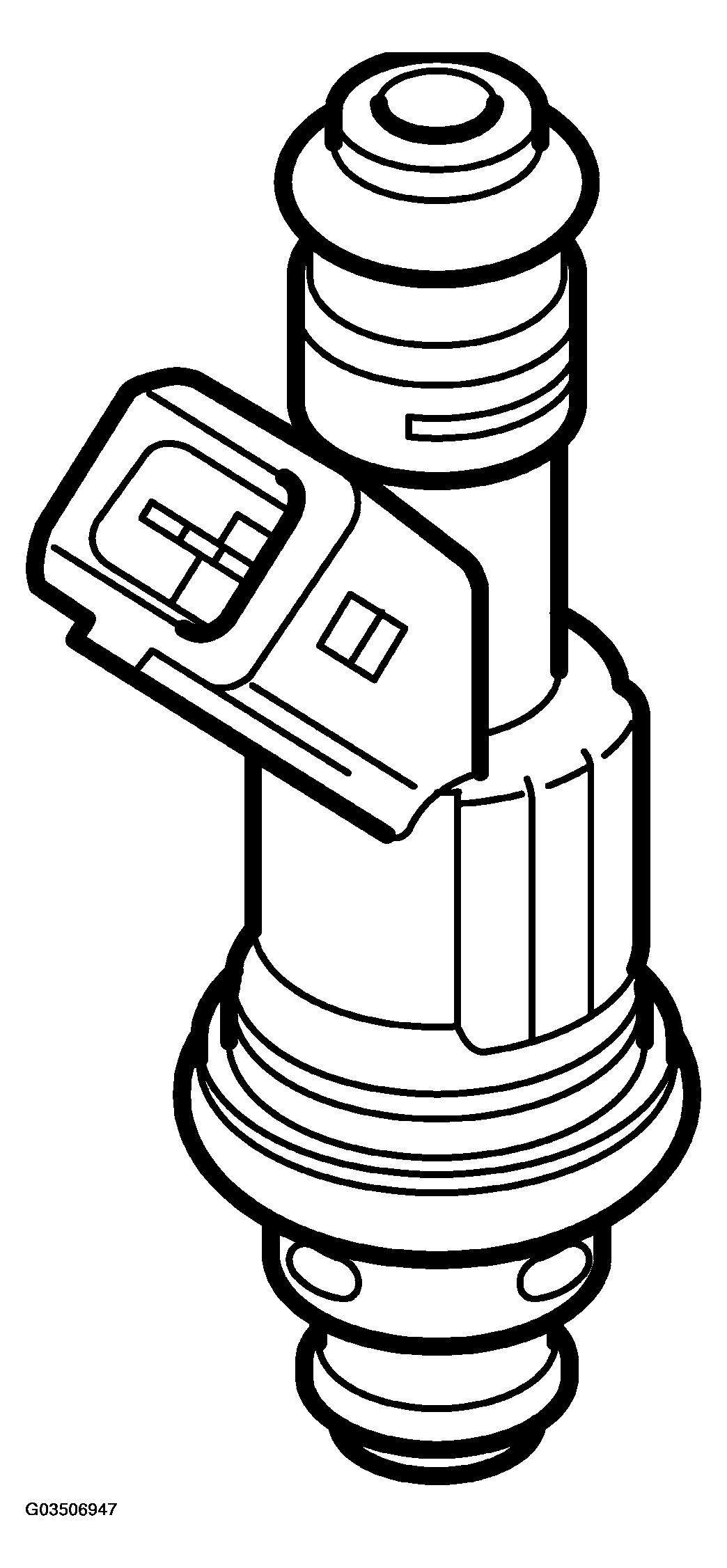

Fig 1: Identifying Injectors (V6)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

INJECTORS (V6) TECHNICAL DATA

		B308E
Flow capacity	ml/30s	109 +/- 4
Maximum permissible difference between injectors.	ml	8
