Control Module

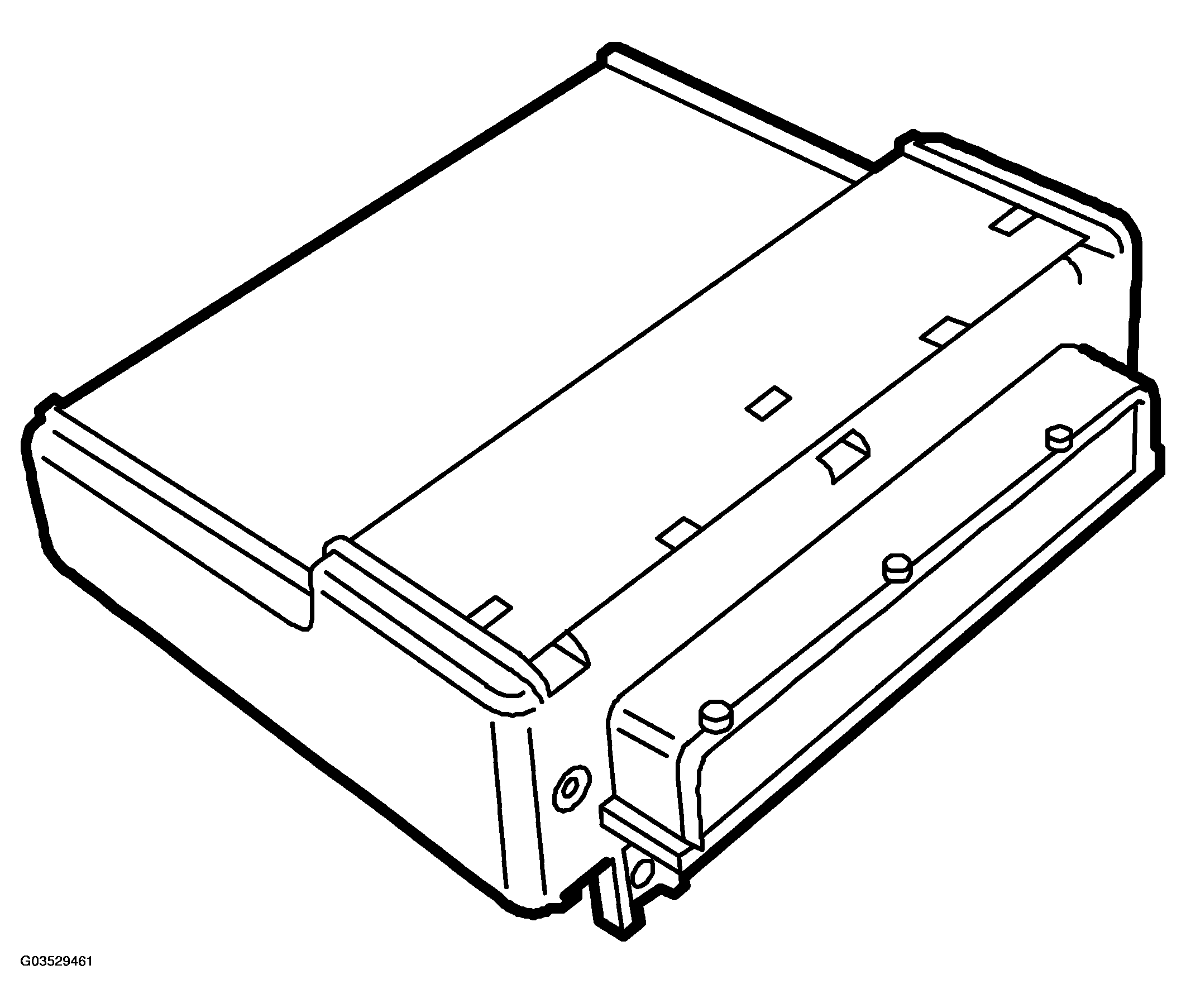

CONTROL MODULE REFERENCE DATA
| Location | LHD | Above main relay board |
| RHD | Next to main relay board | |
| Number of pins | 70 | |
| Power supply (+B circuit) | Pin no. | 7 |
| Power supply (+15 circuit) | Pin no. | 64 |
| Power supply (+30 circuit) | Pin no. | 26 |
| Power supply (+54 circuit) | Pin no. | 31 |
| Power ground | Pin no. | 57 |
| Instrument bus, I-BUS (+) | Pin no. | 14 |
| Instrument bus, I-BUS (-) | Pin no. | 5 |
