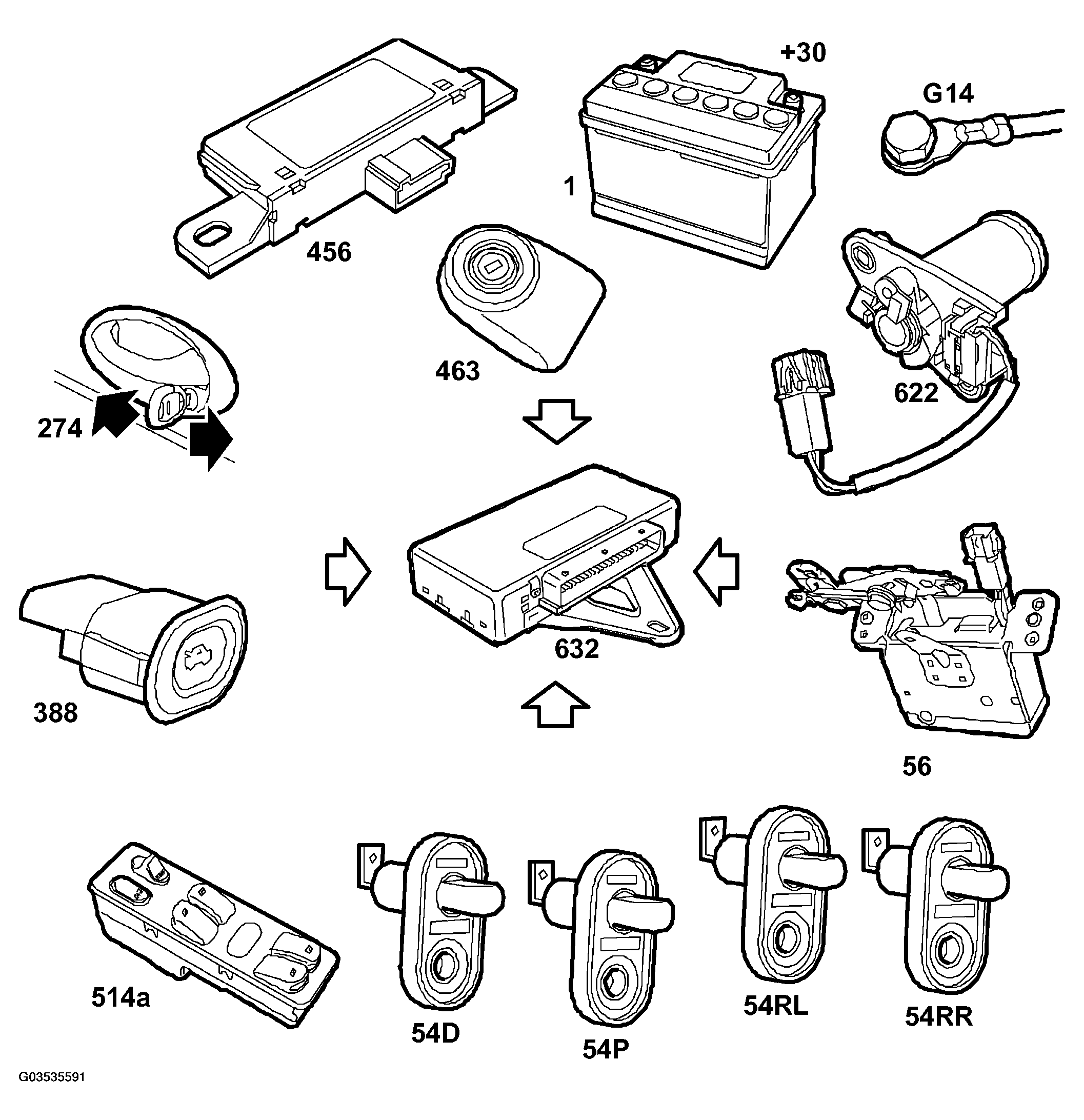

Control Module Inputs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Power supply +30
- Grounding point (G14)
- Switch, central locking system (514a)
- Switch, tailgate, in driver's door (388)
- Microswitch in driver's door (274)
- Door switch, driver's door (54D)
- Door switch, passenger door (54P)
- Door switch, left rear door (54 RL)
- Door switch, right rear door (54RR)
- Tailgate switch, 3D/5D (56)
- Bootlid switch, Convertible (56)
- Receiver, remote control (456)
- Antenna unit, immobilizer (463)
- Microswitch, luggage compartment lock (622)
