Injectors (206)

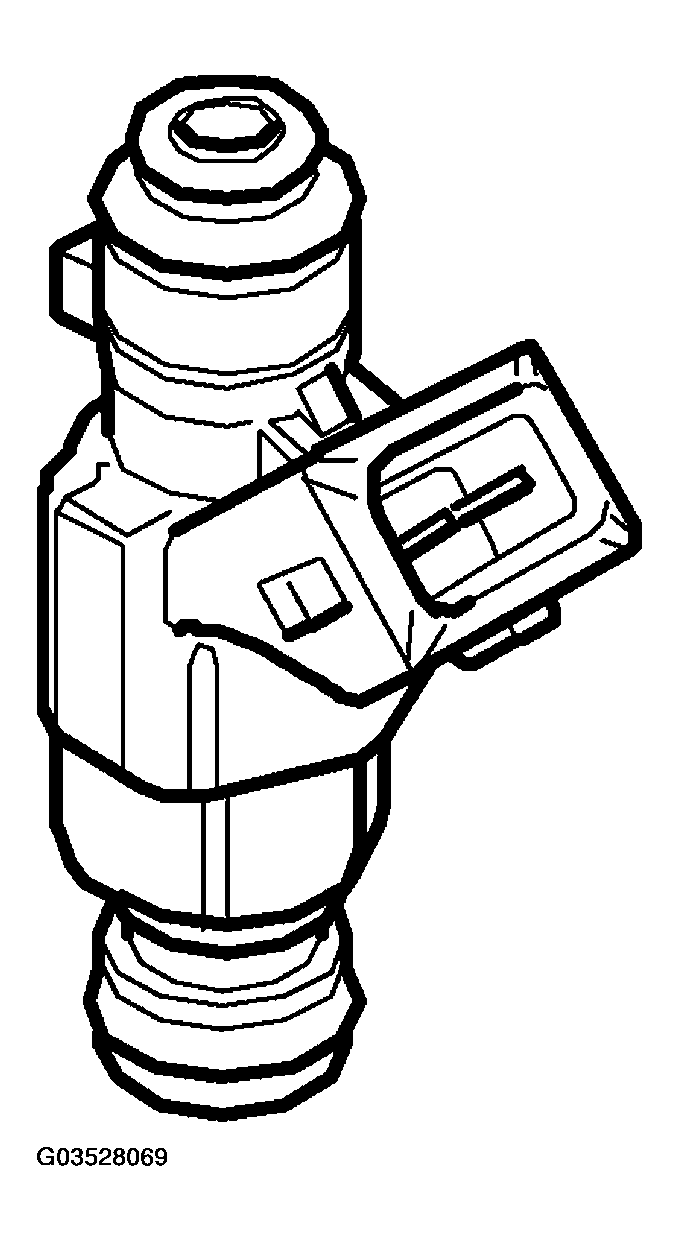

Fig 1: Identifying Injectors

Courtesy of SAAB-SCANIA OF AMERICA, INC.

INJECTORS SPECIFICATIONS

Location	-	On top of intake manifold
Engine type	-	B205E/L/R, B235R
Type	-	Bosch EV6E, brown
Version	-	4-hole
Flow capacity	ml/30 s	176 +/- 10
Maximum permissible difference between injectors	ml	20
