System overview: Notes

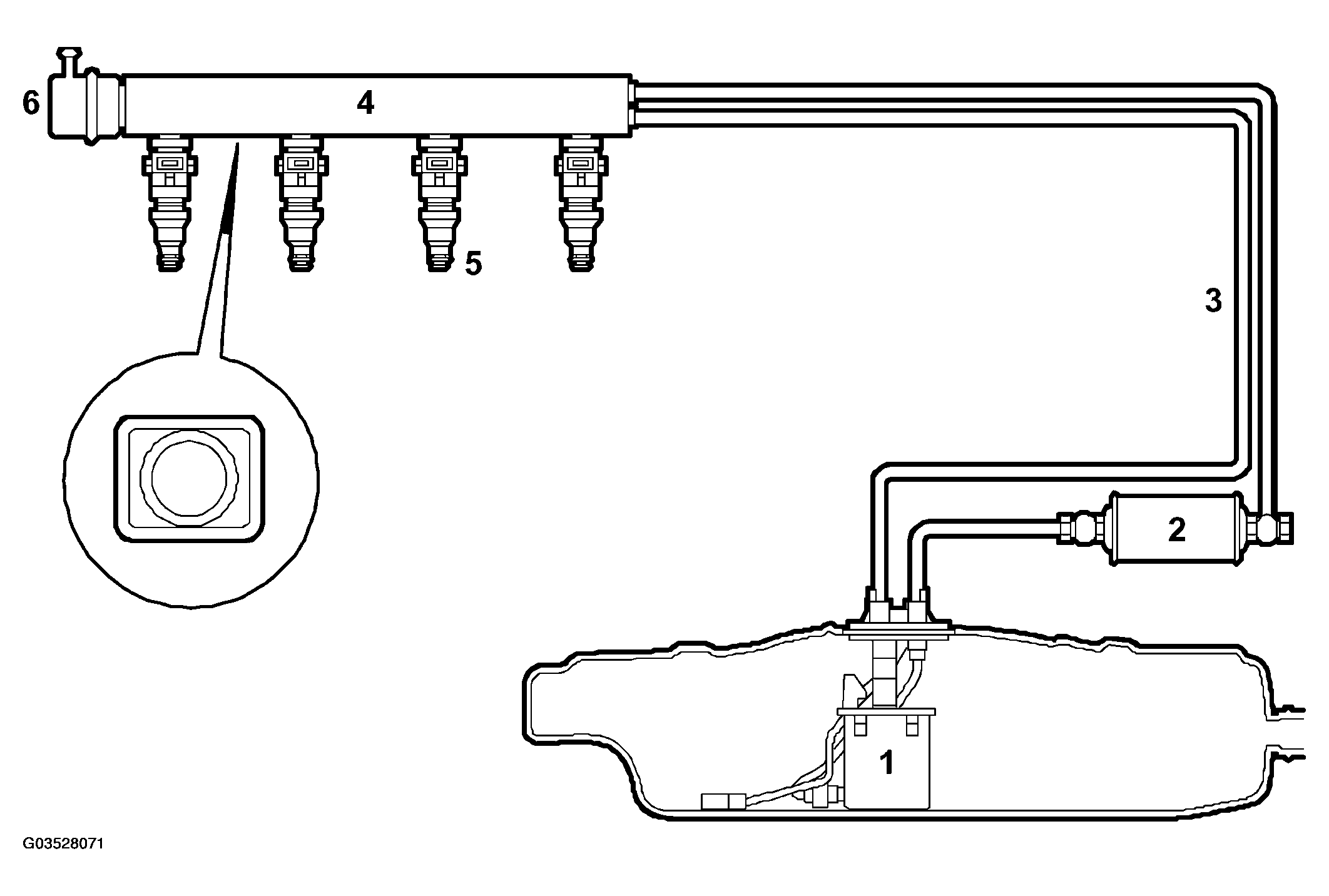

Fig 1: Illustration For Steps 1-5
G03528071Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fuel pump
  2. Fuel filter
  3. Fuel line
  4. Fuel rail
  5. Injector
  6. Pressure regulator
