Removal (4-Cyl)

  1. Unplug the 10-pin ignition discharge module connector. See Fig 1 .
  2. Remove the 4 screws.
  3. Lift up the module.

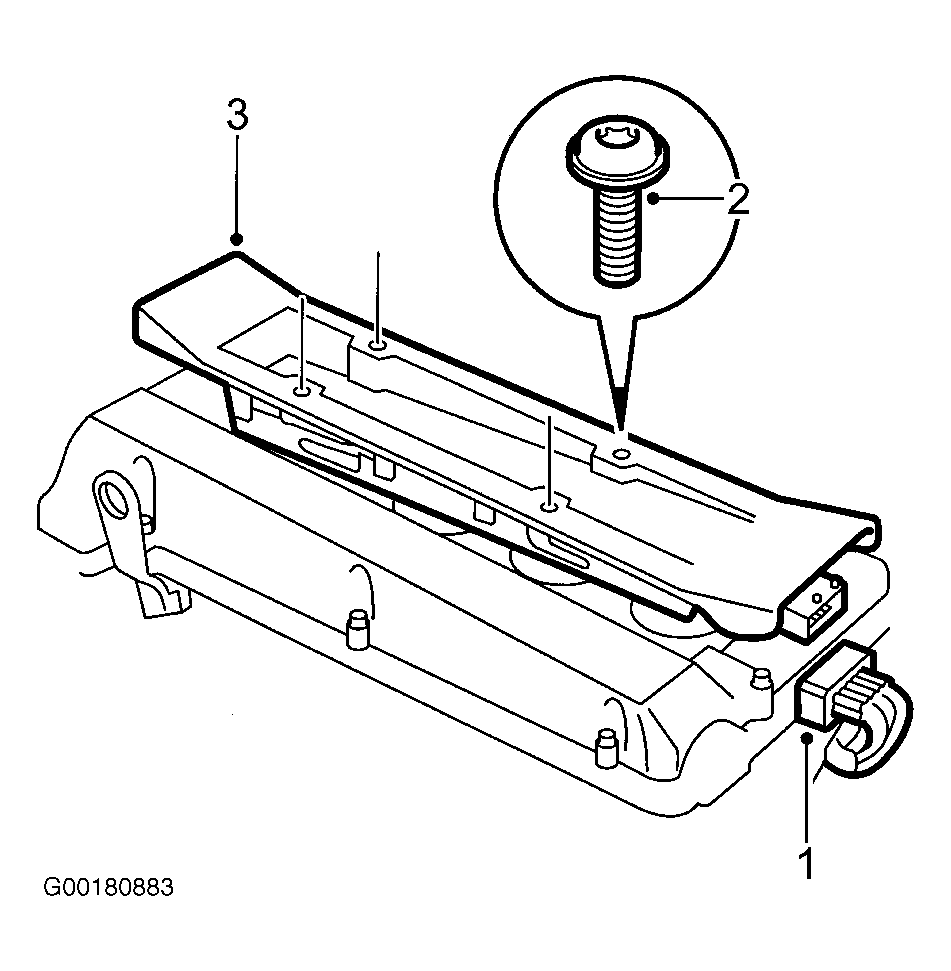

Fig 1: Removing Ignition Discharge Module (4-Cyl)
G00180883Courtesy of SAAB-SCANIA OF AMERICA, INC.
