DTC P1532: Pedal Position Sensor 1 And 2 Circuit. Control Module Inputs Shorted To Each Other.: Notes

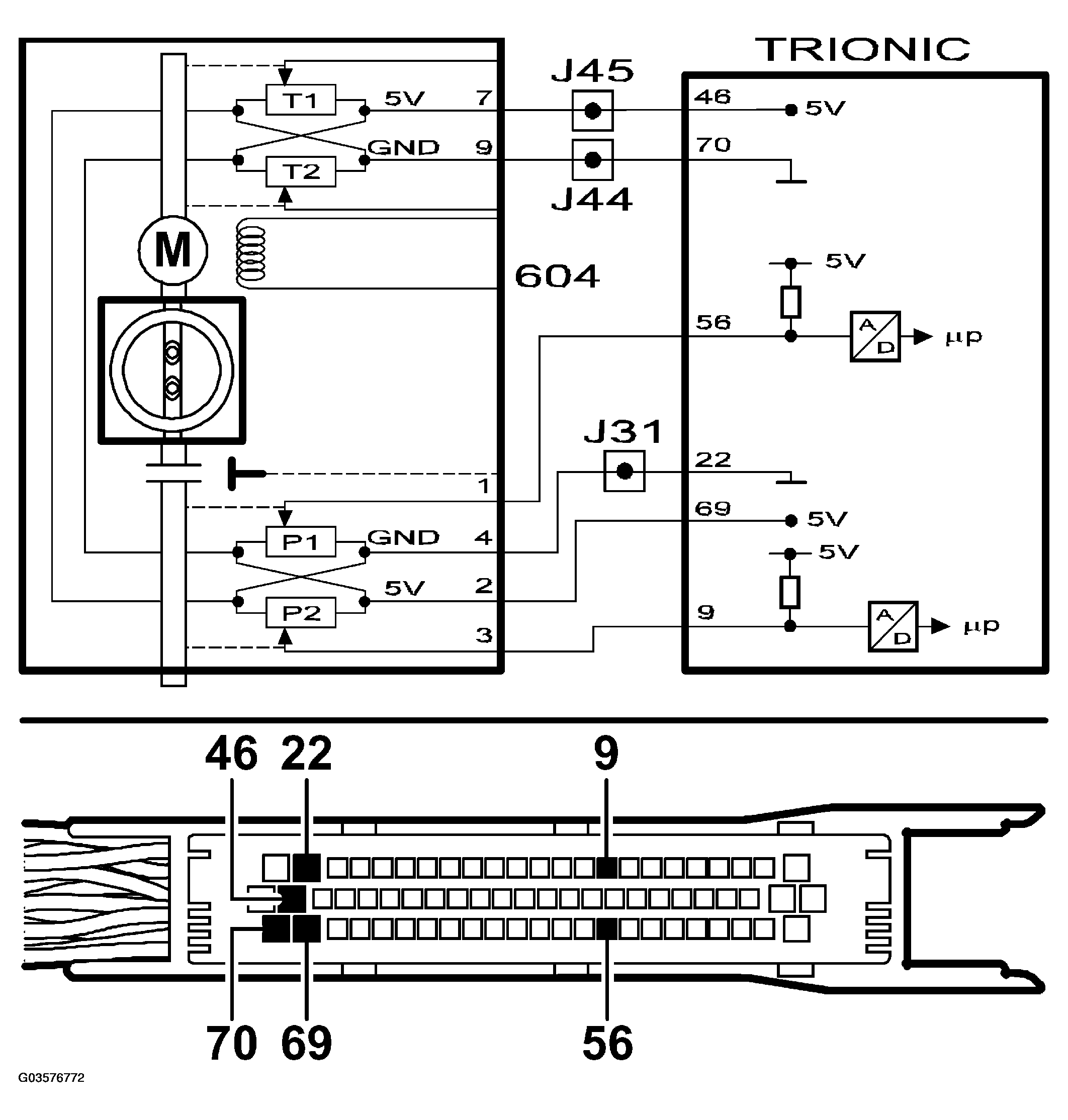

Fig 1: Pedal Position Sensor 1 And 2 Circuit Diagram - Control Module Inputs Shorted To Each Other

Courtesy of SAAB-SCANIA OF AMERICA, INC.
