To remove

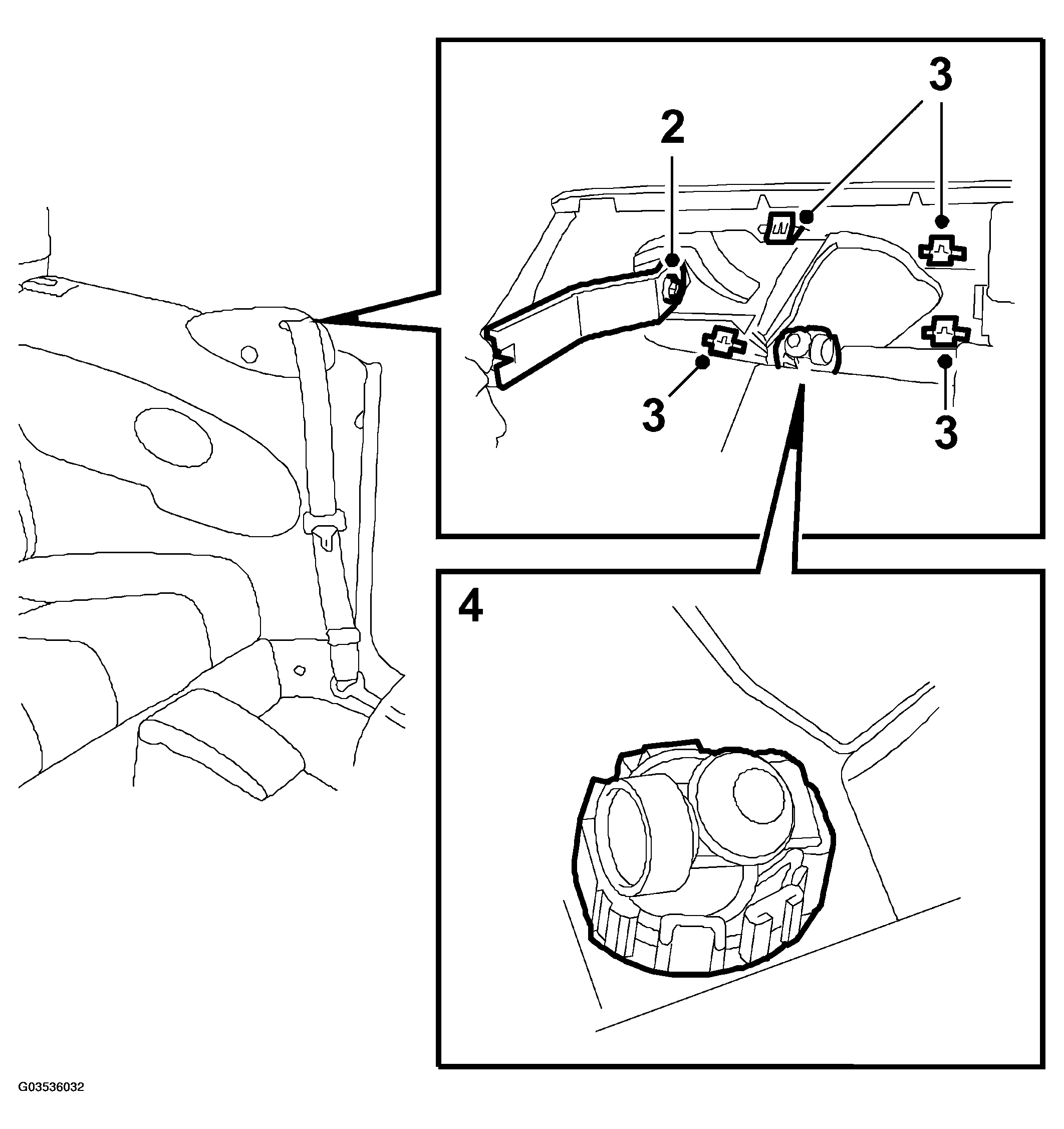

Fig 1: Illustration For Step 2-4
G03536032Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the rear side trim. See REAR SIDE TRIM, CV .
  2. Remove the bolt that secures the strap guide cover.
  3. Remove the clips securing the strap guide cover and remove it from the trim.
  4. Remove the interior lighting from the strap guide cover.
