Saab
›
2002
›
9-3 SE, 2D Convertible, Automatic
›
Repair and Diagnosis
›
Restraints
›
Restraints Control Systems
›
Seat Belt System
›
Component Location
›
Connector H29-2
Connector H29-2

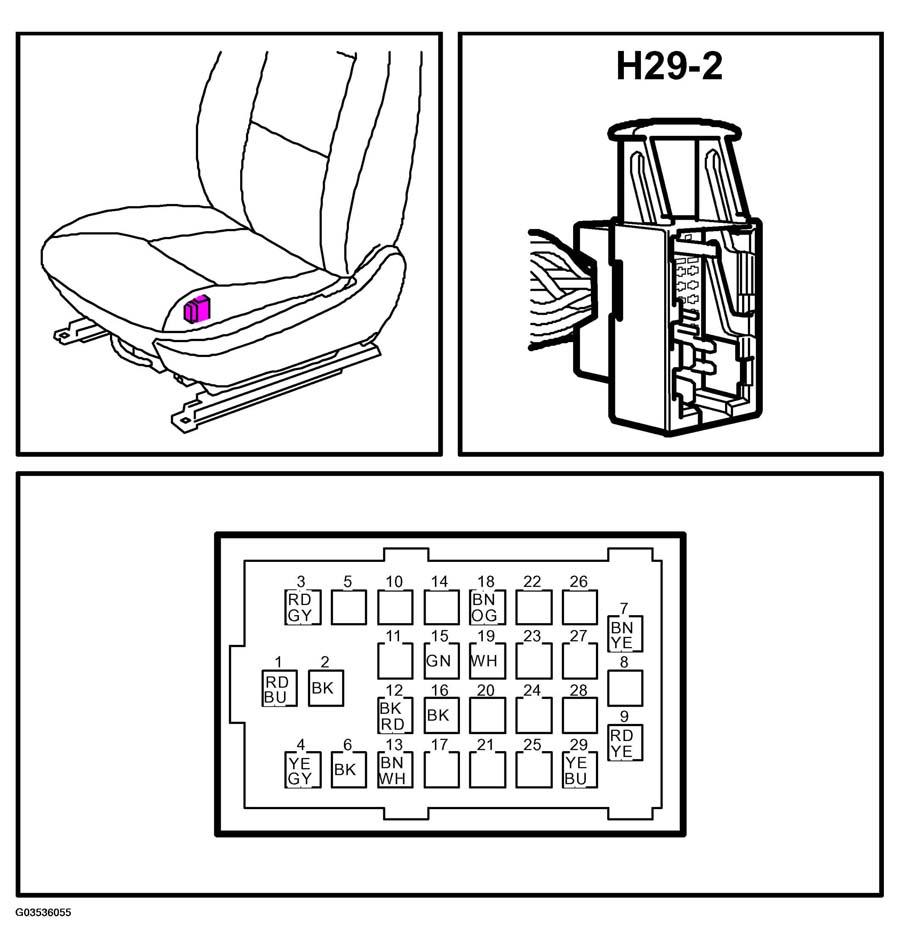

Fig 1: Identifying Connector H29-2 Pinouts And Location
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
