Home › Saab › 2002 › 9-3 SE, 2D Convertible, Automatic › Repair and Diagnosis › Restraints › Restraints Control Systems › Seat Belt System › Component Location › Control module, TWICE (632)

Control module, TWICE (632)

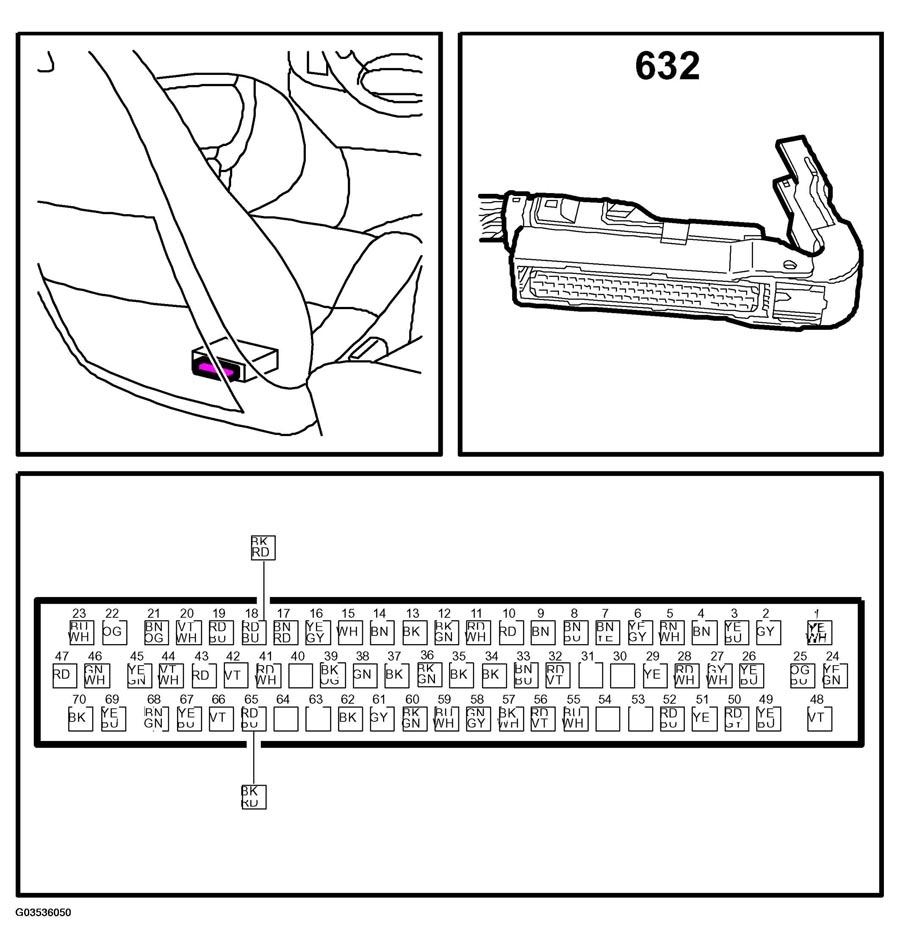

Fig 1: Identifying Control Module Pinouts And Location TWICE
G03536050Courtesy of SAAB-SCANIA OF AMERICA, INC.
