To remove

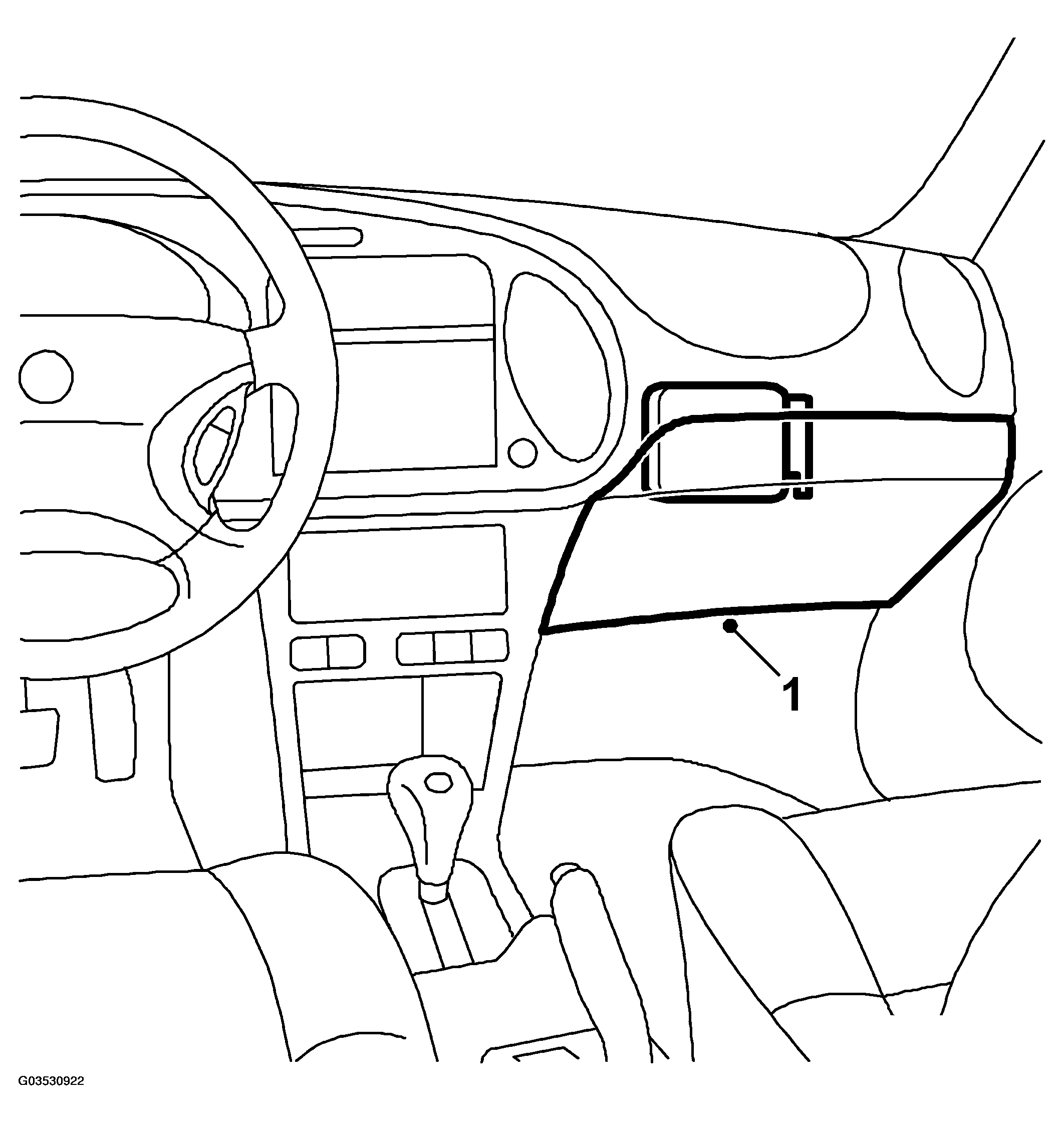

Remove the glove box.

Fig 1: Illustration For Step 1

G03530922

Courtesy of SAAB-SCANIA OF AMERICA, INC.

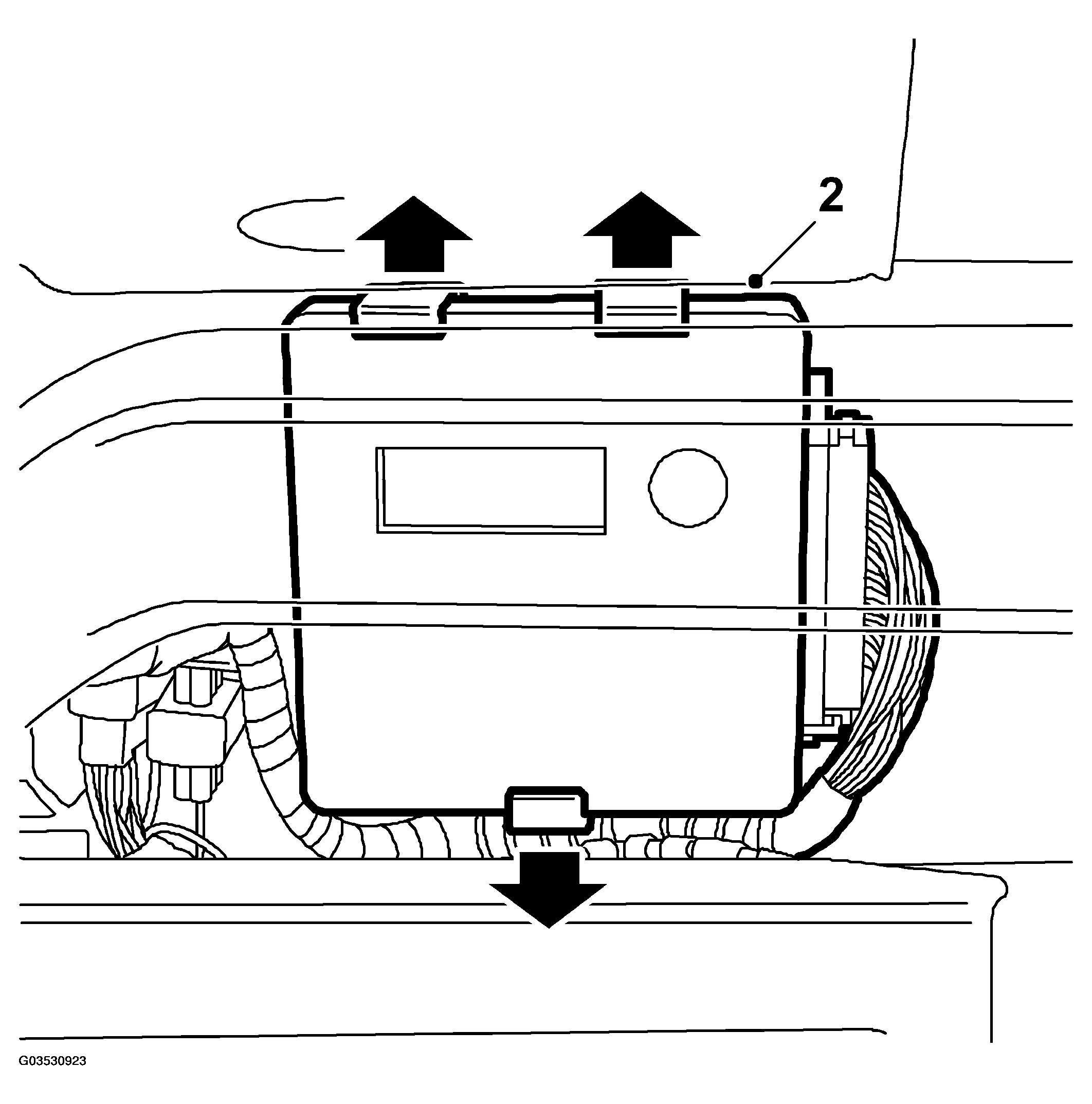

Remove the control module by releasing the catches and unplugging the connector.

Fig 2: Illustration For Step 2
Courtesy of SAAB-SCANIA OF AMERICA, INC.

IMPORTANT: ESD-SENSITIVE COMPONENT Ground yourself by touching the car body or engine before unplugging or plugging in the component. Never touch the connector pins . Prior to changing a control module refer to BEFORE CHANGING A CONTROL MODULE .
