Automatic Transmission
›
Components Location
›
Connector H16-3
Connector H16-3

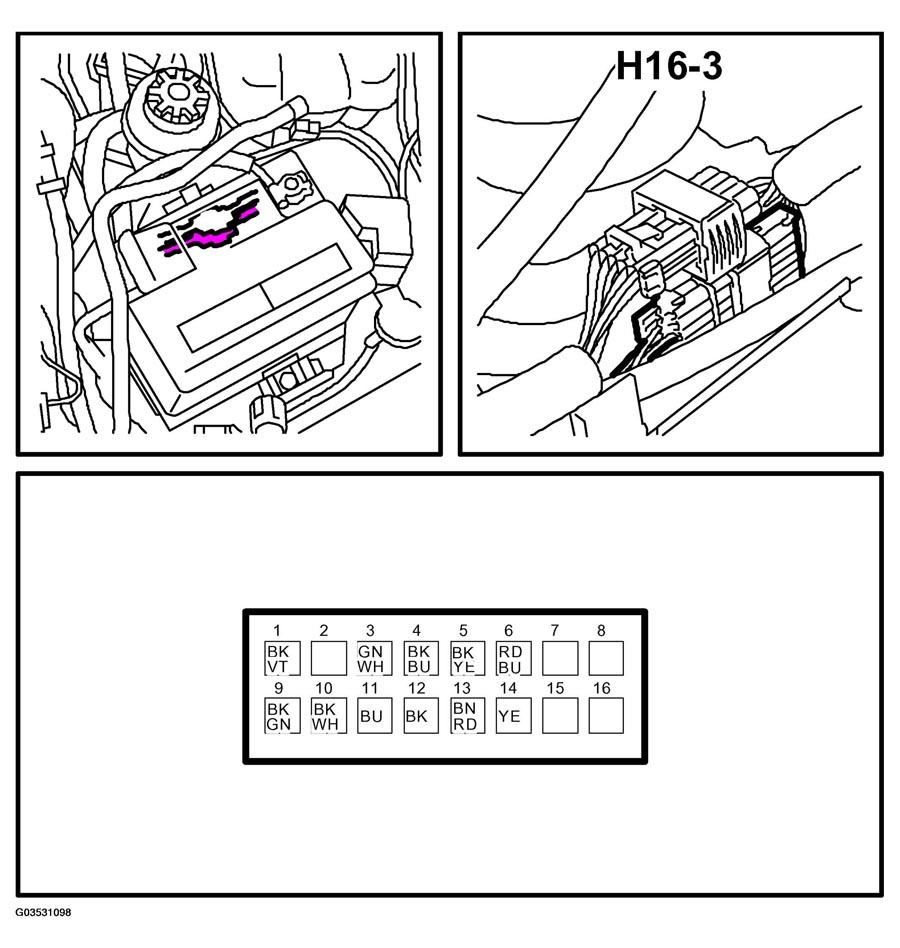

Fig 1: Identifying H16-3 Connector Pin-Outs
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
