Control module ground: Notes

The control module is grounded through pin 31 and pin 32 to grounding point G38.

The grounding points are connected internally.

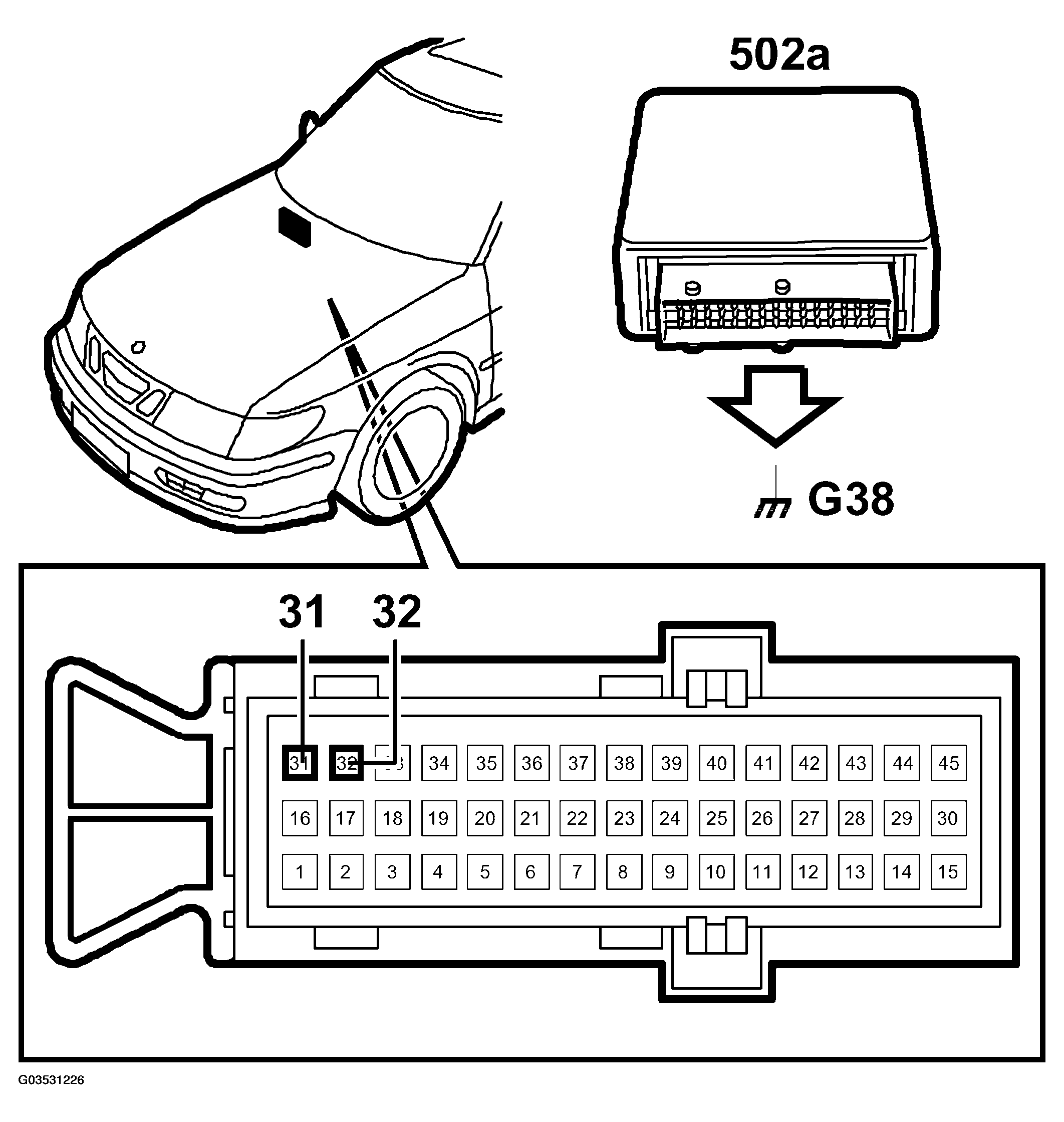

Fig 1: Locating Control Module Grounding Point G38

Courtesy of SAAB-SCANIA OF AMERICA, INC.

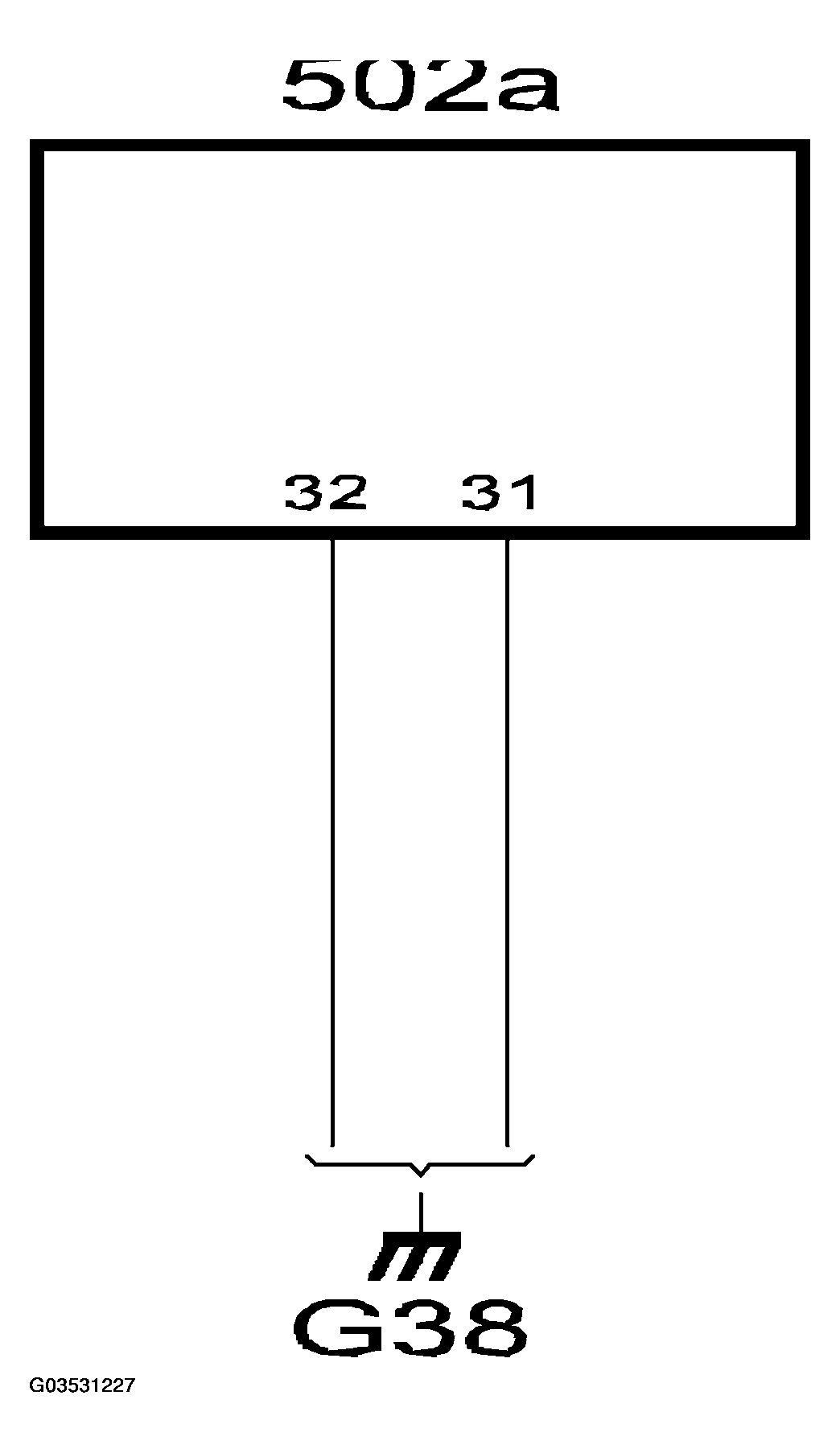

Fig 2: Control Module Grounding Connection Diagram (G38)

Courtesy of SAAB-SCANIA OF AMERICA, INC.
