Removal - Rear (V6)

Remove the engine cover.
Unplug the connector to the pressure sensor on the intake manifold. See Fig 1 .
Remove the ignition discharge module. See Fig 2 .
Unplug the ignition discharge module connector.

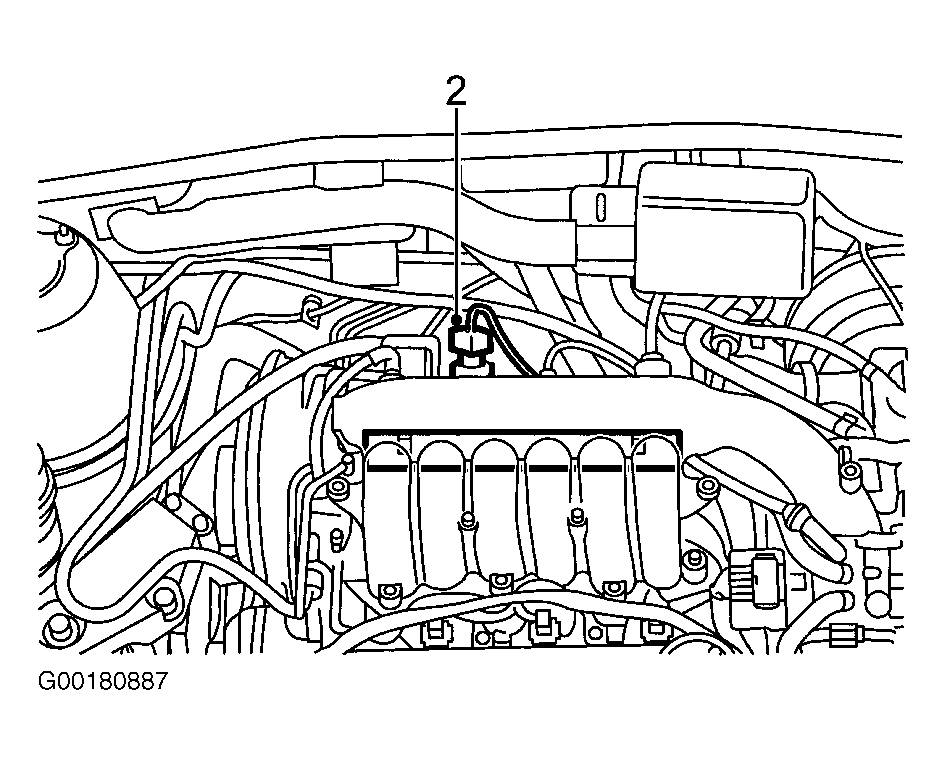

Fig 1: Detaching Pressure Sensor from Intake Manifold (V6)

G00180887

Courtesy of SAAB-SCANIA OF AMERICA, INC.

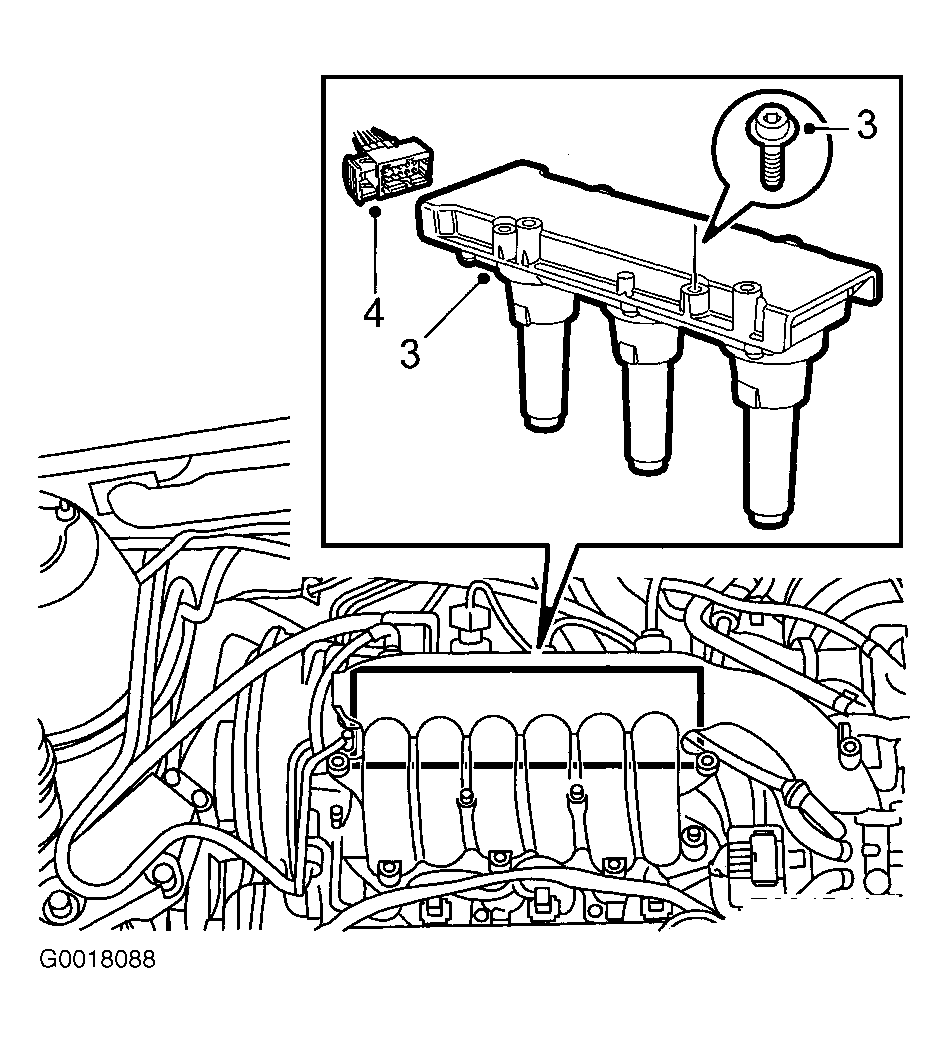

Fig 2: Removing Rear Ignition Discharge Module (V6)

G00180888

Courtesy of SAAB-SCANIA OF AMERICA, INC.
