Grounding point G2: Notes

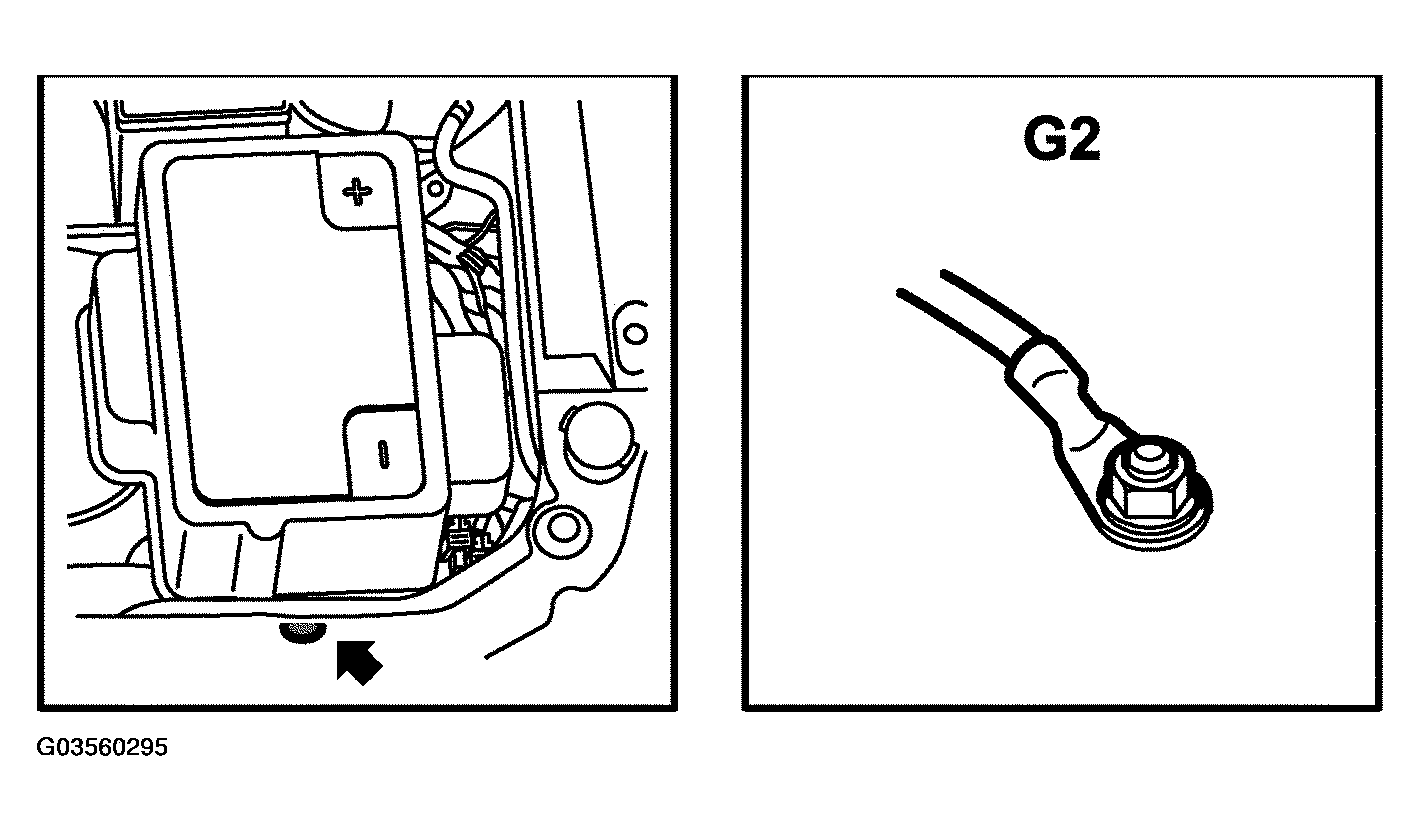

Fig 1: Identifying Grounding Point G2

Courtesy of SAAB-SCANIA OF AMERICA, INC.

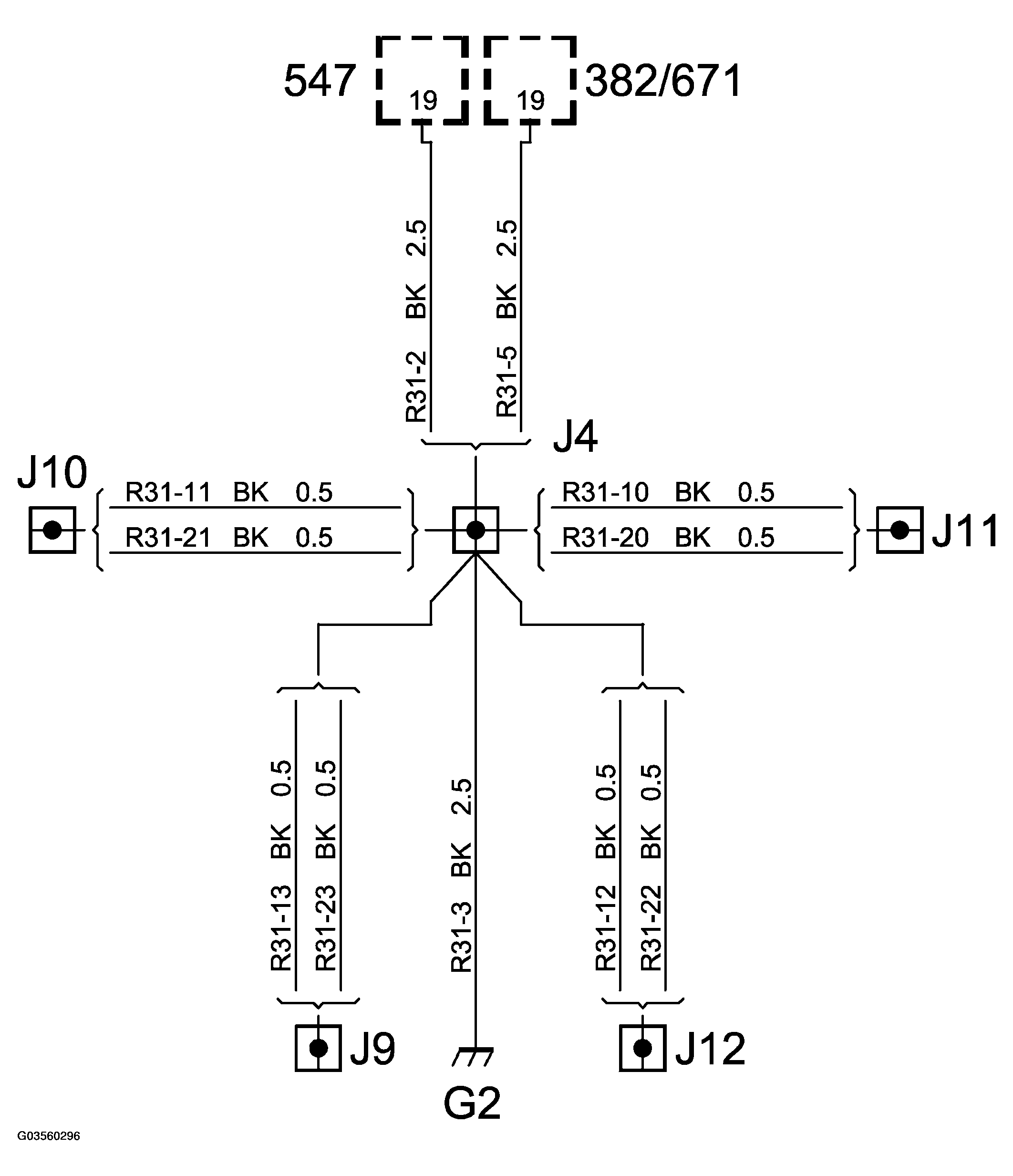

Fig 2: Grounding Point G2 Component Connection Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Left-hand structural member behind headlamp (battery ground).
