Control module bus outputs

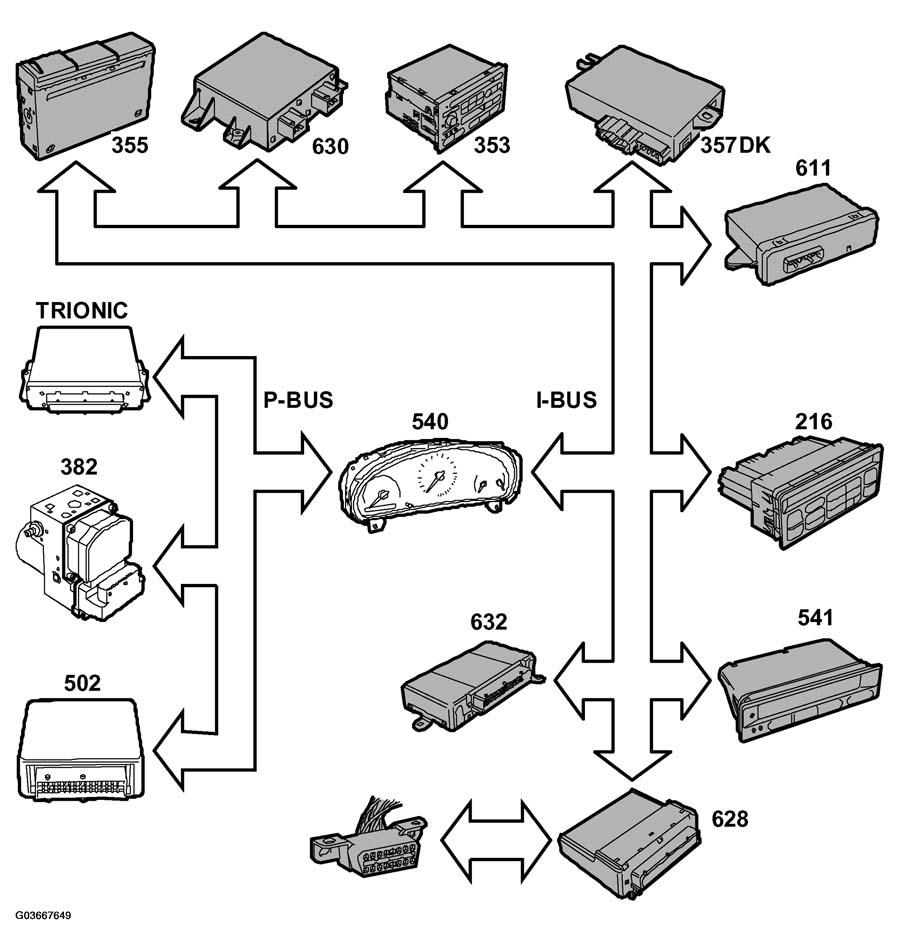

Fig 1: Identifying Control Module Bus Outputs

Courtesy of SAAB-SCANIA OF AMERICA, INC.

• Indicator lamp TCS OFF
• ABS warning lamp
• TCS indicator lamp
• Wheel speed for all wheels
• Request for engine torque
• Signal to odometer

See also SYSTEM WIRING DIAGRAMS , BUS AND DIAGNOSTICS COMMUNICATION .
