Injectors, flow capacity: V6

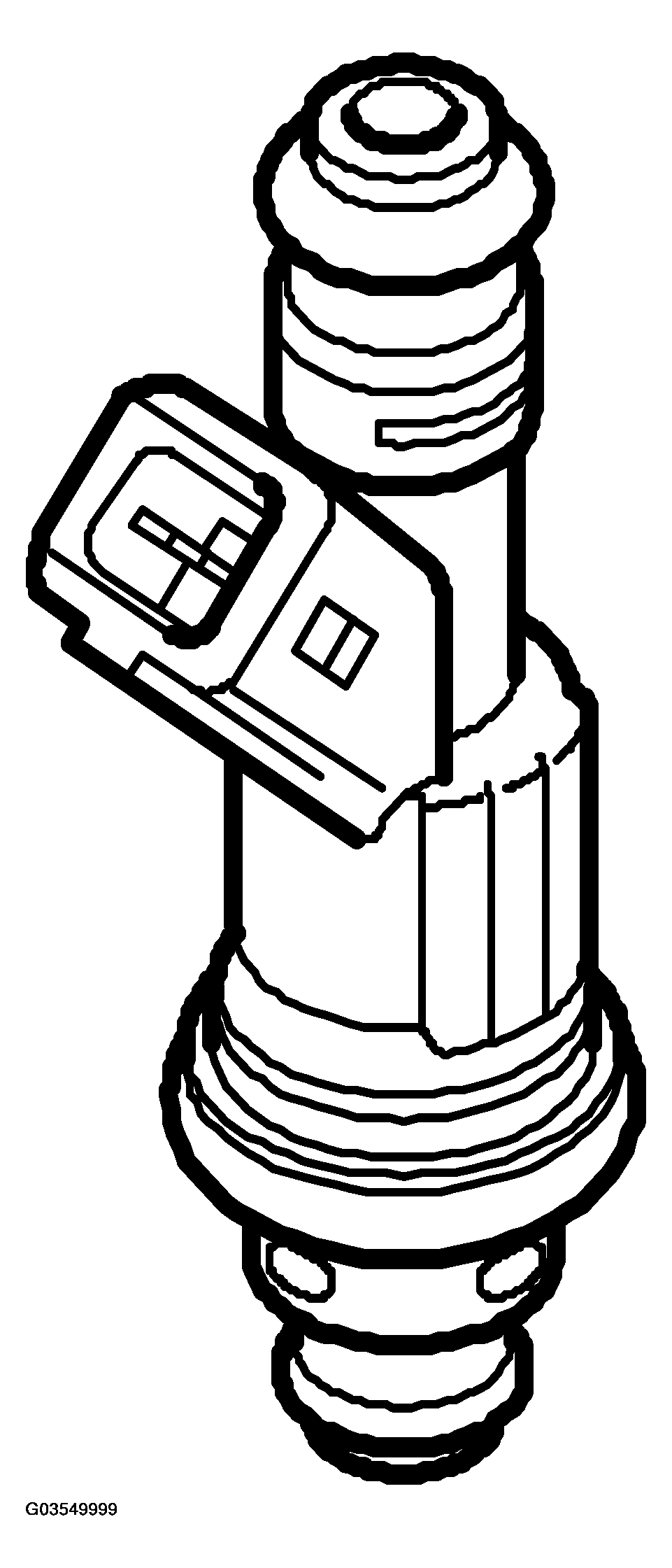

Fig 1: Identifying Injectors (V6)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

FLOW CAPACITY (INJECTORS (V6))

B308E
Flow capacity	ml/30s	109 +/- 4
Maximum permissible difference between injectors.	ml	8
