Grounding point G43: Notes

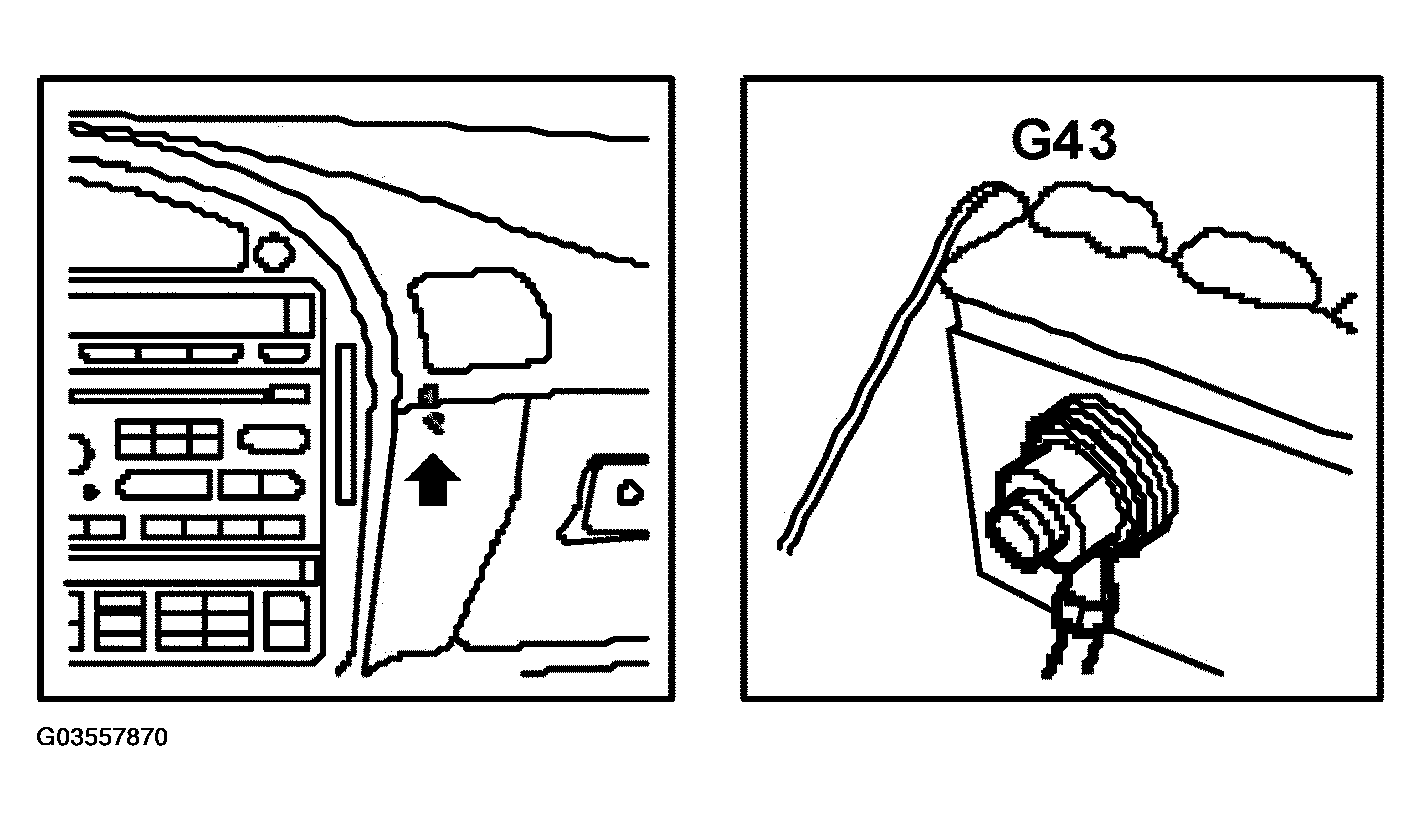

Fig 1: Locating Grounding Point G43

Courtesy of SAAB-SCANIA OF AMERICA, INC.

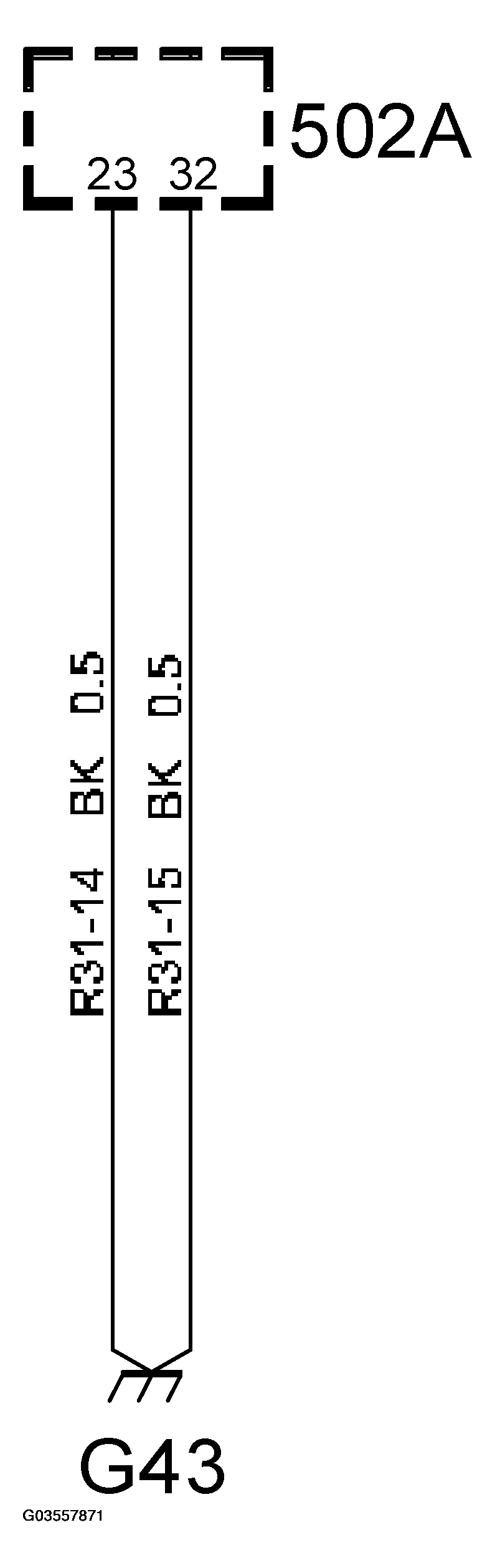

Fig 2: Grounding Point G43 Connection Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  Right-hand grounding bolt in the center of the knee member (inside the cabin).
