Control module bus inputs

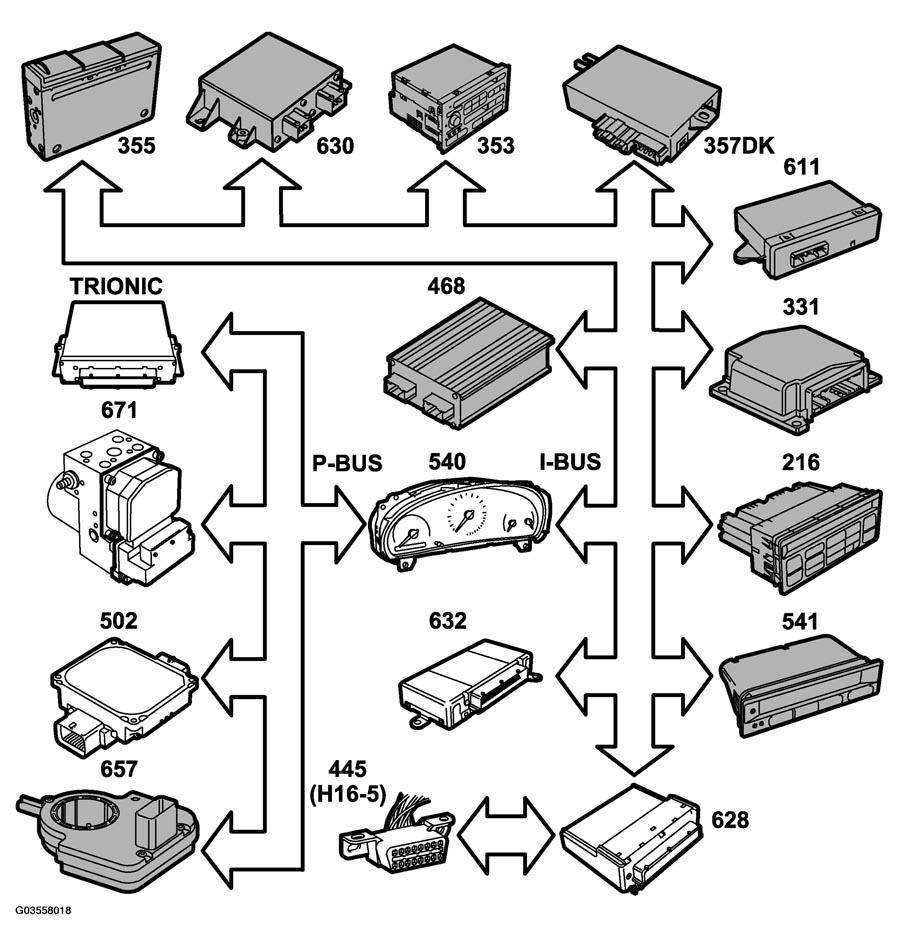

Fig 1: Identifying Control Module Bus Inputs Components

G03558018

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Bus communication.
Accelerator position (Bus from Trionic).
Engine torque (Bus from Trionic).
Kickdown (Bus from Trionic).
Engine speed (Bus from Trionic).
Brake lights (Bus from TWICE) (632).
