Home › Saab › 2003 › 9-3 Arc, Automatic › Repair and Diagnosis › Engine Performance › System › TRIONIC T7 Fuel Control System › Component Location › Crimp J185, engine harness T7

Crimp J185, engine harness T7

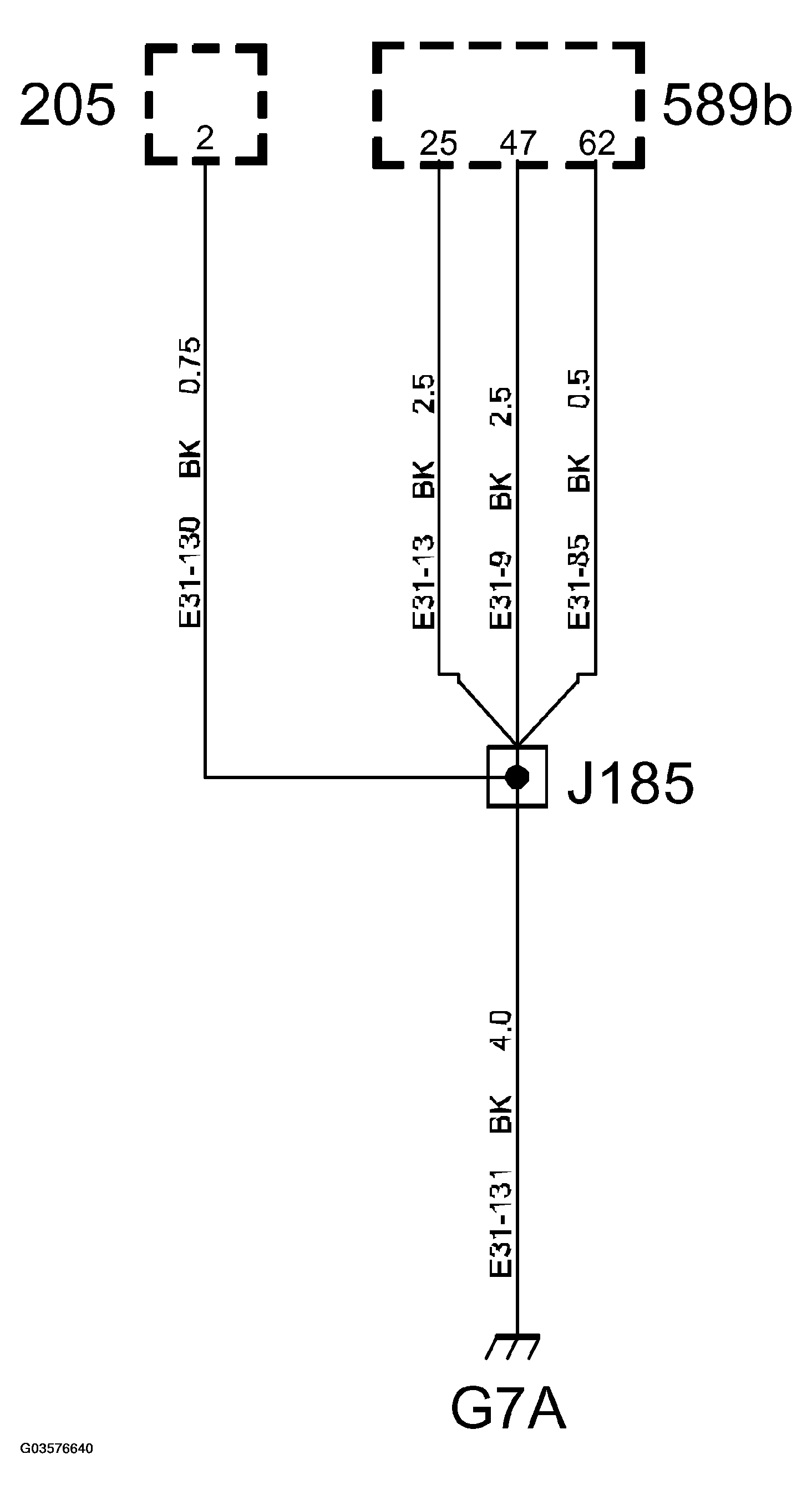

Fig 1: Identifying Crimp J185 Engine Harness T7
G03576640Courtesy of SAAB-SCANIA OF AMERICA, INC.
