TRIONIC T7 Fuel Control System
›
Fault Diagnosis Fault Codes
›
DTC P1451: EVAP Tank Pressure Sensor. Performance Problem.
›
Notes
DTC P1451: EVAP Tank Pressure Sensor. Performance Problem.: Notes

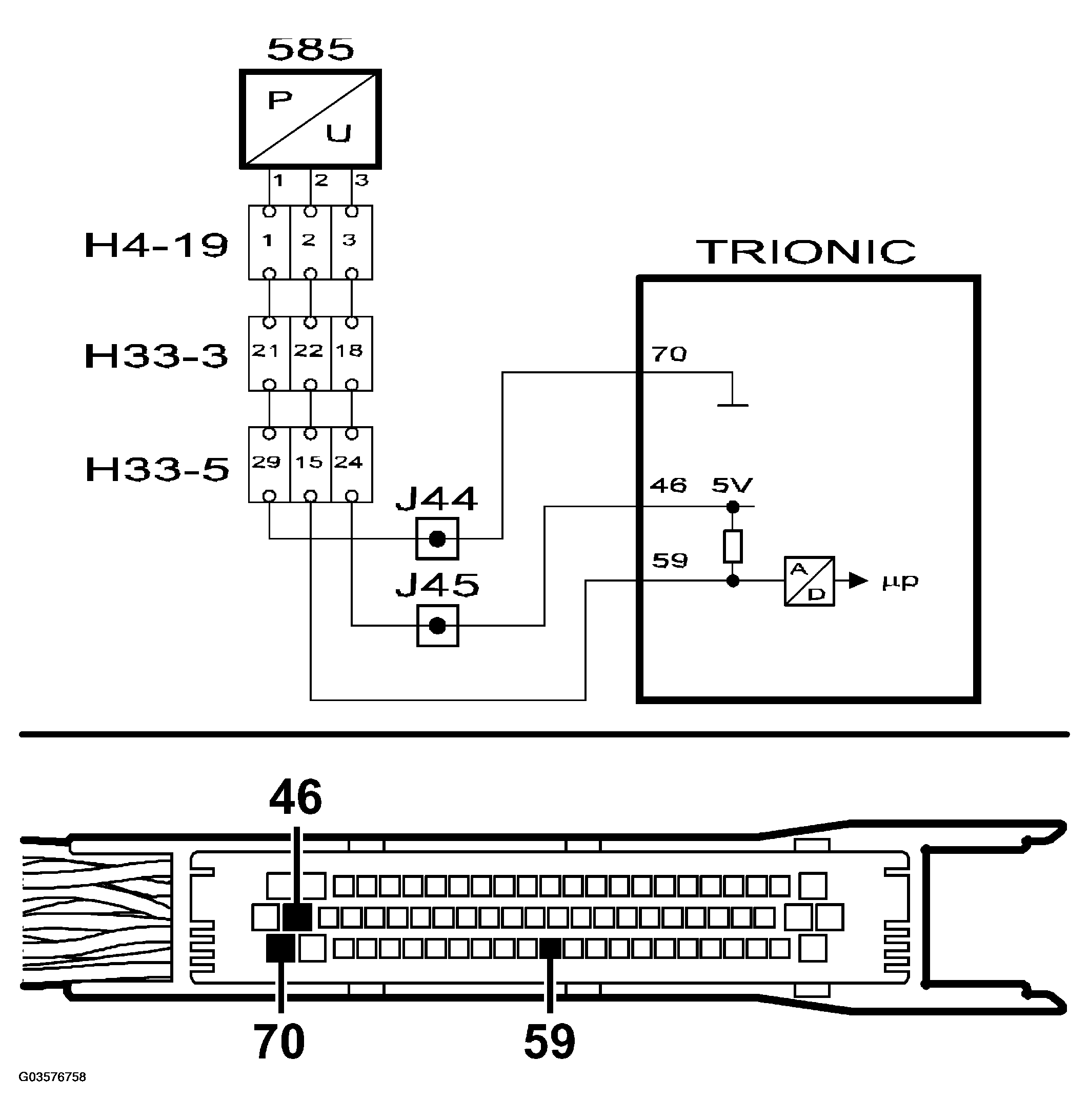

Fig 1: Circuit Diagram - EVAP Tank Pressure Sensor Performance Problem
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
