Home › Saab › 2003 › 9-3 Arc, Standard › Repair and Diagnosis › Engine Performance › System › TRIONIC T8 Fuel Control System (Late; 9440) › Adjustment/Replacement › Intake manifold sensor (688) › To remove

To remove

  1. Unplug the sensor connector.

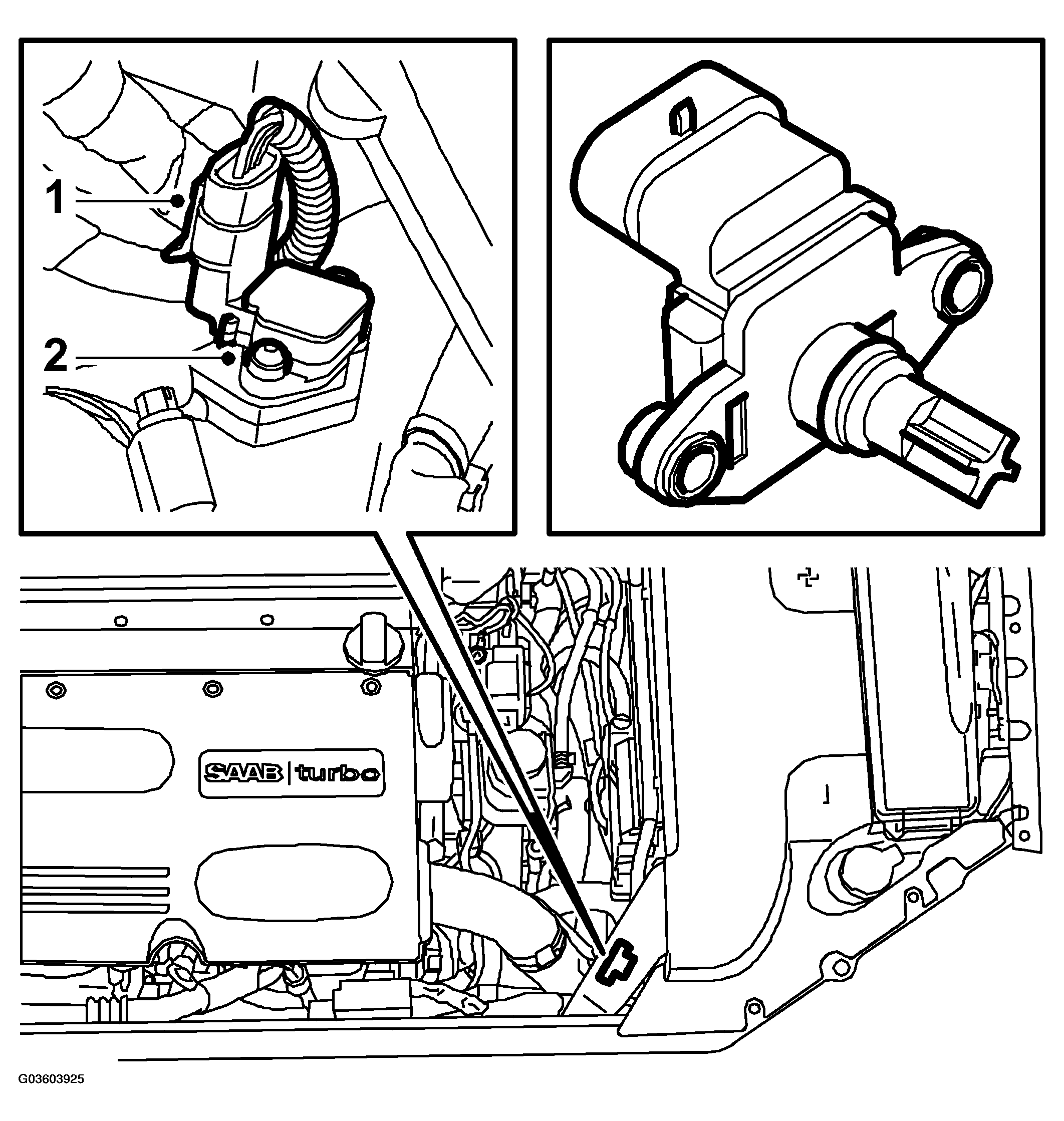

    Fig 1: Illustration For Steps 1-2
    G03603925Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Remove the sensor.
