TRIONIC T8 Fuel Control System (Late; 9440)
›
Component Location
›
Ionization Detection Module (740)
Ionization Detection Module (740)
Location
: on the engine's short left side by the vacuum pump

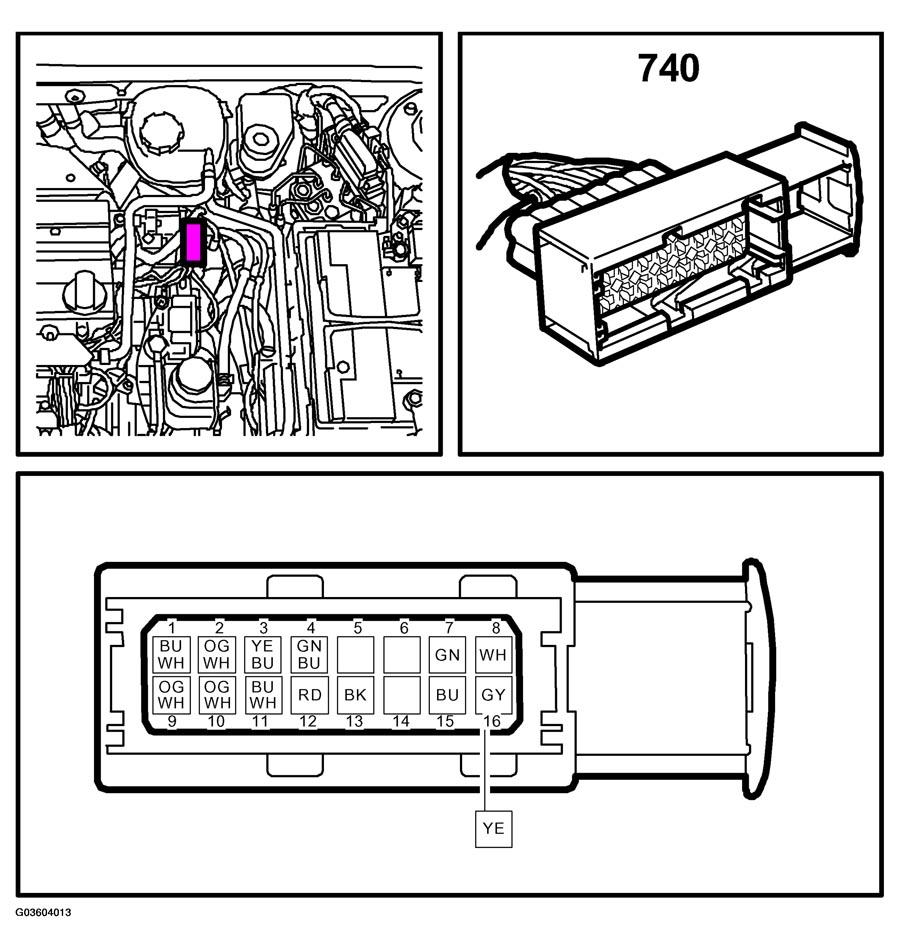

Fig 1: Locating & Identifying Ionization Detection Module (740)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
