Relay, A/C compressor (156)

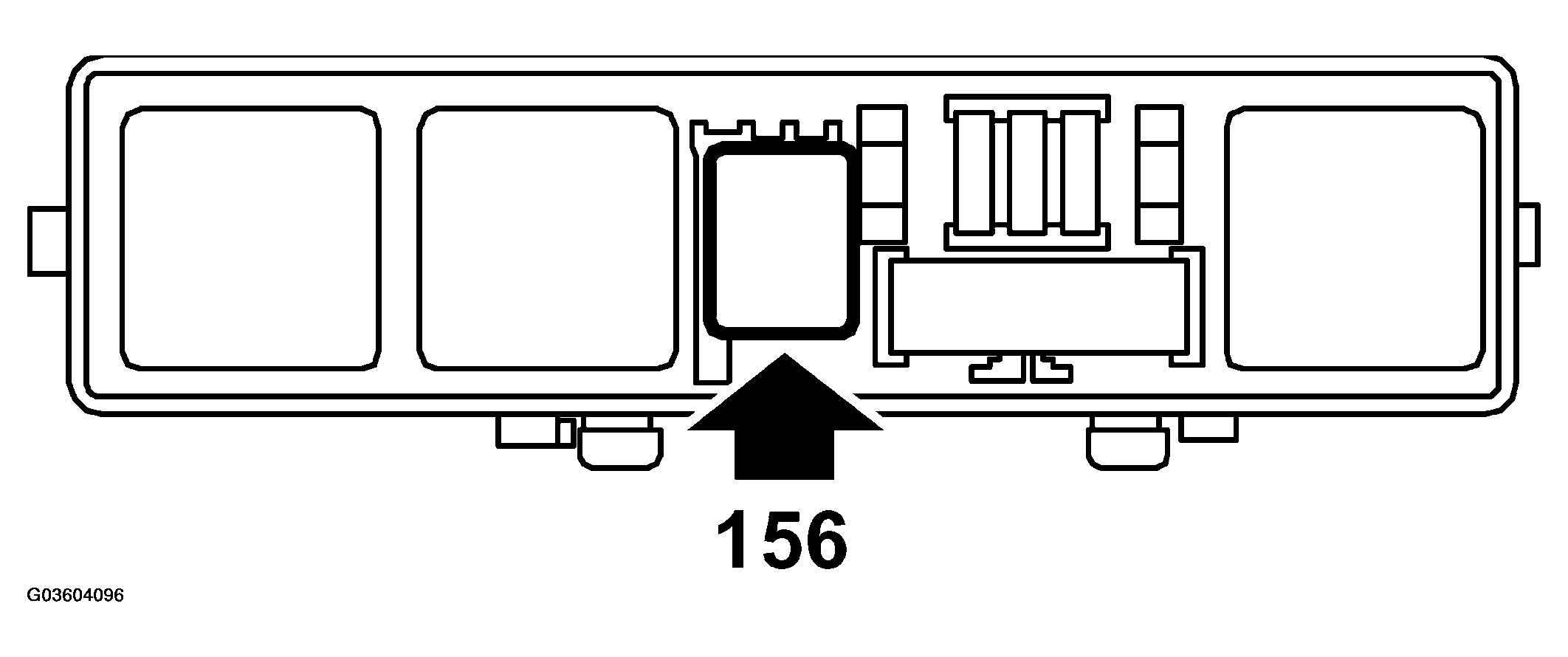

Fig 1: Identifying A/C Compressor Relay
G03604096Courtesy of SAAB-SCANIA OF AMERICA, INC.
A/C COMPRESSOR RELAY TECHNICAL DATA

Resistance, winding at 20°C (68°F) 85+/-5 Ohm
Nominal control voltage 12 V
Nominal current 30 A
