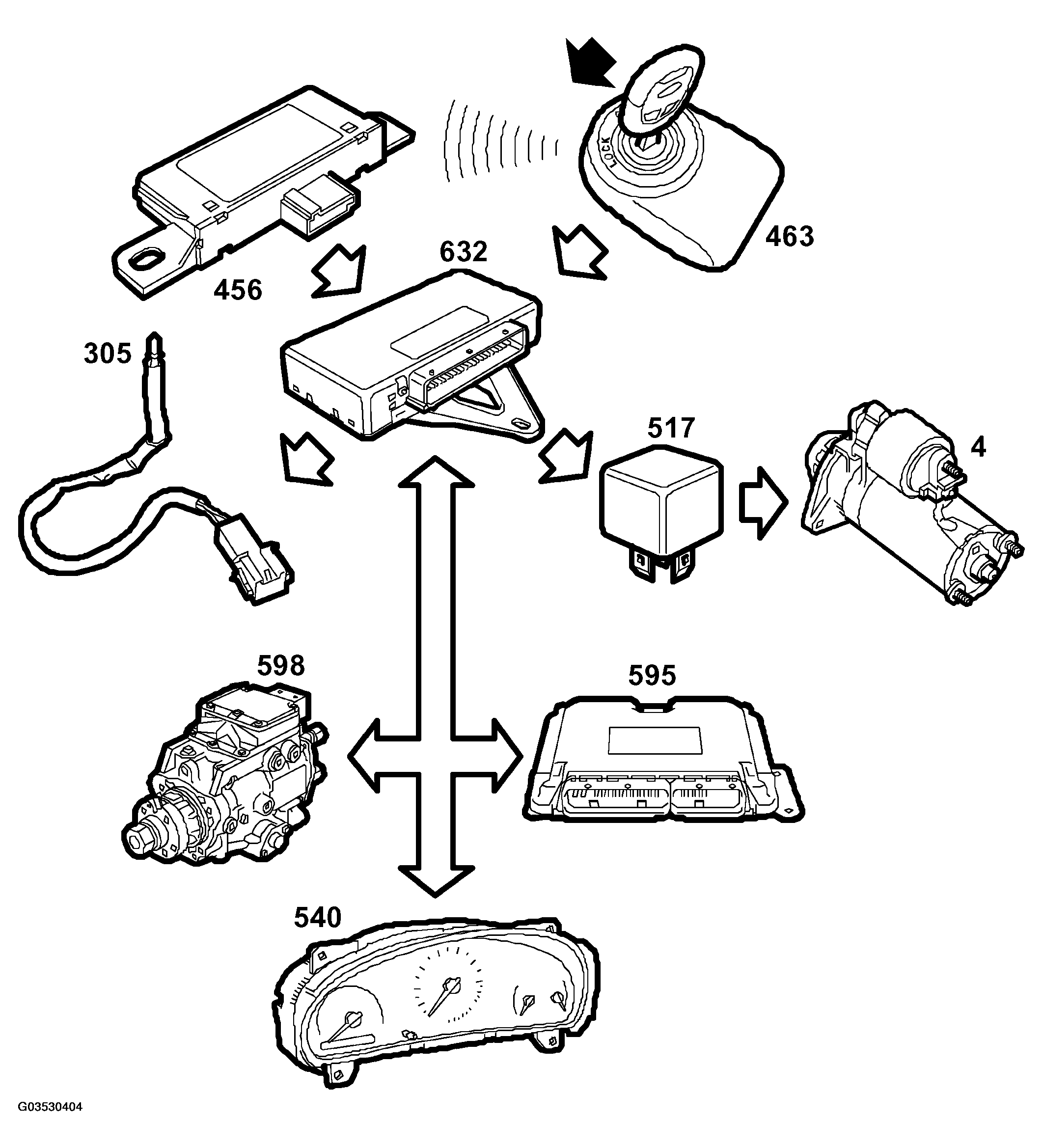

System Overview, Immobilization Diesel Engine
WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
- Control module, TWICE (632)
- Car key
- Antenna unit, immobilizer (463)
- Antenna, remote control, central locking system (456)
- LED, anti-theft alarm (305)
- Main instrument unit (540)
- Engine management system, diesel EDC15/PSG16 (595)
- Diesel pump EDC15 (598)
- Relay, starter relay (517)
- Starter motor (4)
