Control Module (Late; 9440)
›
Technical Description
›
Navigation unit (635)
›
Main purpose
›
Connection
Main purpose: Connection
PINS DESCRIPTION
Pin no.
Signal type
Description
10
+30
20
Ground
4, 5
Microphone
1, 2
GPS or AMPS antenna
1
O-bus
Reception. Own connection
2
O-bus
Transmission. Own connection

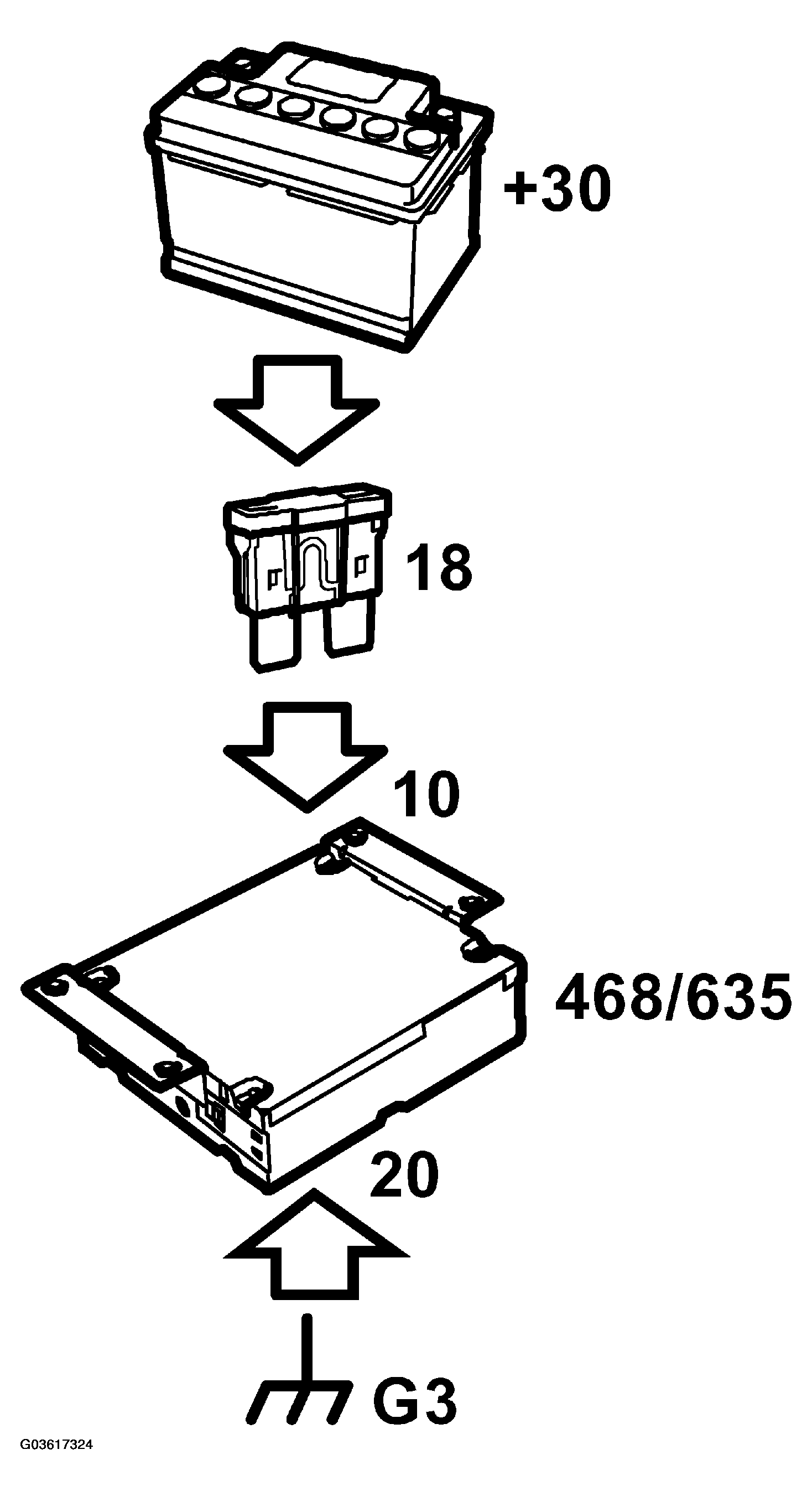

Fig 1: Identifying Fuse Location
Courtesy of SAAB-SCANIA OF AMERICA, INC.

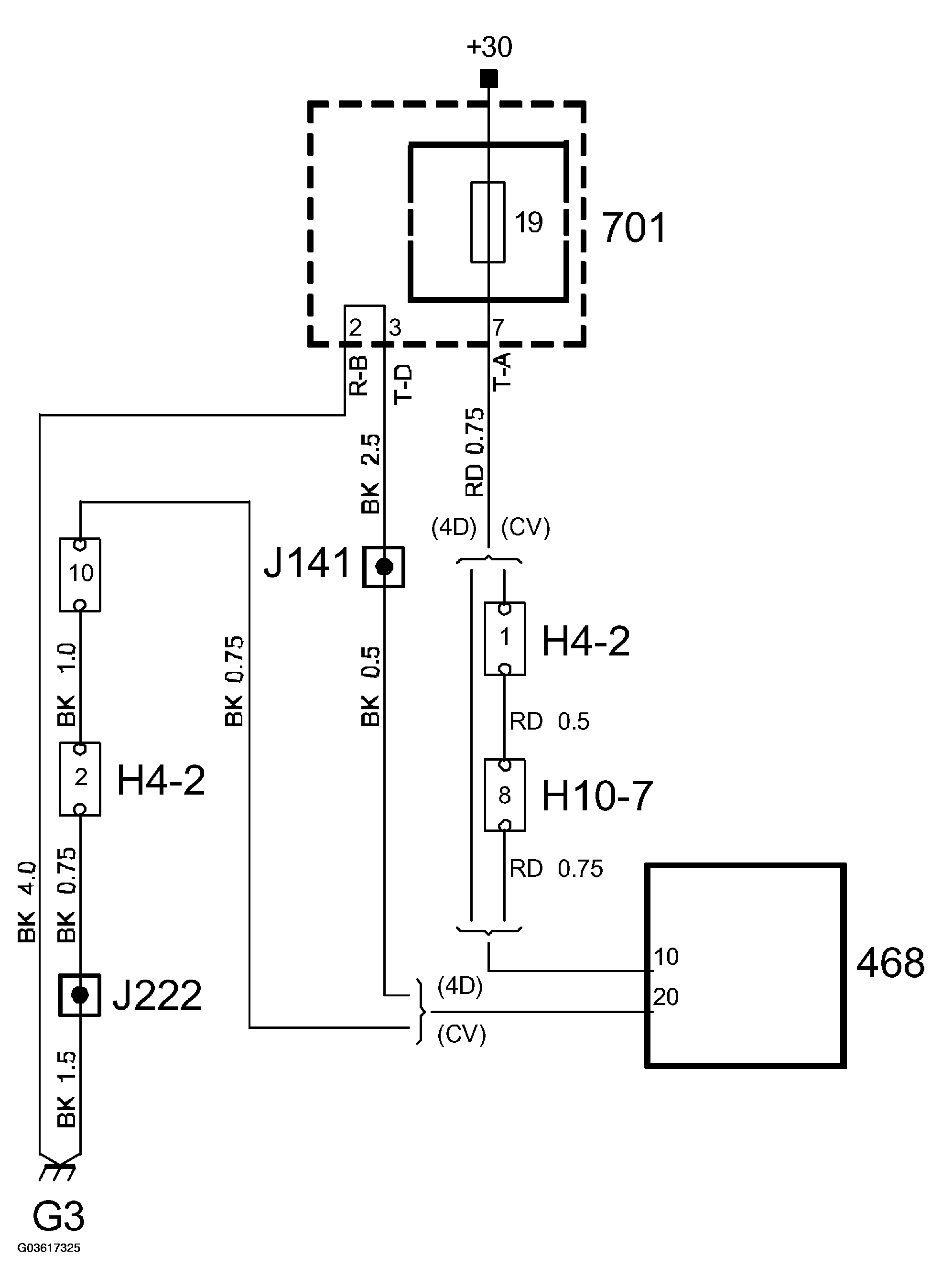

Wiring diagram
Fig 2: Navigation Unit Wiring Diagram
Courtesy of SAAB-SCANIA OF AMERICA, INC.
