TRIONIC T7 Fuel Control System
›
Component Location
›
Main relay, engine management system (229)
Main relay, engine management system (229)

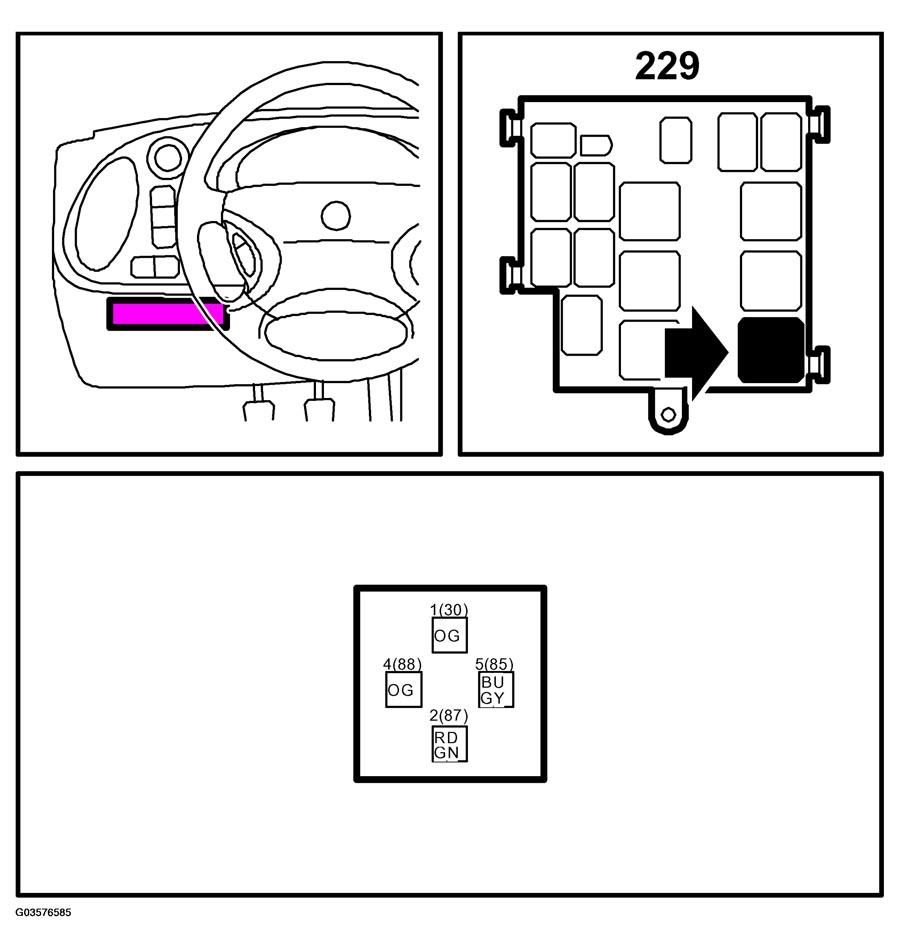

Fig 1: Identifying Main Relay - Connector Pinouts
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
