Crimp J45, petrol engine harness: Notes

Location  : Approx. 270 mm from branching point connector H24-2 towards the engine control module

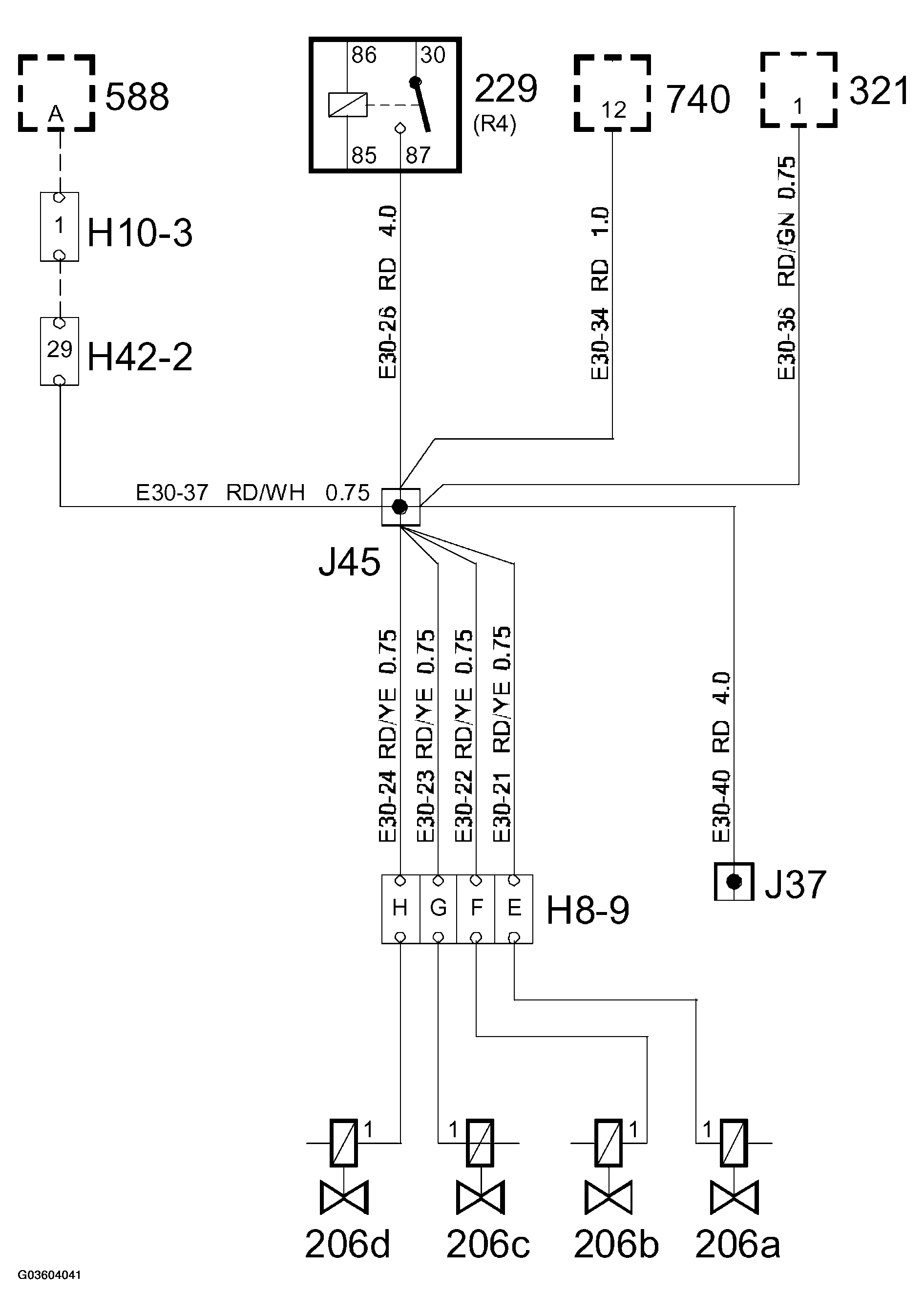

Fig 1: Identifying Crimp J45 And Petrol Engine Harness Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
