Control module: Fitting

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Plug in the connector.
    IMPORTANT: ESD-SENSITIVE COMPONENT
    Ground yourself by touching the car body or engine before unplugging or plugging in the component. Never touch the connector pins  . Prior to changing a control module refer to BEFORE CHANGING A CONTROL MODULE
  2. Fit the control module and tighten the nuts.
  3. Fit the side trim. See FITTING .

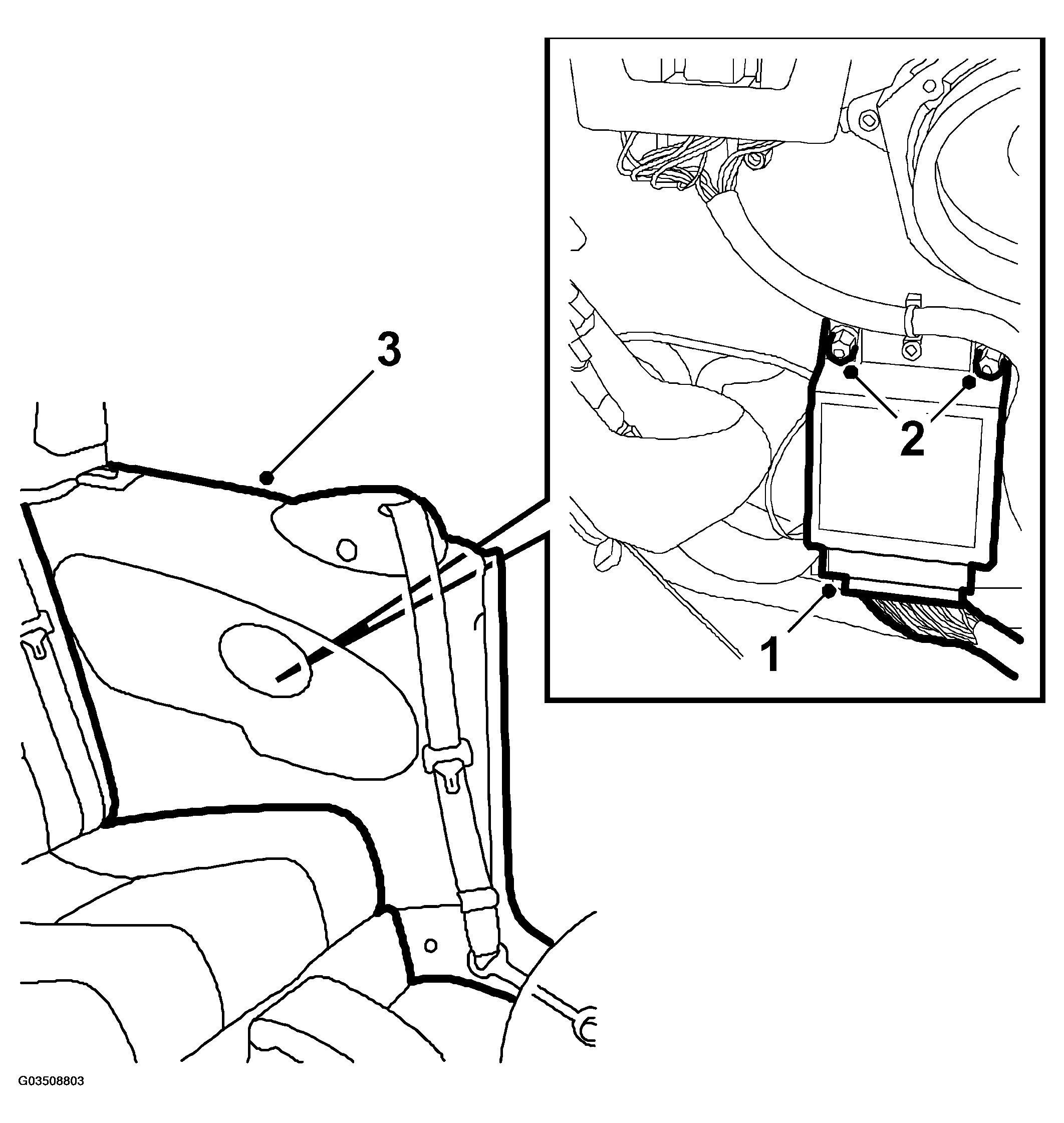

    4. Fig 1: Illustration For Steps 1-3
    G03508803Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Connect the diagnostics tool and erase any diagnostic trouble code.
  5. Run the soft top up and down a few times and check the function.
