Fifth bow latch motor

WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

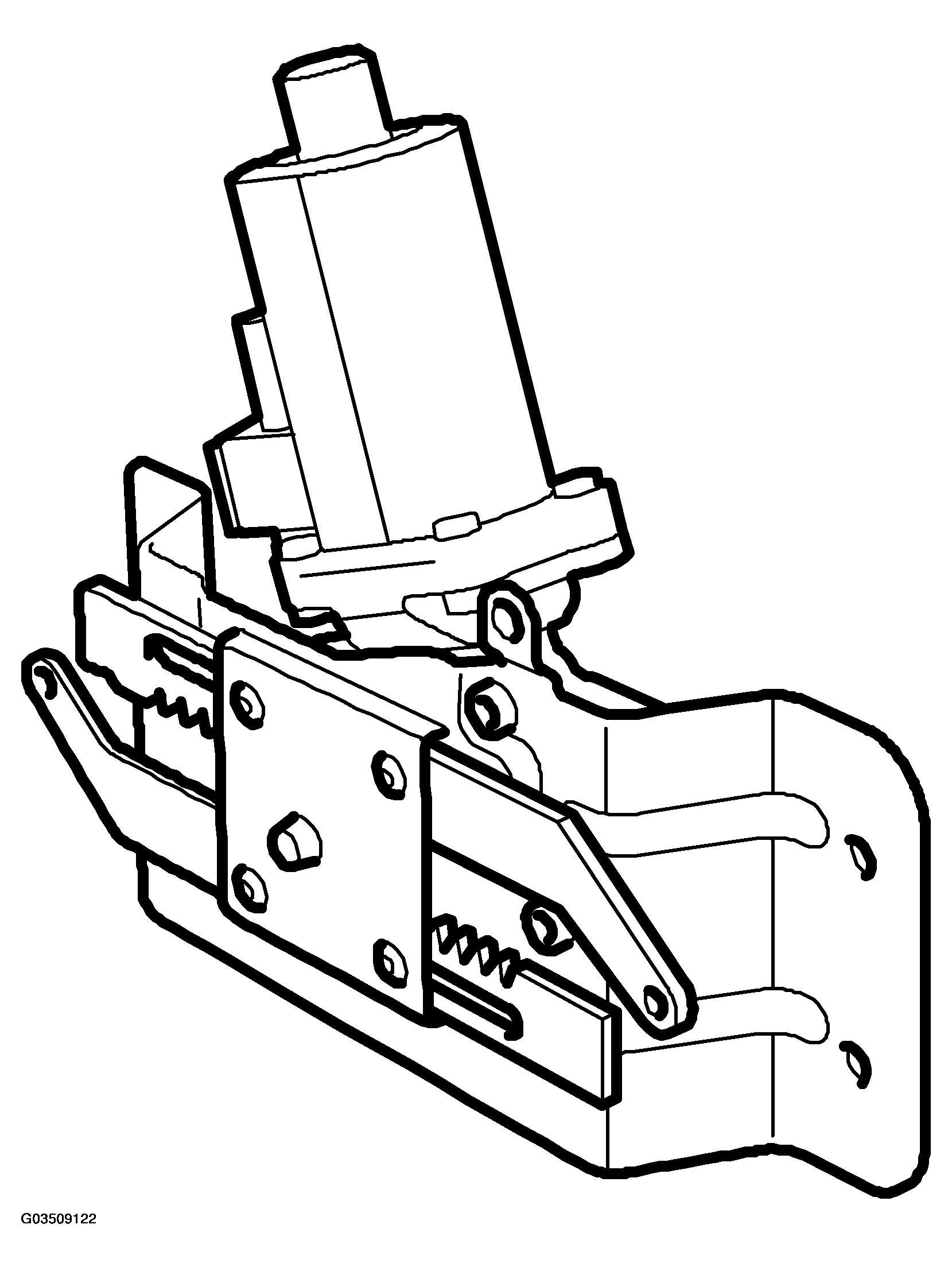

Fig 1: View Of Fifth Bow Latch Motor

Courtesy of SAAB-SCANIA OF AMERICA, INC.

TECHNICAL DATA - FIFTH BOW LATCH MOTOR

Power supply	V	12
Max. current consumption at 12 V	A = 16

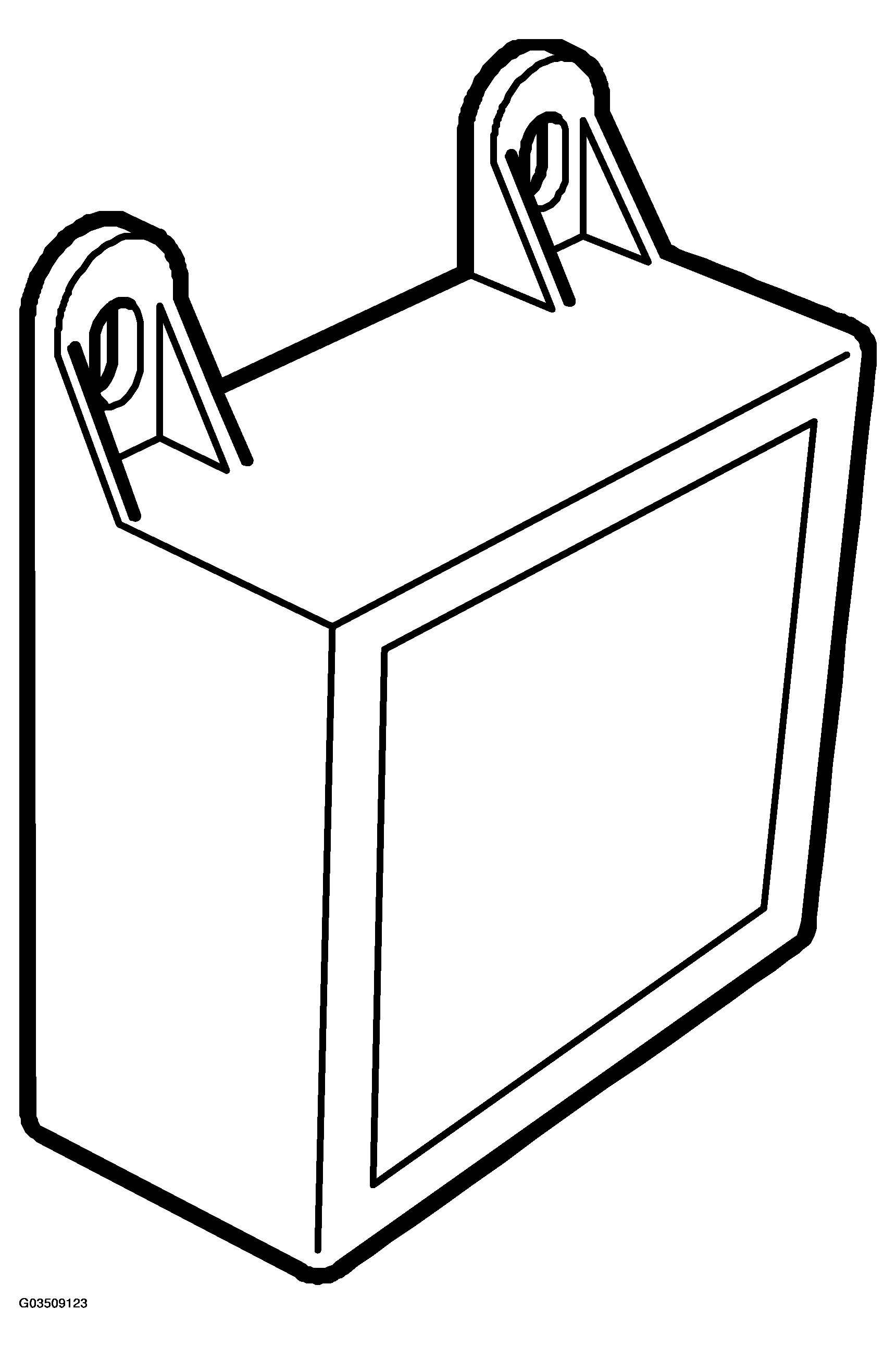

Fig 2: View Of Control Module

Courtesy of SAAB-SCANIA OF AMERICA, INC.
