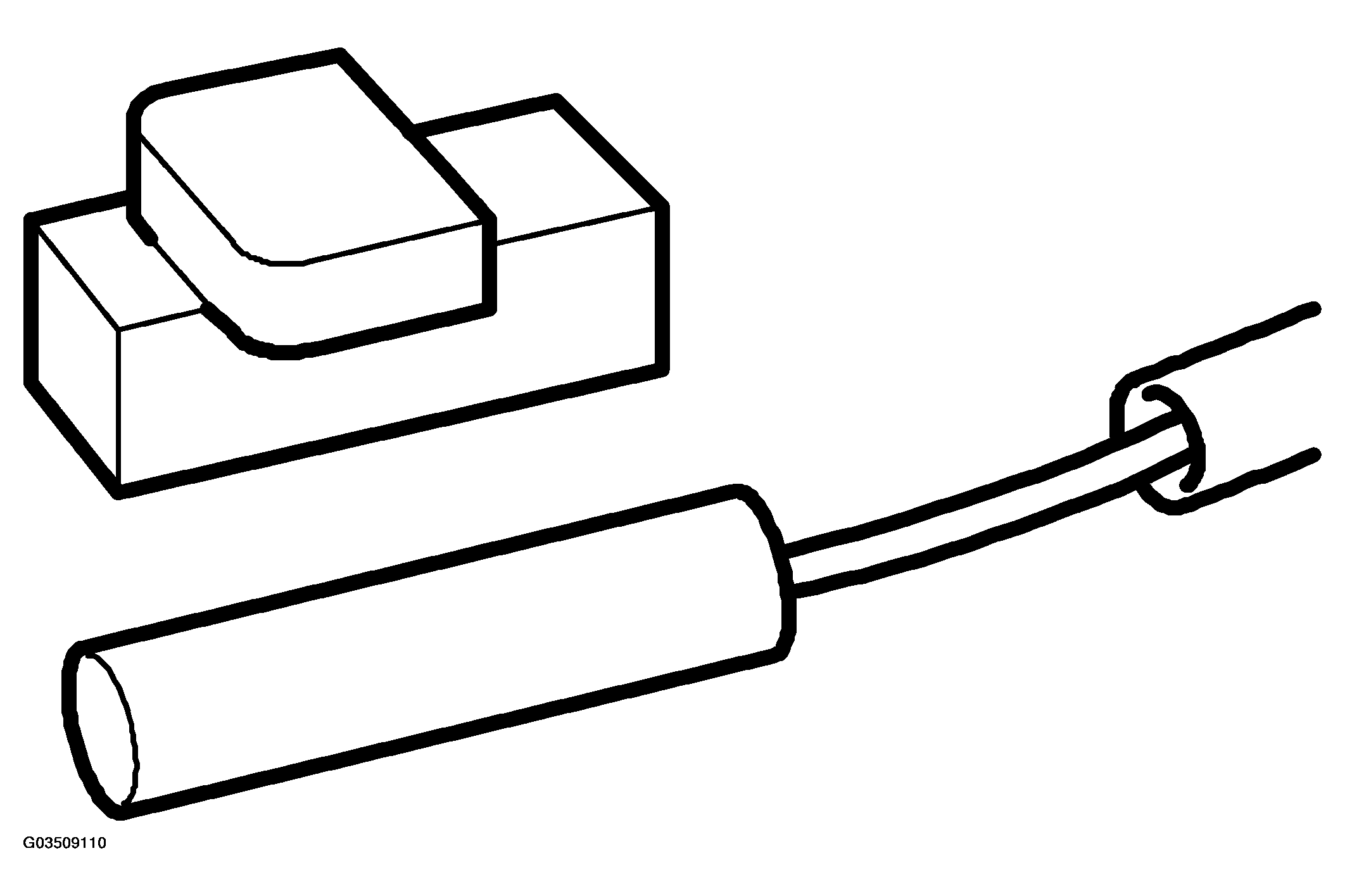

Microswitch, windscreen frame
WARNING: This page is about a different car, the 2001 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of SAAB-SCANIA OF AMERICA, INC. TECHNICAL DATA - WINDSCREEN FRAME MICROSWITCH
| Connected to control module |
pin No. |
3 |
| Ground connection |
pin No. |
2 |
| Switch inactive |
|
open |
| Switch active |
|
closed |
