Microswitch In Luggage Compartment Lock, Disarm Tailgate

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

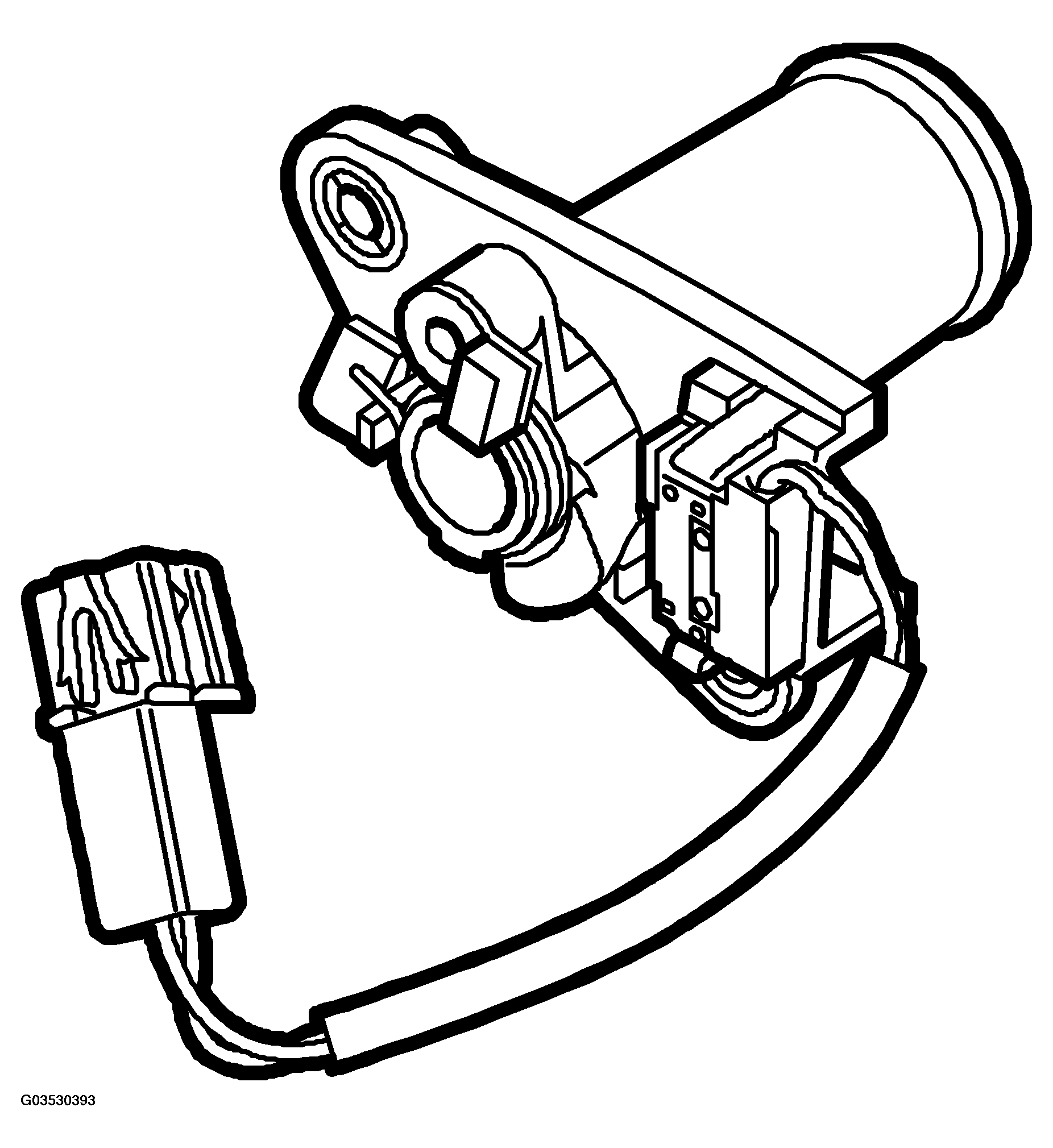

Fig 1: Identifying Microswitch

Courtesy of SAAB-SCANIA OF AMERICA, INC.

MICROSWITCH TECHNICAL DATA

Location	On tailgate lock cylinder
Type	Normally open
Power supply PWM approx. 3.5%	Pin No. 1
Ground	Pin No. 2
