Main Components, Anti-Theft Alarm

WARNING: This page is about a different car, the 2002 Saab 9-3. However, it is still accessible from the selected car via links, so may be relevant.

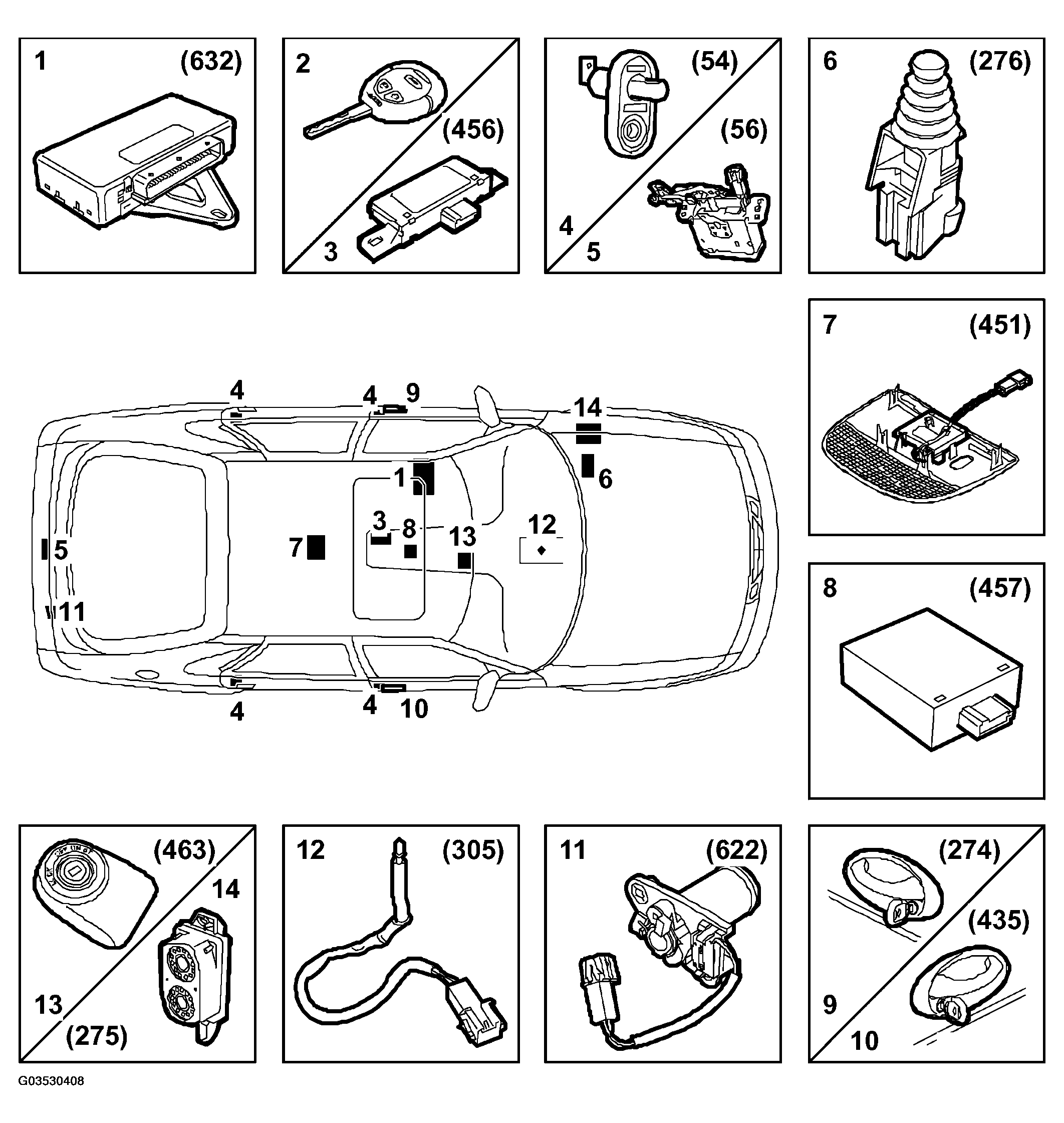

Fig 1: Identifying Main Components (Anti-Theft Alarm)
G03530408Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Control module, TWICE (632)
  2. Car key
  3. Antenna, remote control, central locking system (456)
  4. Door switches (54D, P, RL, RR)
  5. Switch, luggage compartment illumination (56)
  6. Bonnet switch, anti-theft alarm (276)
  7. Glass breakage sensor (451)
  8. Angle sensor (457)
  9. Microswitch, driver's door (274)
  10. Microswitch, passenger door (435)
  11. Microswitch, luggage compartment lock (622)
  12. LED, anti-theft alarm (305)
  13. Antenna unit, immobilizer (463)
  14. Siren, anti-theft alarm (275)
