To remove

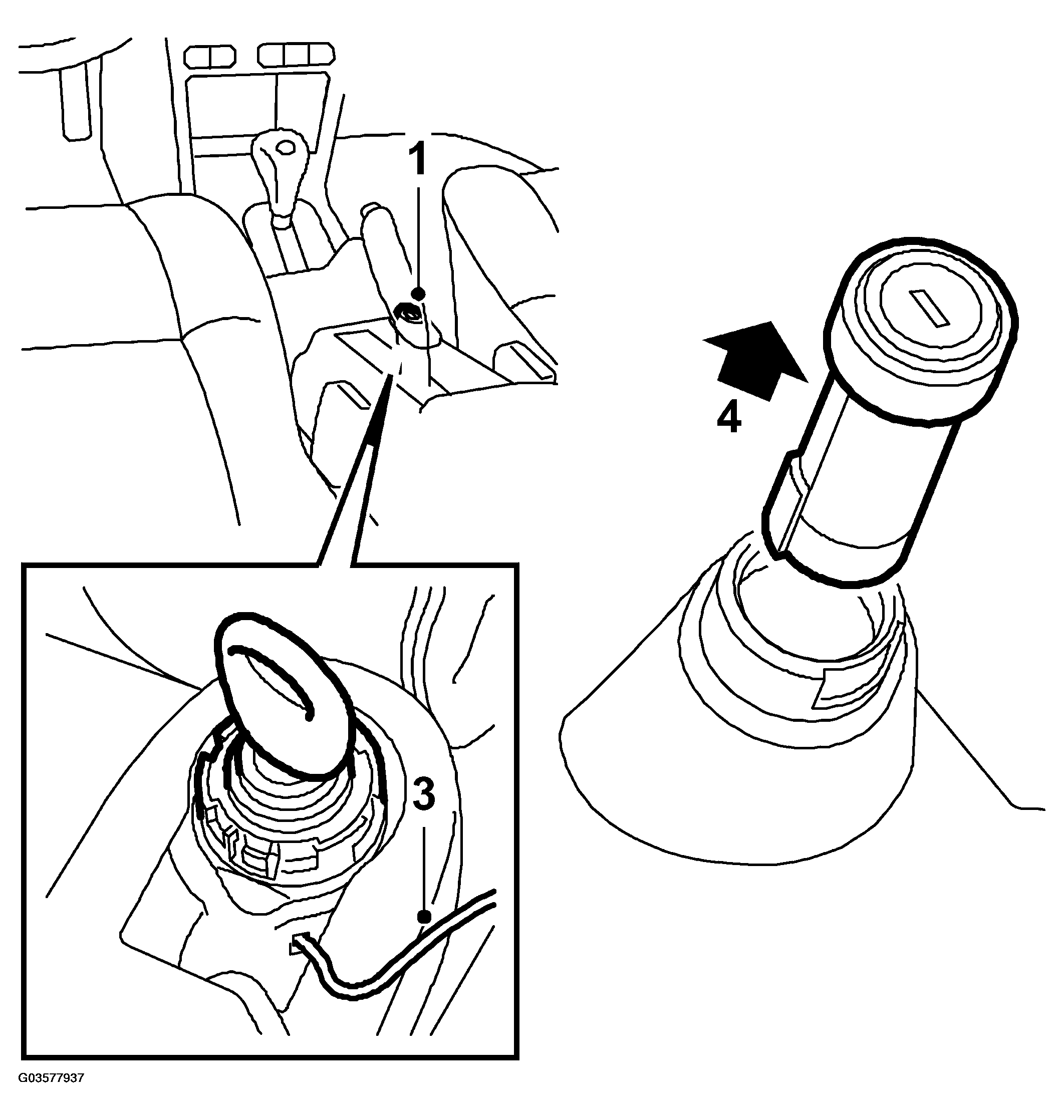

Fig 1: Illustration For Steps 1, 3-4
G03577937Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the transponder.
  2. Turn the ignition switch to the OFF position.
  3. Bend a welding rod.
  4. Remove the lock cylinder by pressing in the catch with the welding rod and withdrawing the cylinder straight up.
