Home › Saab › 2003 › 9-3 Linear, Automatic › Repair and Diagnosis › Transmission › Automatic Trans › Gear Selector Mechanism (Automatic) › Adjustment/Replacement › Indicator Display › To fit

To fit

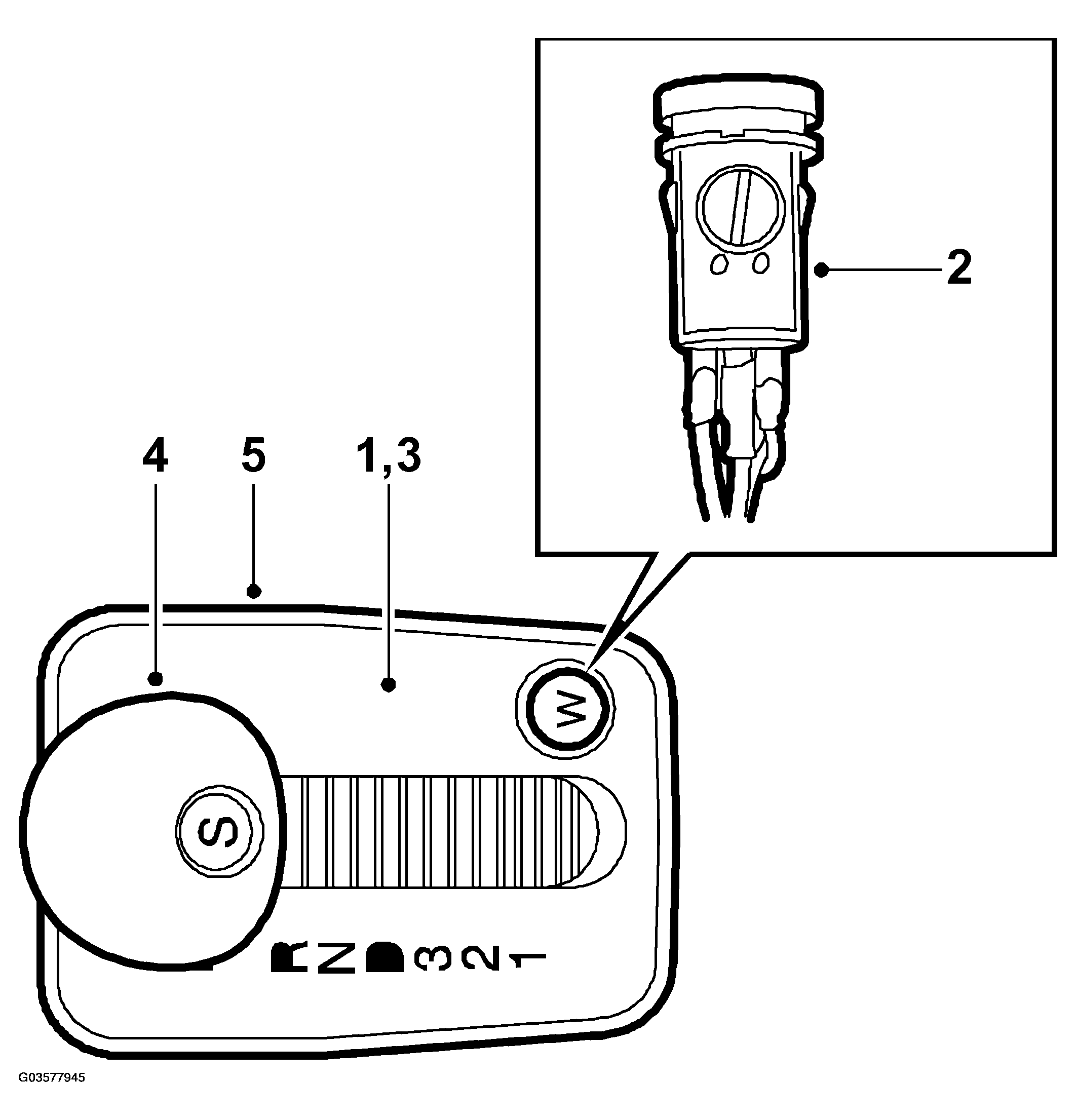

Fig 1: Illustration For Steps 1-5
G03577945Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Place the indicator display over the lever.
  2. Solder on the WINTER button, see WINTER BUTTON .
  3. Press on the indicator display.
  4. Assemble the selector lever casing, see SELECTOR LEVER CASING .
  5. Fit the rim around the indicator display.
