To fit

Fit a new cable tie in the selector lever housing. Tighten the cable tie holding the sector indicator display wiring. Fit the spring. Hook in the rear edge of the light box and then the front edge.

Fig 1: Illustration For Step 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Insert the wires. Fit and connect the 6-pin and 2-pin connector.

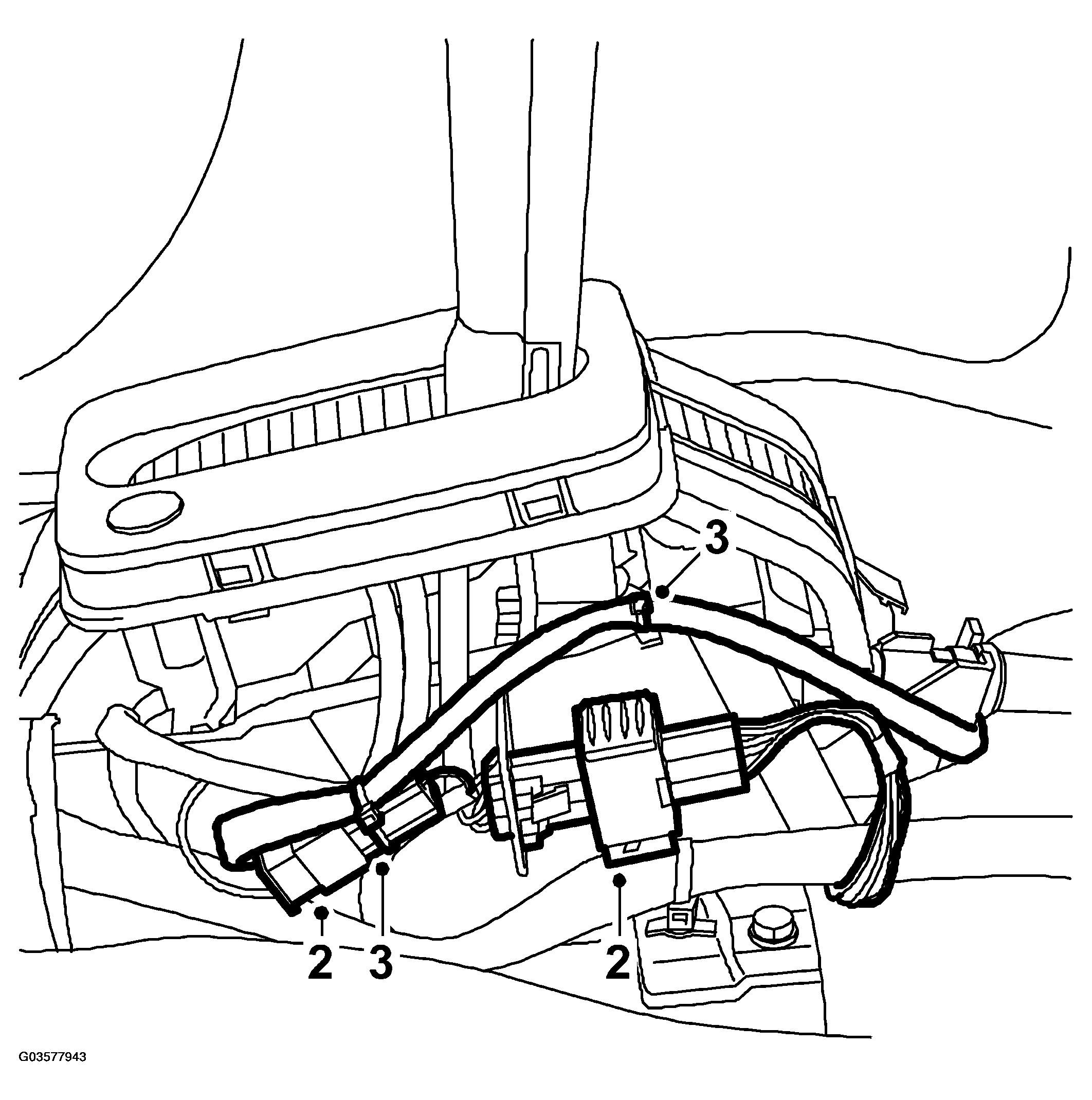

Fig 2: Illustration For Steps 2-3
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Secure with cable ties.
Fit the selector lever casing .
Fit the center console and rim.
Check that the selector lever lighting, and the WINTER and SPORT indicator lamps in the instrument panel function correctly.
