To remove

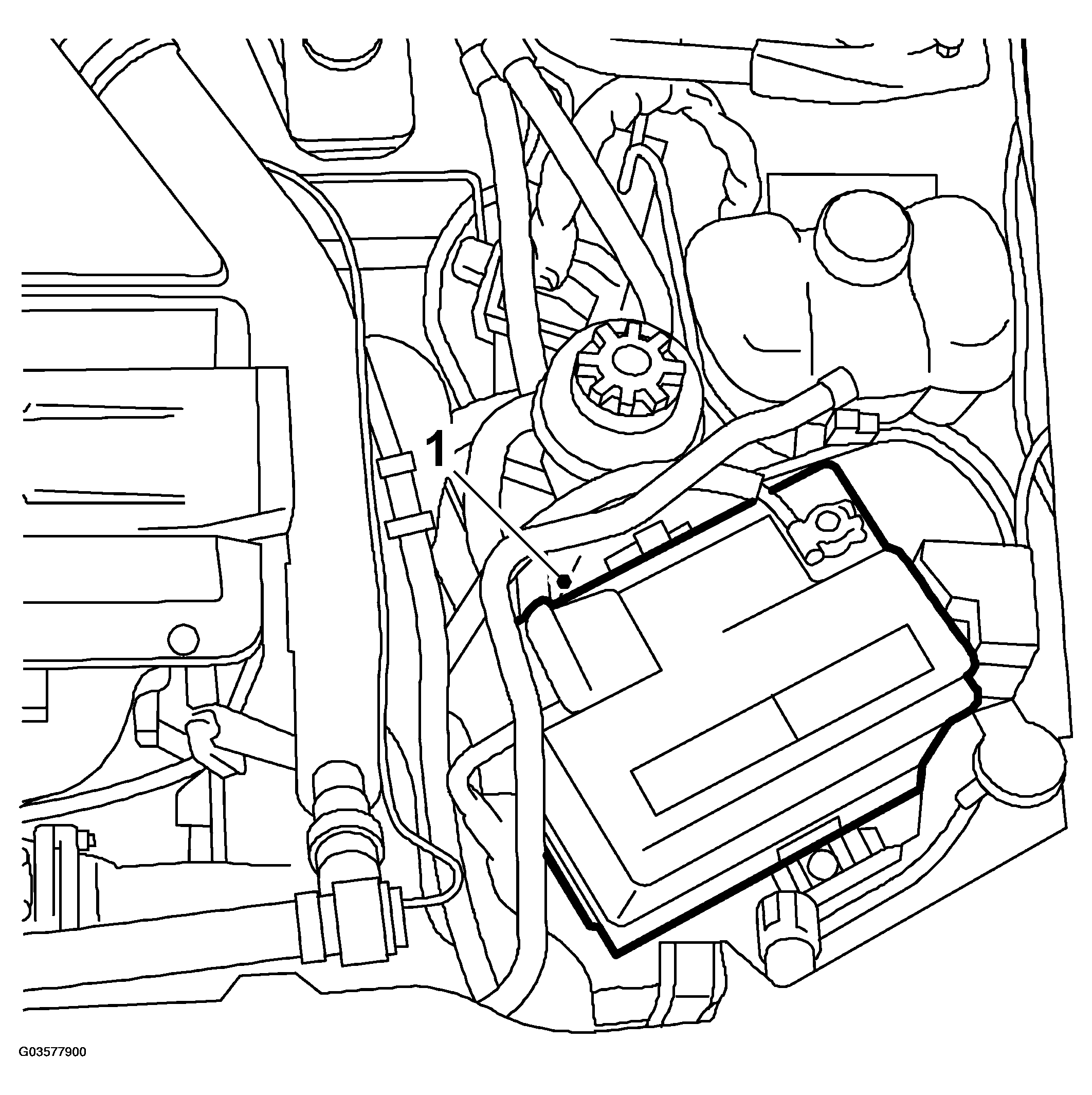

Fig 1: Illustration For Step 1
G03577900Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Remove the battery cover and the battery.
  2. Remove the rim.

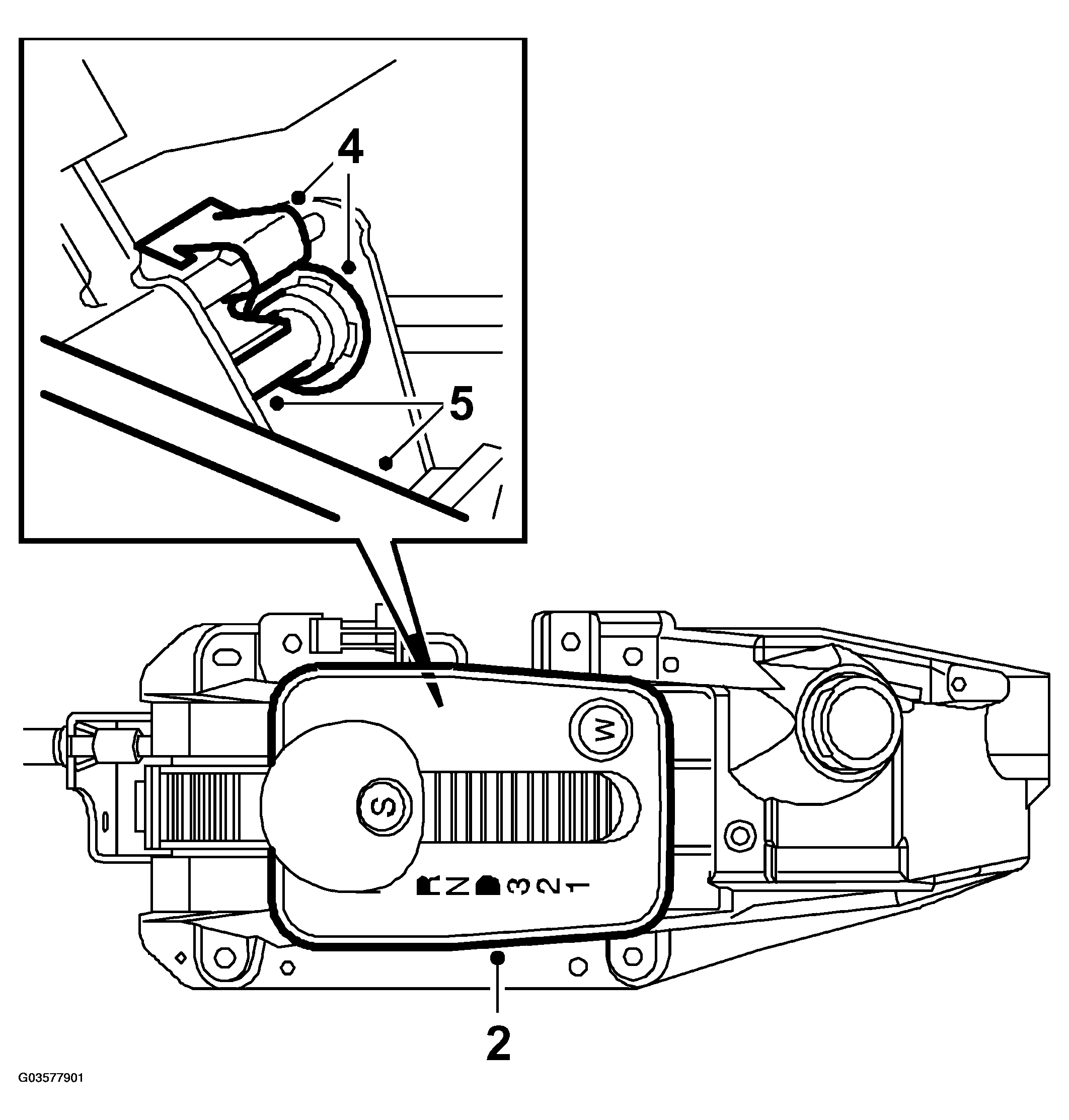

    Fig 2: Illustration For Steps 2, 4 & 5
    G03577901Courtesy of SAAB-SCANIA OF AMERICA, INC.

    Remove the center and floor consoles, see INTERIOR EQUIPMENT - 9-3 (9400) .

  3. Detach the air duct to the rear air vent.
  4. Remove the E-circlip and anti-rattle clip.
  5. Drive out the pin while removing the end of the cable from the ball.
  6. Remove the clamp located on the locking catches.

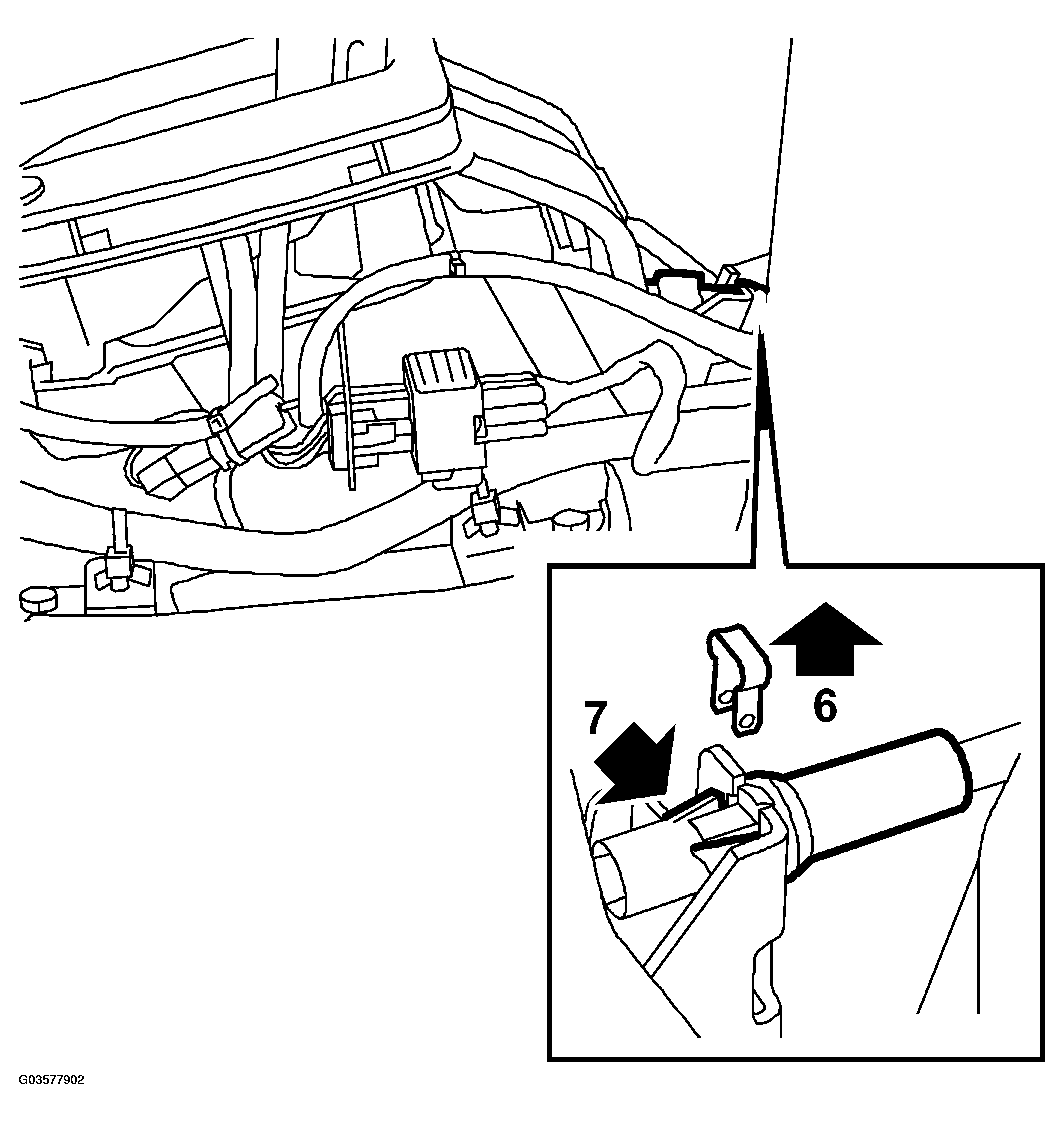

    Fig 3: Illustration For Steps 6 & 7
    G03577902Courtesy of SAAB-SCANIA OF AMERICA, INC.
  7. Carefully press the catches securing the cable ferrule towards each other and remove the cable from the bracket.
  8. Remove the bracket for the A/C and servo pipes.
  9. Remove the nut for the lever and lift the lever off the gearbox.
  10. Remove the clamp at the cable bracket.
  11. Remove the cable ferrule from the bracket on the gearbox.

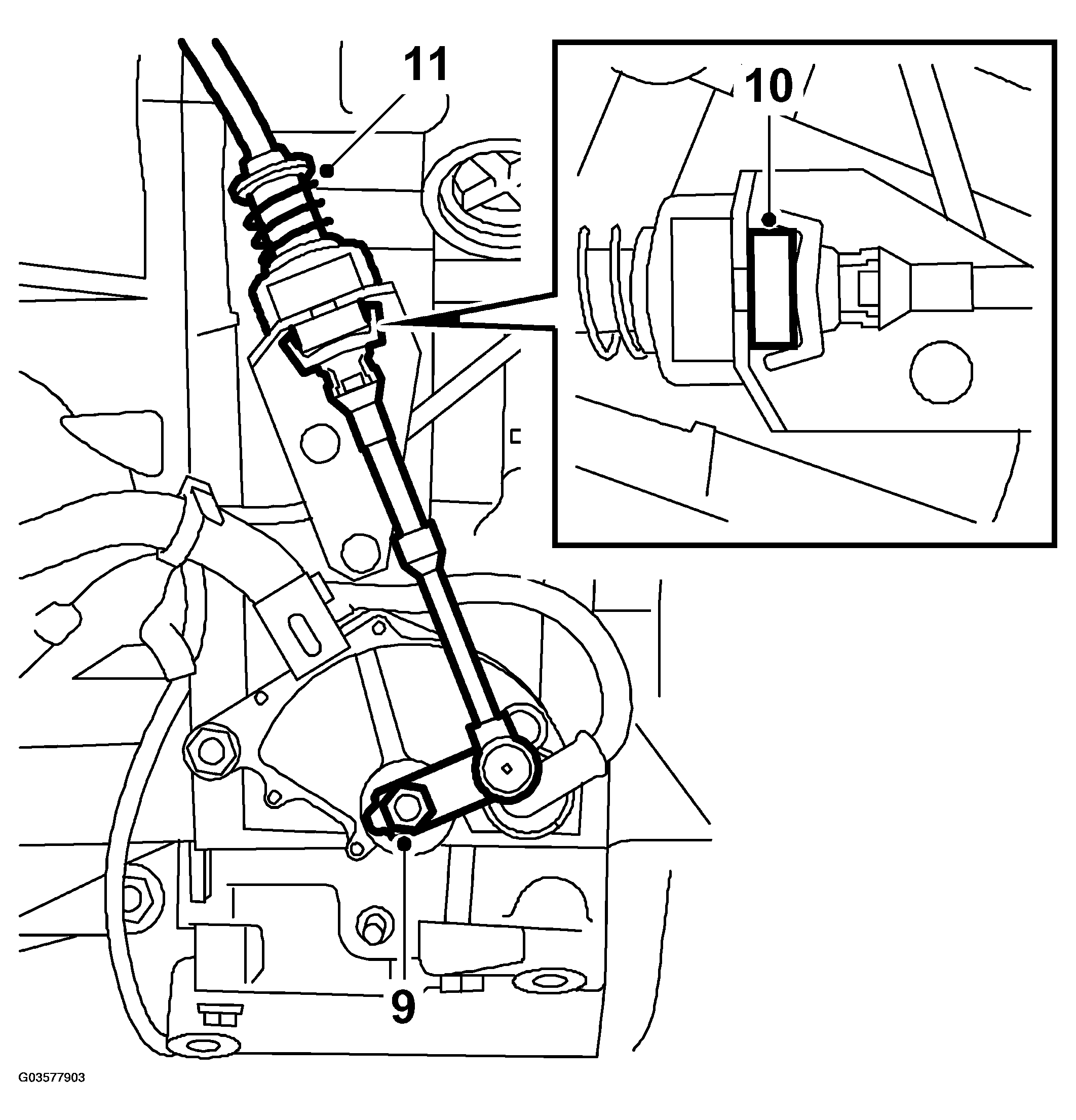

    Fig 4: Illustration For Steps 9-11
    G03577903Courtesy of SAAB-SCANIA OF AMERICA, INC.
  12. Remove the rubber grommet by first pressing it into the car and then pulling it diagonally through the hole.
  13. Pull out the whole cable through the engine bay.
