To remove
Courtesy of SAAB-SCANIA OF AMERICA, INC.

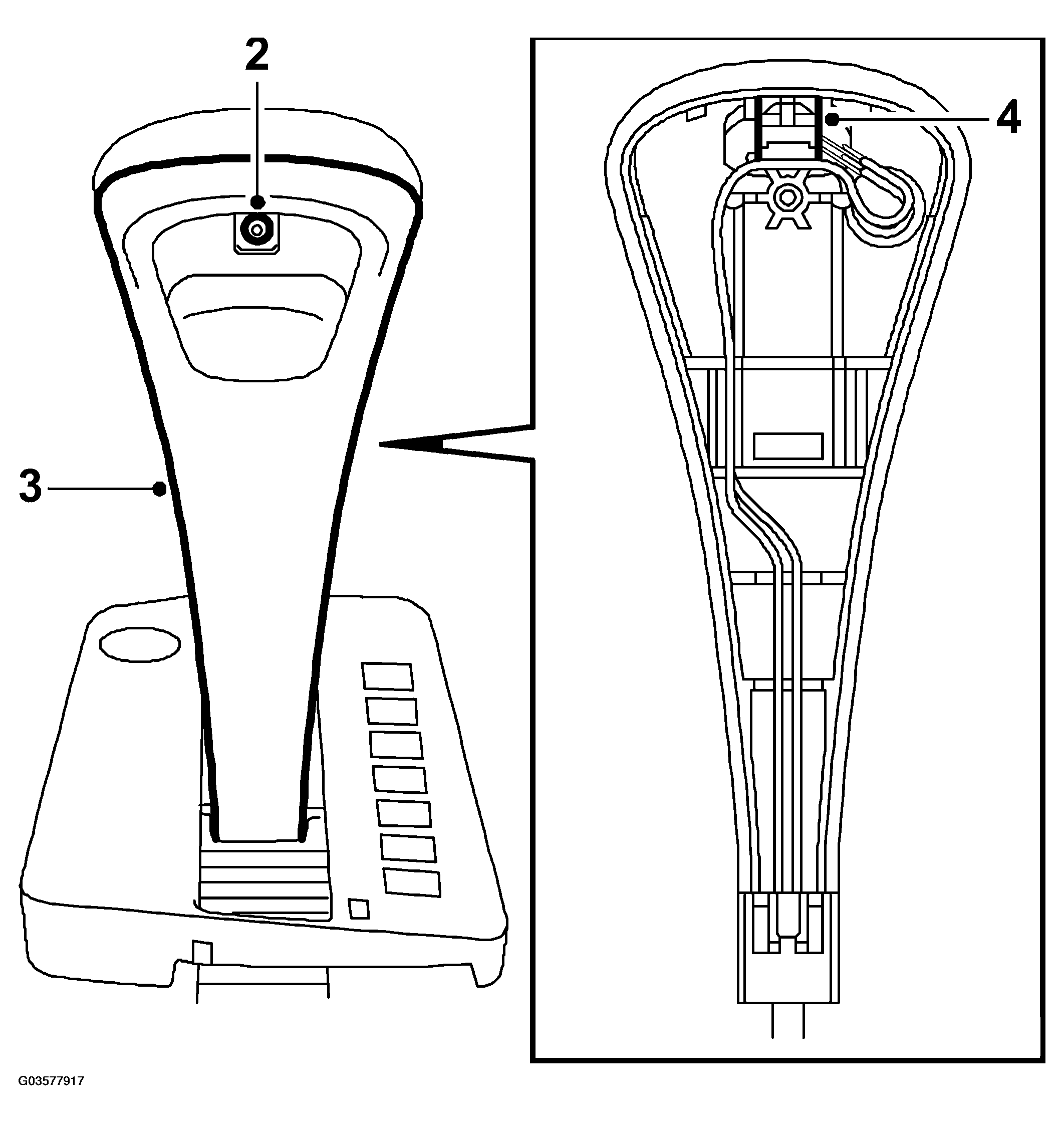

- Move the selector lever to position N or D.
- Remove the screw securing the front part of the selector lever casing.
- Remove the front part.

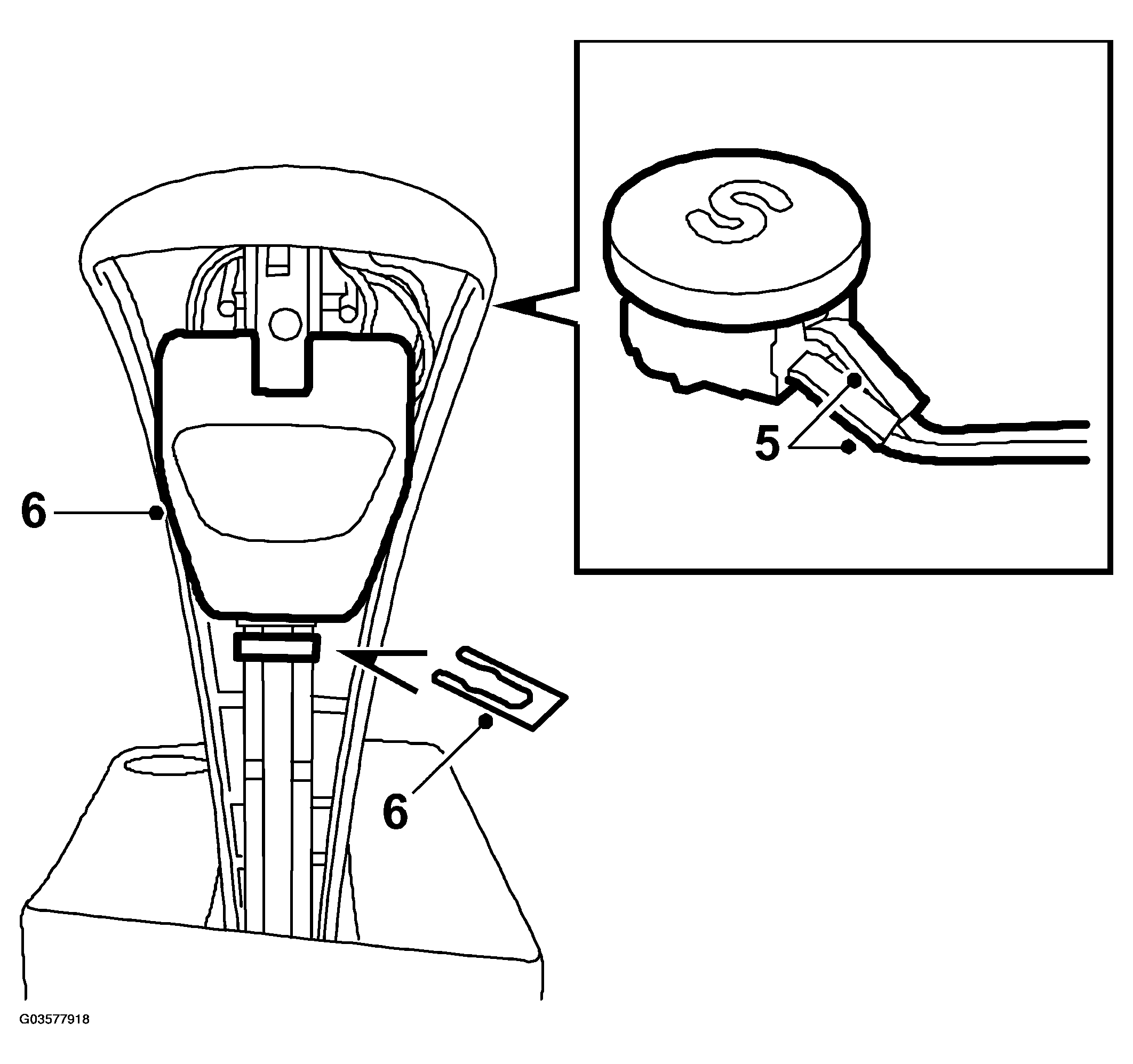

- Press up the SPORT button from below.
- Unsolder the SPORT button. Place some form of protection under it so that drops of solder do not fall onto the center console.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
- Remove the clip and pull up the release button together with the rear part of the selector lever casing. The electric leads remain in the lever casing.
