To fit

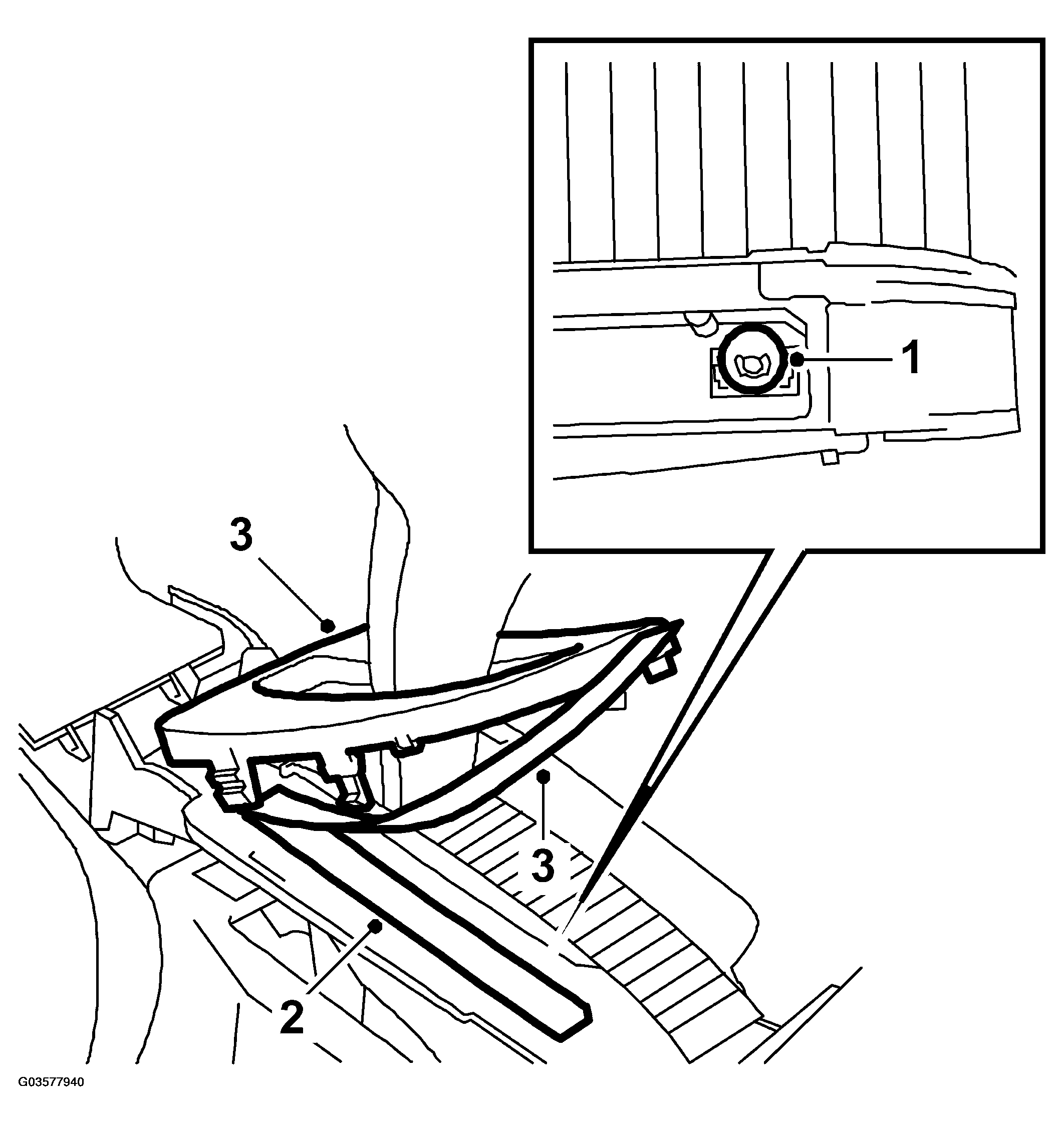

Fig 1: Illustration For Steps 1-3
G03577940Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit a new lamp.
  2. Fit the grid under the green strip.
  3. Fit the indicator display.
  4. Fit the rim around the indicator display.
