To fit

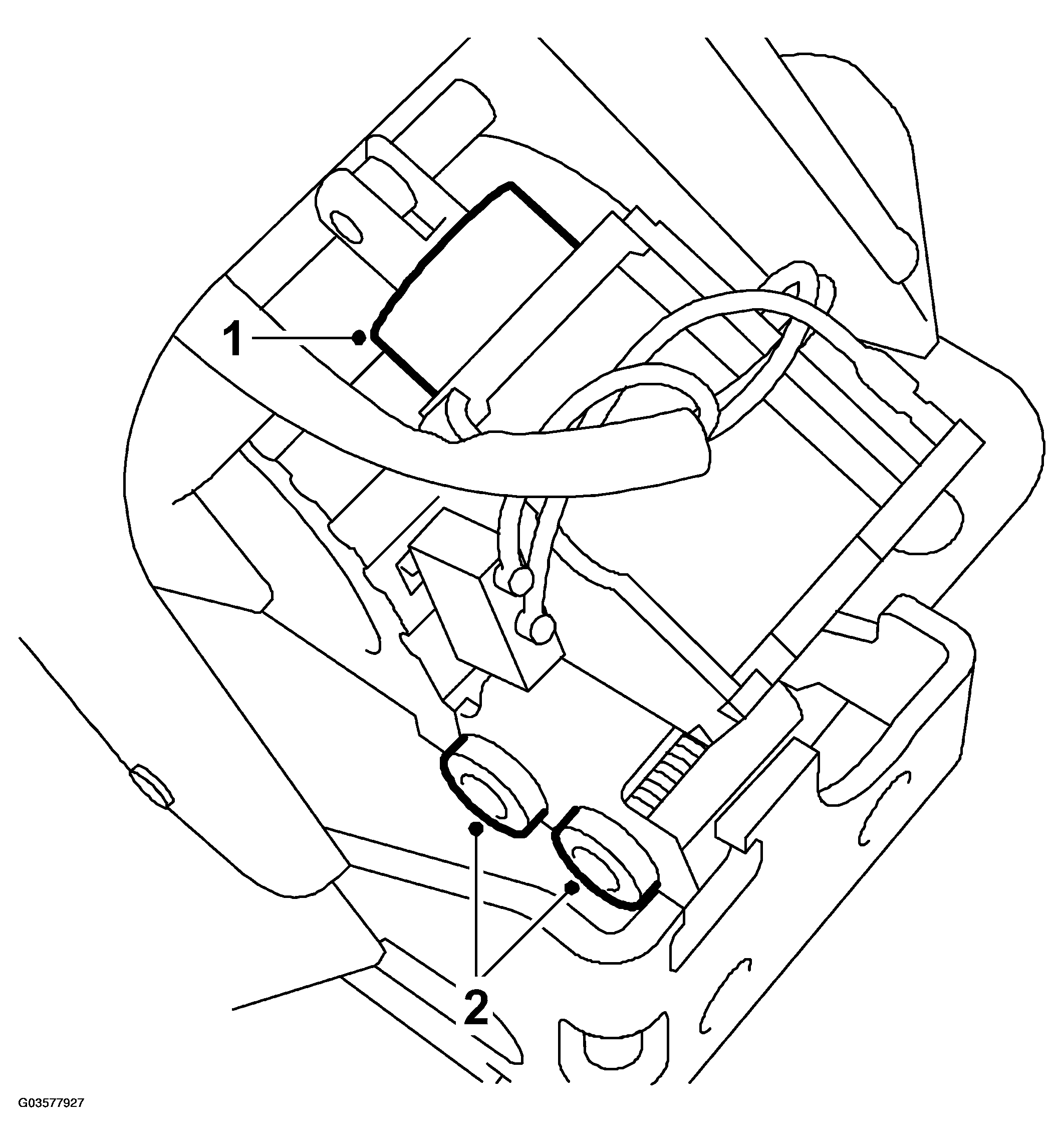

Fig 1: Illustration For Steps 1-2
G03577927Courtesy of SAAB-SCANIA OF AMERICA, INC.
  1. Fit the electromagnet to the lever.
  2. Fit the electromagnet's two screws.
  3. Fit the two parts of the selector lever housing together.

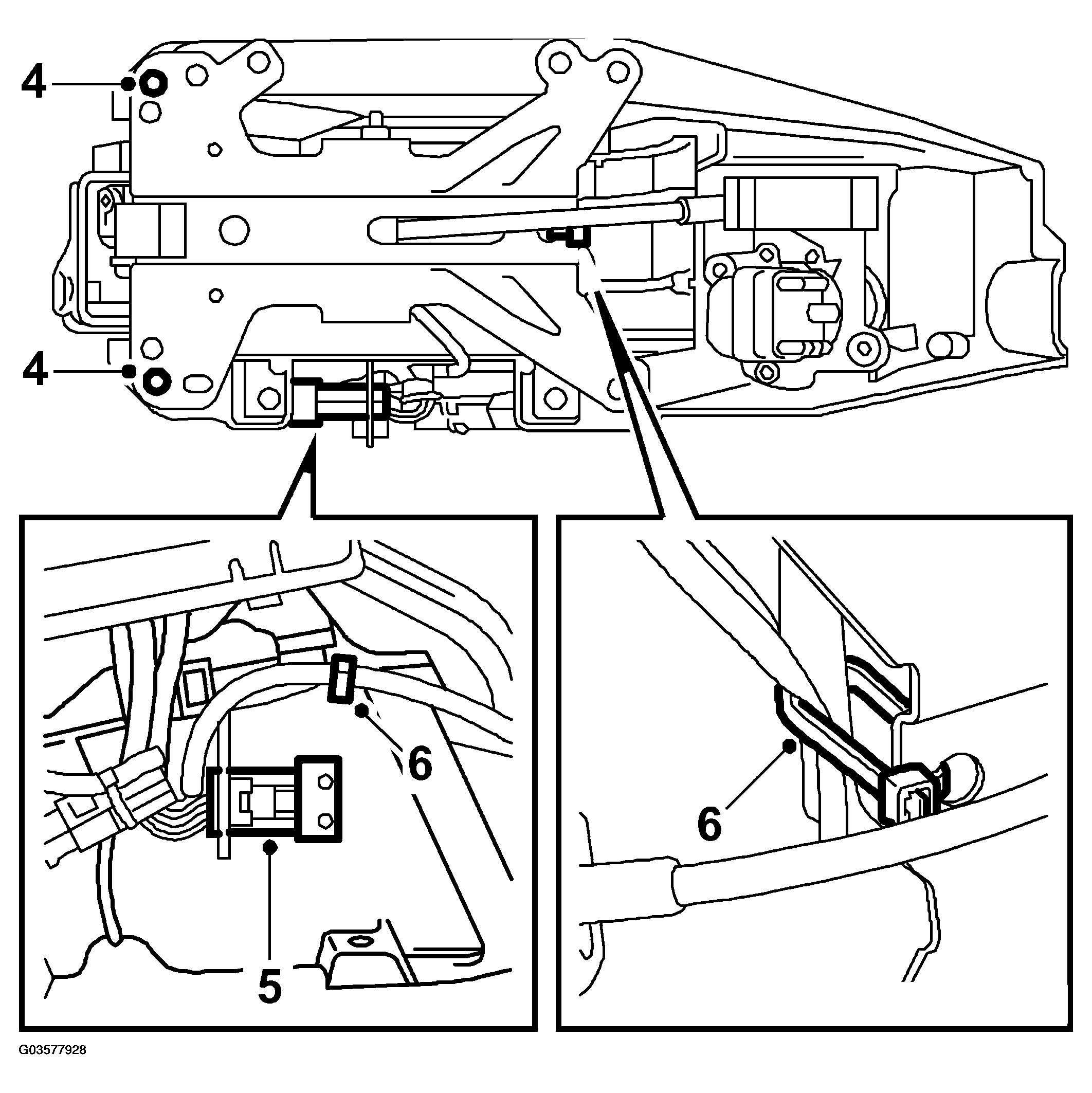

    Fig 2: Illustration For Steps 4-6
    G03577928Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Rivet the parts of the selector lever housing together.
  5. Connect the leads on the electromagnet.
  6. Secure the leads with a cable tie.
  7. Fit the selector lever housing, see SELECTOR LEVER HOUSING .
