Home › Saab › 2003 › 9-3 Linear, Standard › Repair and Diagnosis › Engine Performance › System › TRIONIC T7 Fuel Control System › Adjustment-Replacement › Relay, limp-home solenoid › To remove

To remove

  1. Remove the cover on the knee protection.

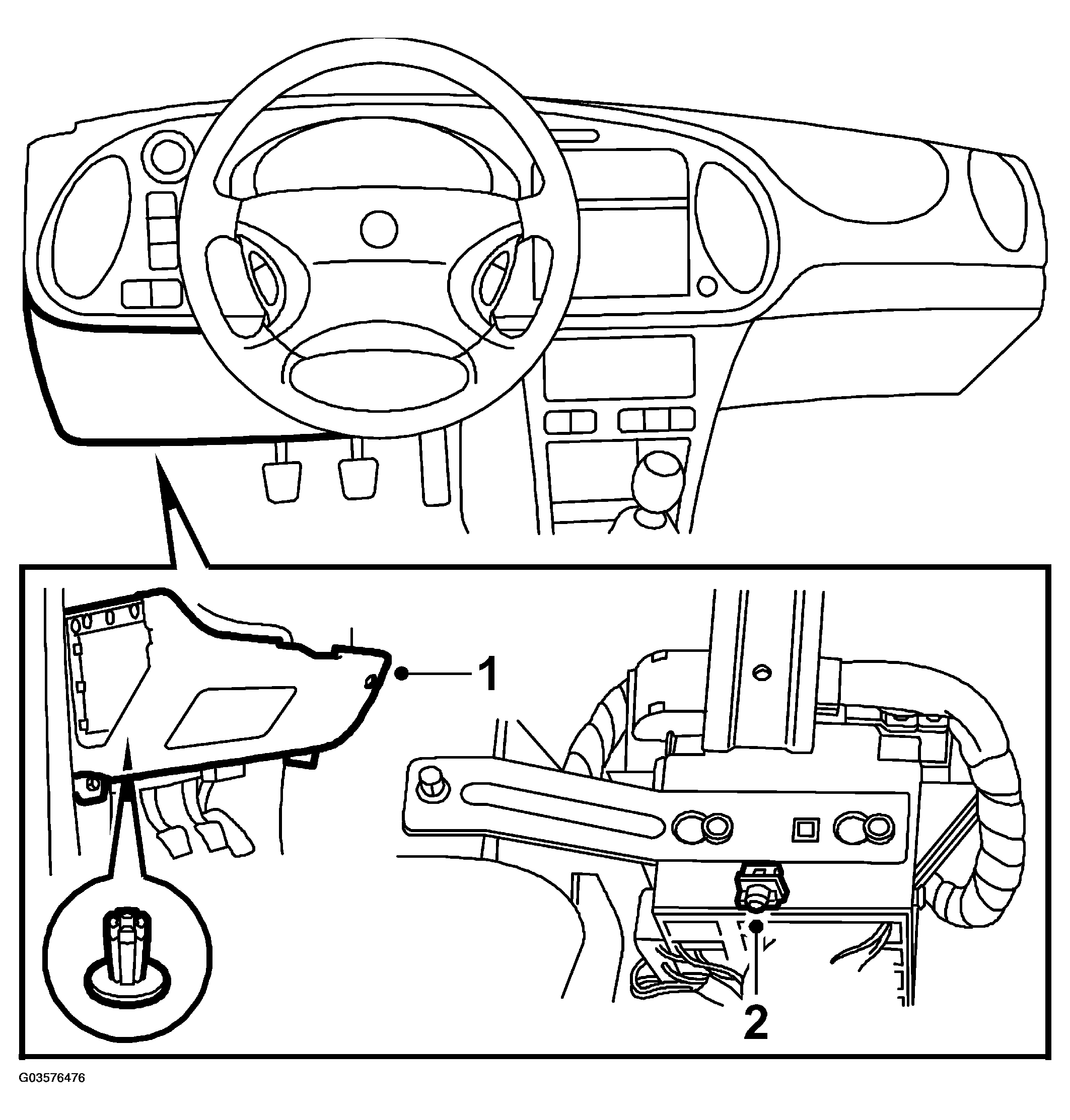

    Fig 1: Illustration For Steps 1-2
    G03576476Courtesy of SAAB-SCANIA OF AMERICA, INC.
  2. Undo the screw securing the relay holder.
  3. Tilt down the relay holder.

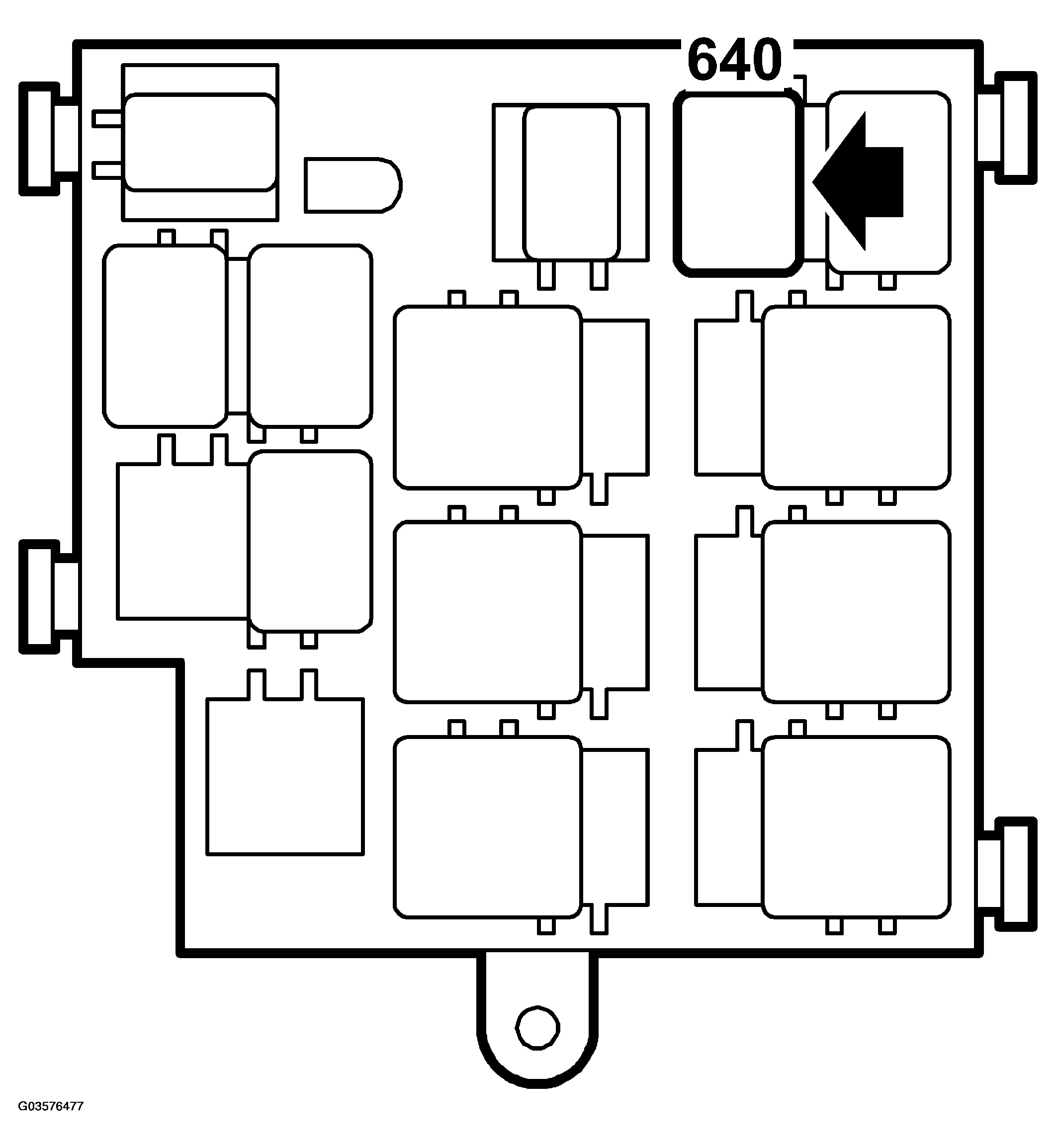

    Fig 2: Identifying Relay Holder
    G03576477Courtesy of SAAB-SCANIA OF AMERICA, INC.
  4. Remove the relay for the limp-home solenoid.
