TRIONIC T7 Fuel Control System
›
Fault Diagnosis Fault Codes
›
DTC P0327: Knock Sensor Circuit. Low Input, Bank 1.
›
Notes
DTC P0327: Knock Sensor Circuit. Low Input, Bank 1.: Notes

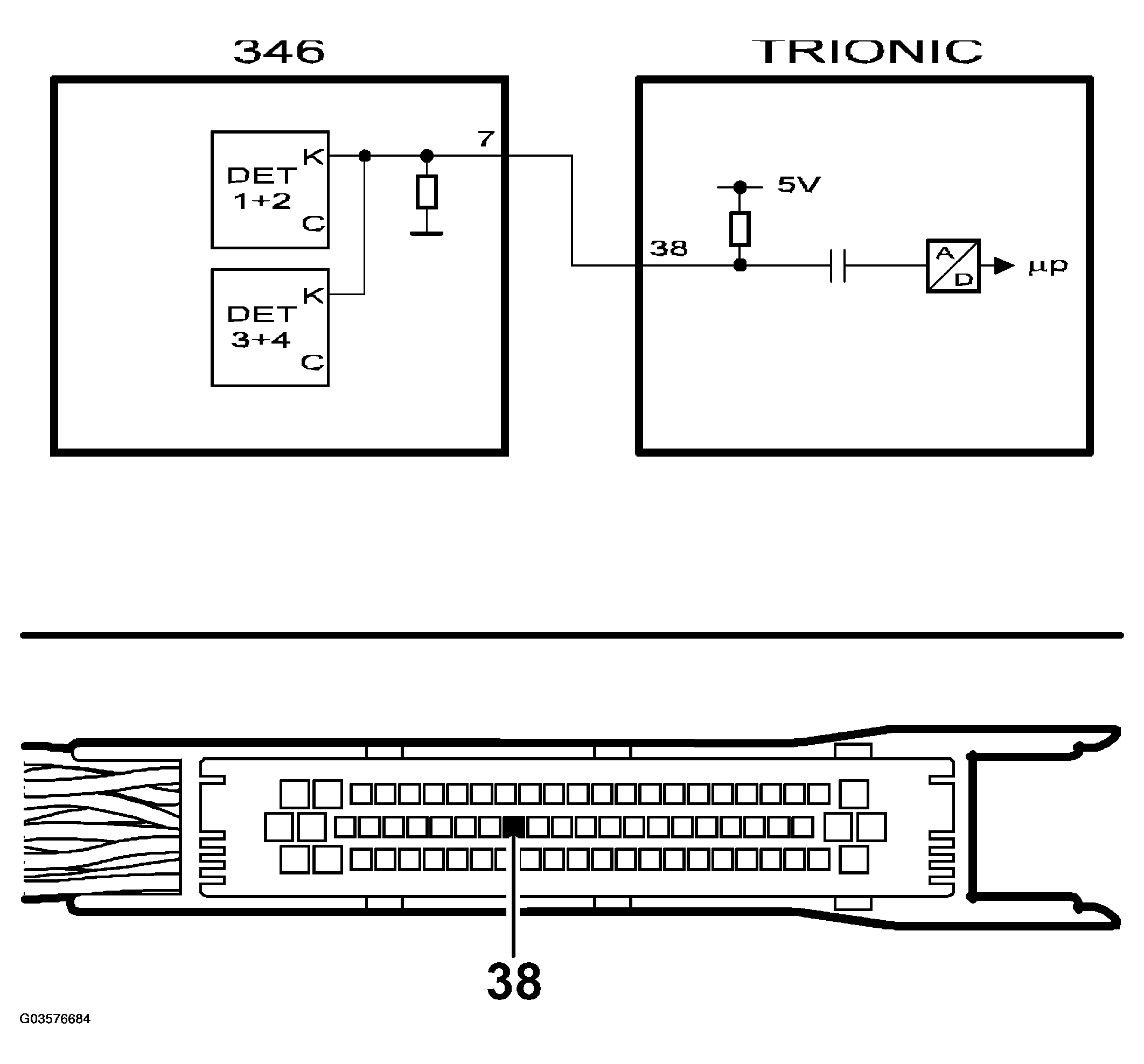

Fig 1: Knock Sensor Circuit Diagram - Low Input - Bank 1
Courtesy of SAAB-SCANIA OF AMERICA, INC.
Courtesy of SAAB-SCANIA OF AMERICA, INC.
