Crimp J110, main harness: Notes

Location

SOP  : Approx. 140 mm from connector H42 -3

Rev.3  : Approx. 240 mm from connector H42-3

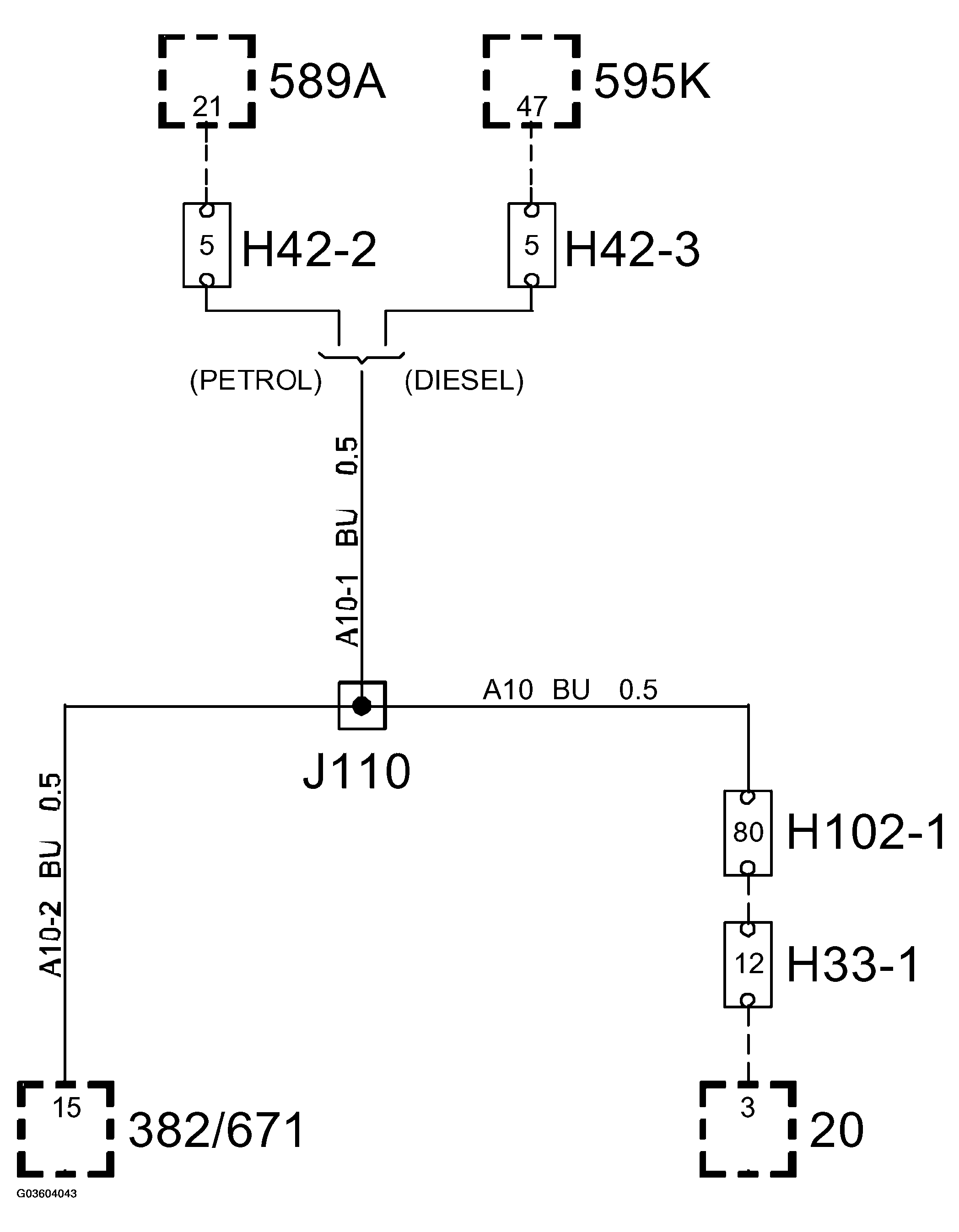

Fig 1: Identifying Crimp J110 And Main Harness Wiring Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.
