Grounding point G2: Notes

Fig 1: Identifying Grounding Point G2 And Location

Courtesy of SAAB-SCANIA OF AMERICA, INC.

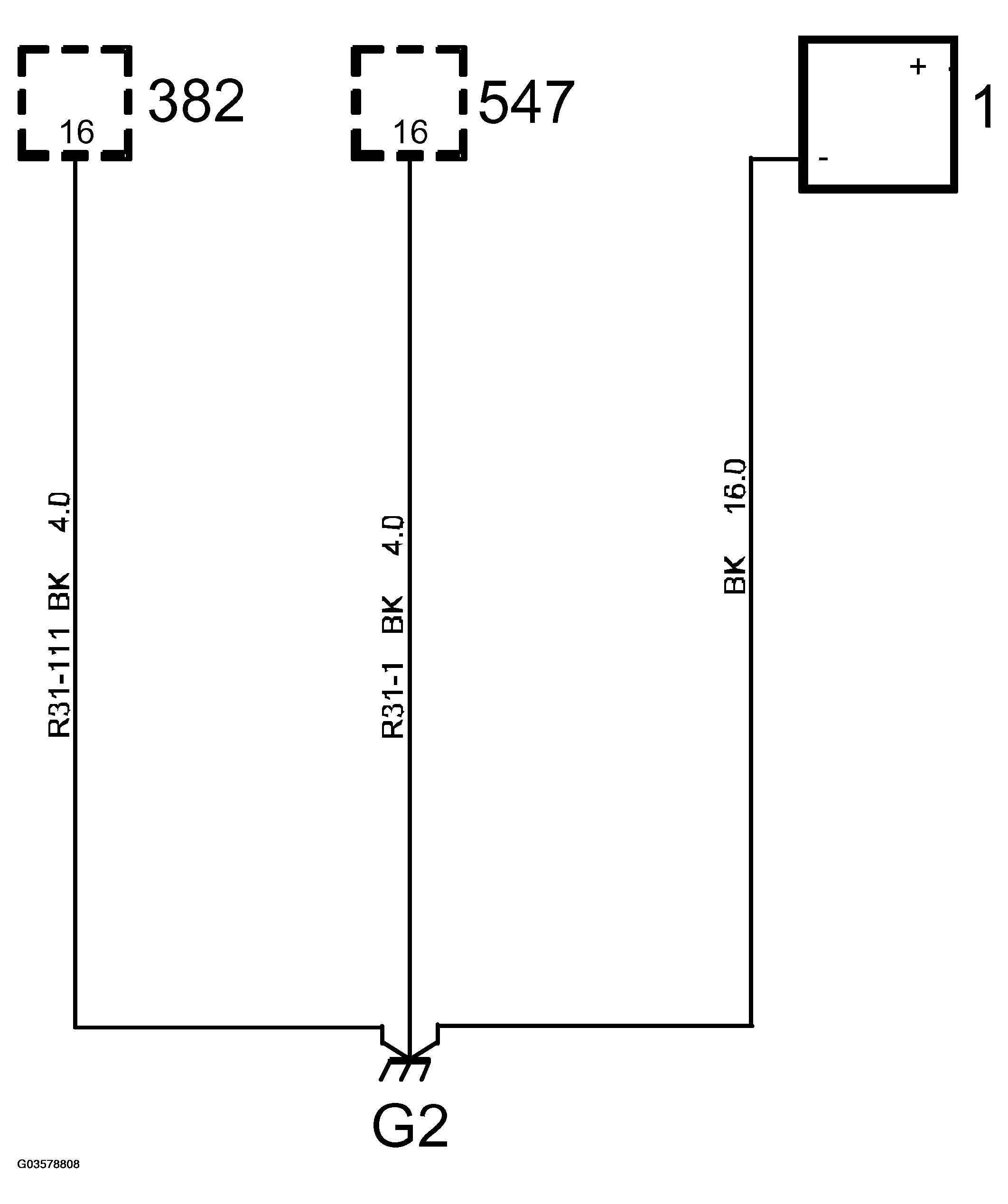

Fig 2: Grounding Point G2 Connection Diagram

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  in engine bay on side panel in front of left-hand wheel housing.
