Component Location
›
Tire Pressure Monitoring Module (753)
›
Location:
Tire Pressure Monitoring Module (753): Location:
on the LH support member of the center console

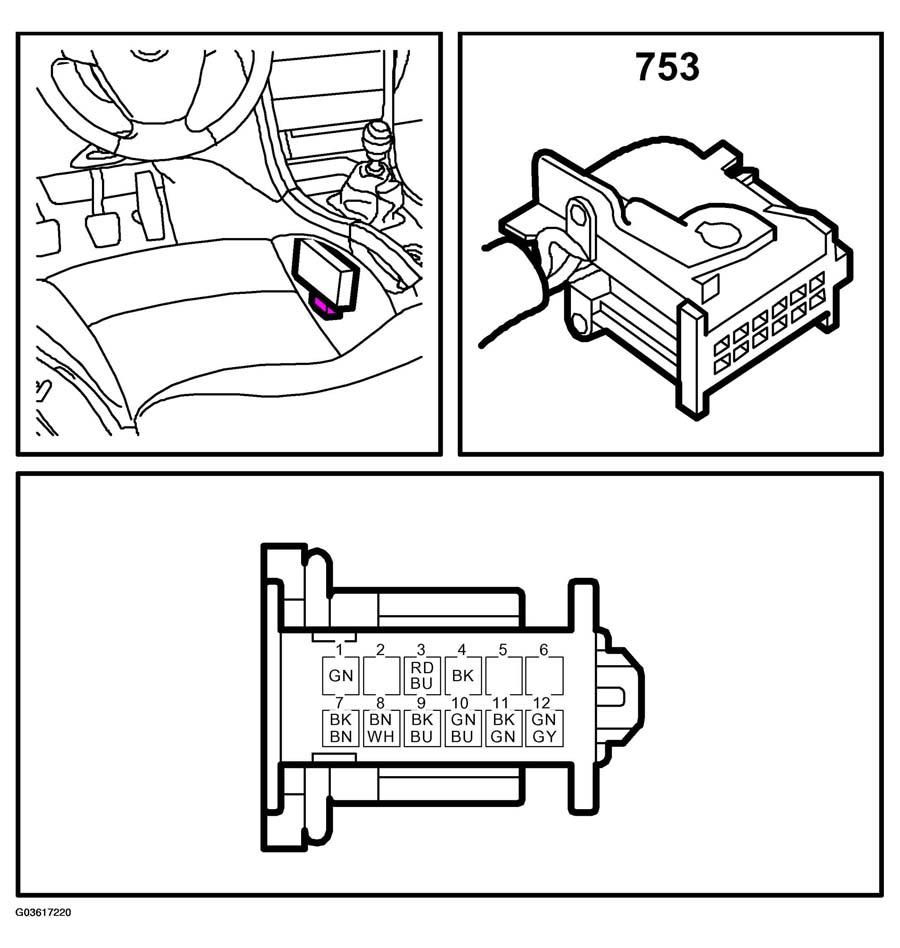

Fig 1: Identifying Tire Pressure Monitoring Module (753)
Courtesy of SAAB-SCANIA OF AMERICA, INC.
