Control module, PSG 16 (595)

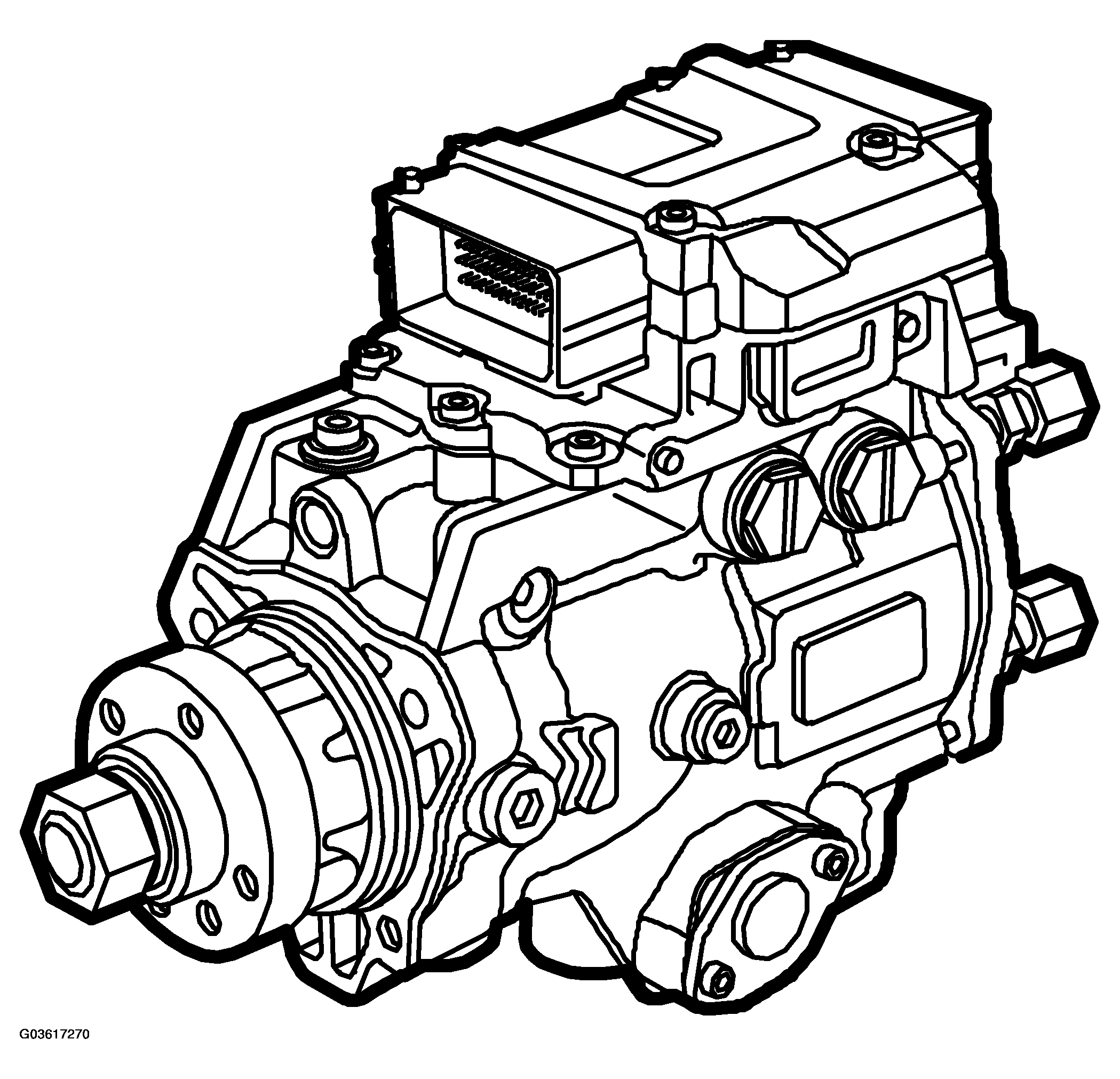

Fig 1: Identifying Control Module, PSG 16 (595)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

PINS DESCRIPTION

No. of pins		56 on K switch and 56 on M switch
Power supply (+15 circuit)	pin no.	16(K)
P-bus (+)	pin no.	29(K)
P-bus (-)	pin no.	17(K)
