Test readings, rear left door module, (702RL): Scope

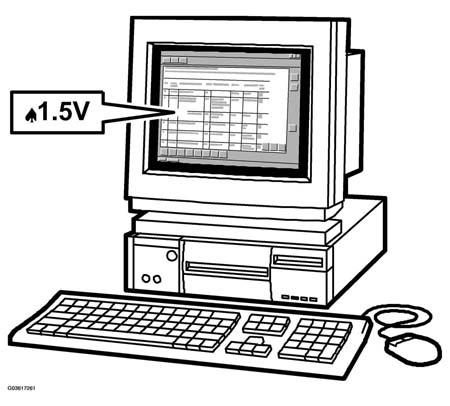

Fig 1: Identifying Electronic Equipment

Courtesy of SAAB-SCANIA OF AMERICA, INC.

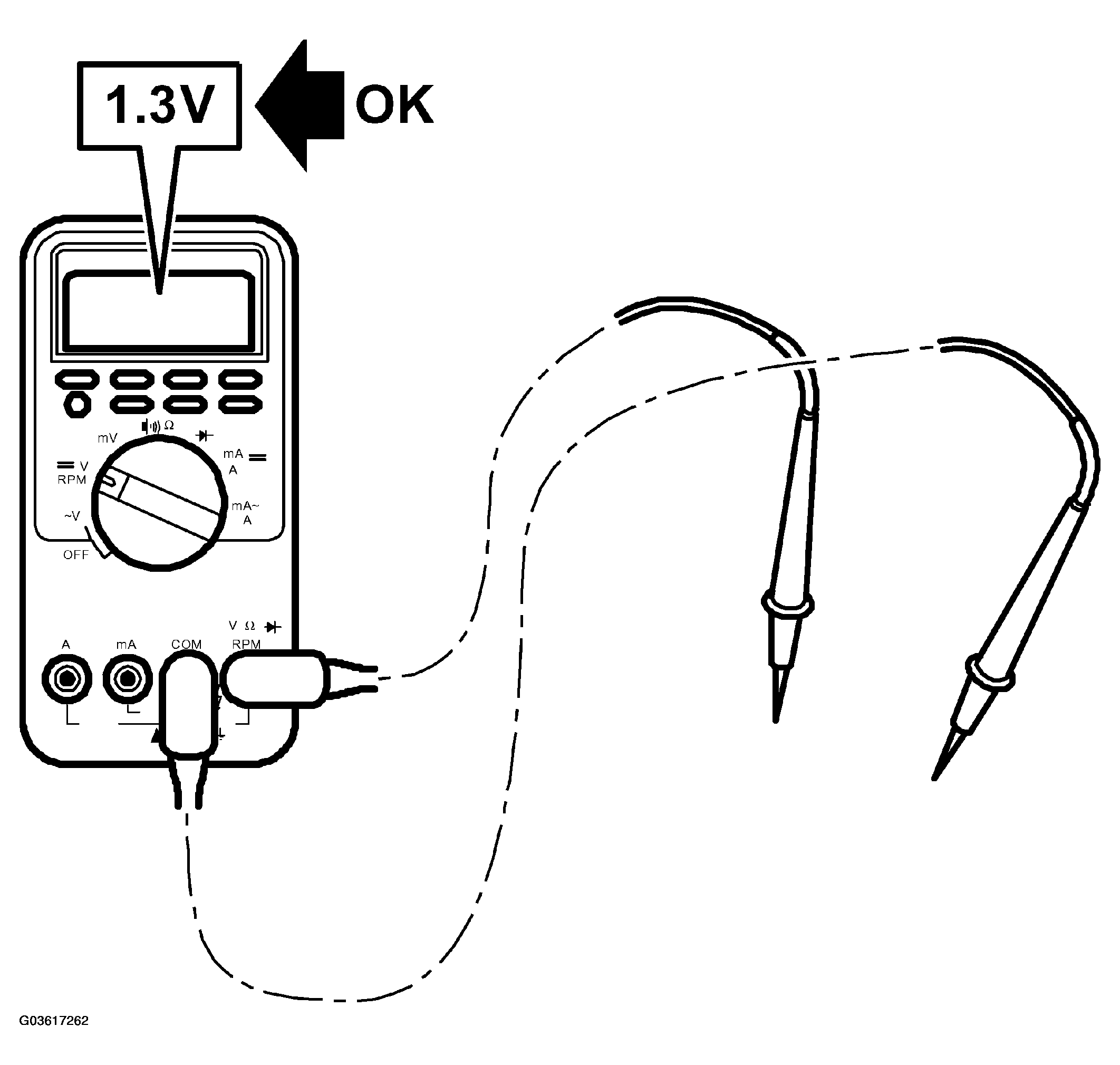

Fig 2: Identifying Multimeter

Courtesy of SAAB-SCANIA OF AMERICA, INC.

The following pages contain directions and readings for testing signals and levels of the control module.
