Power supply, ground and bus communication

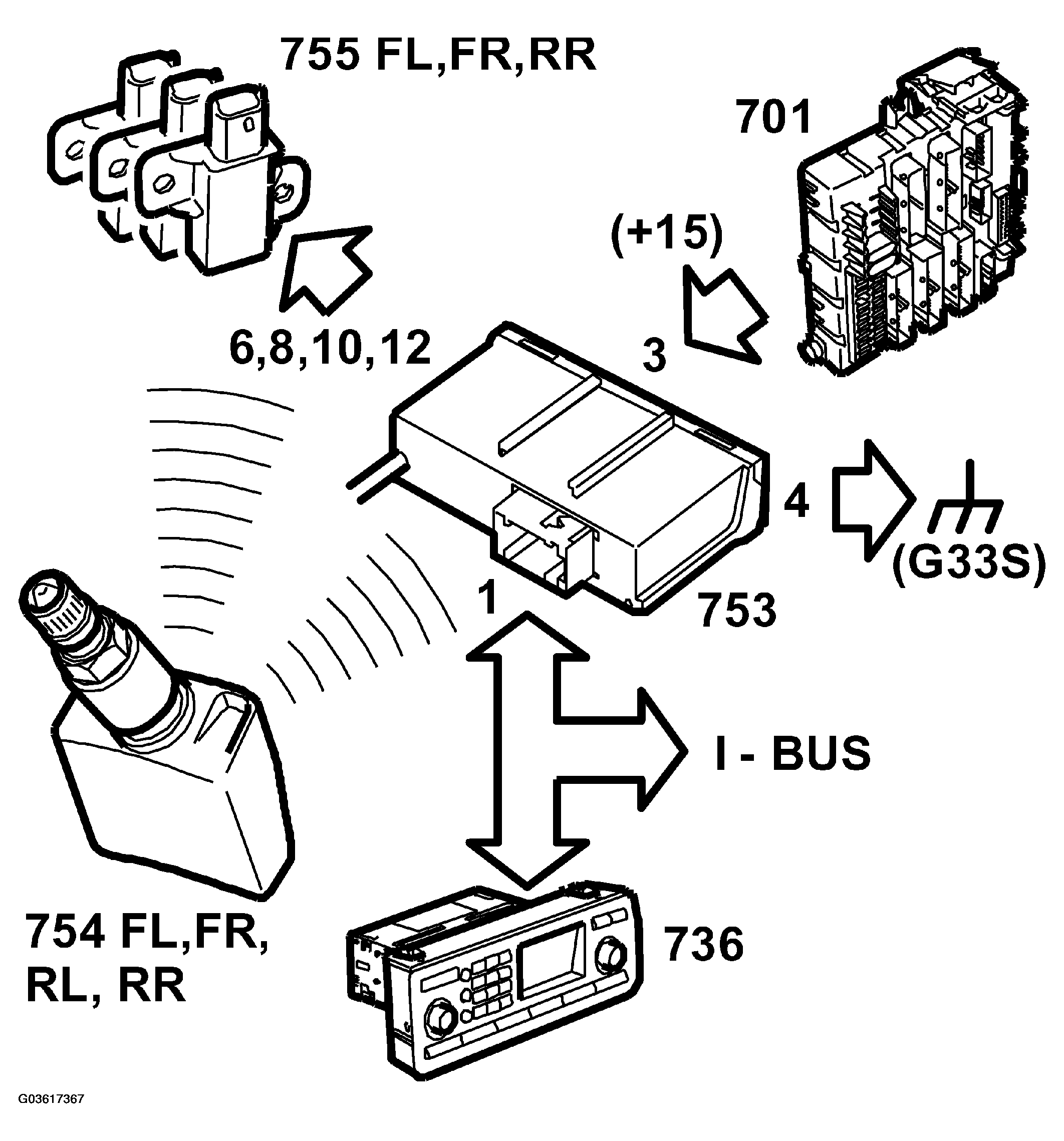

Fig 1: Identifying Tire Pressure Monitoring Module Connectors

Courtesy of SAAB-SCANIA OF AMERICA, INC.

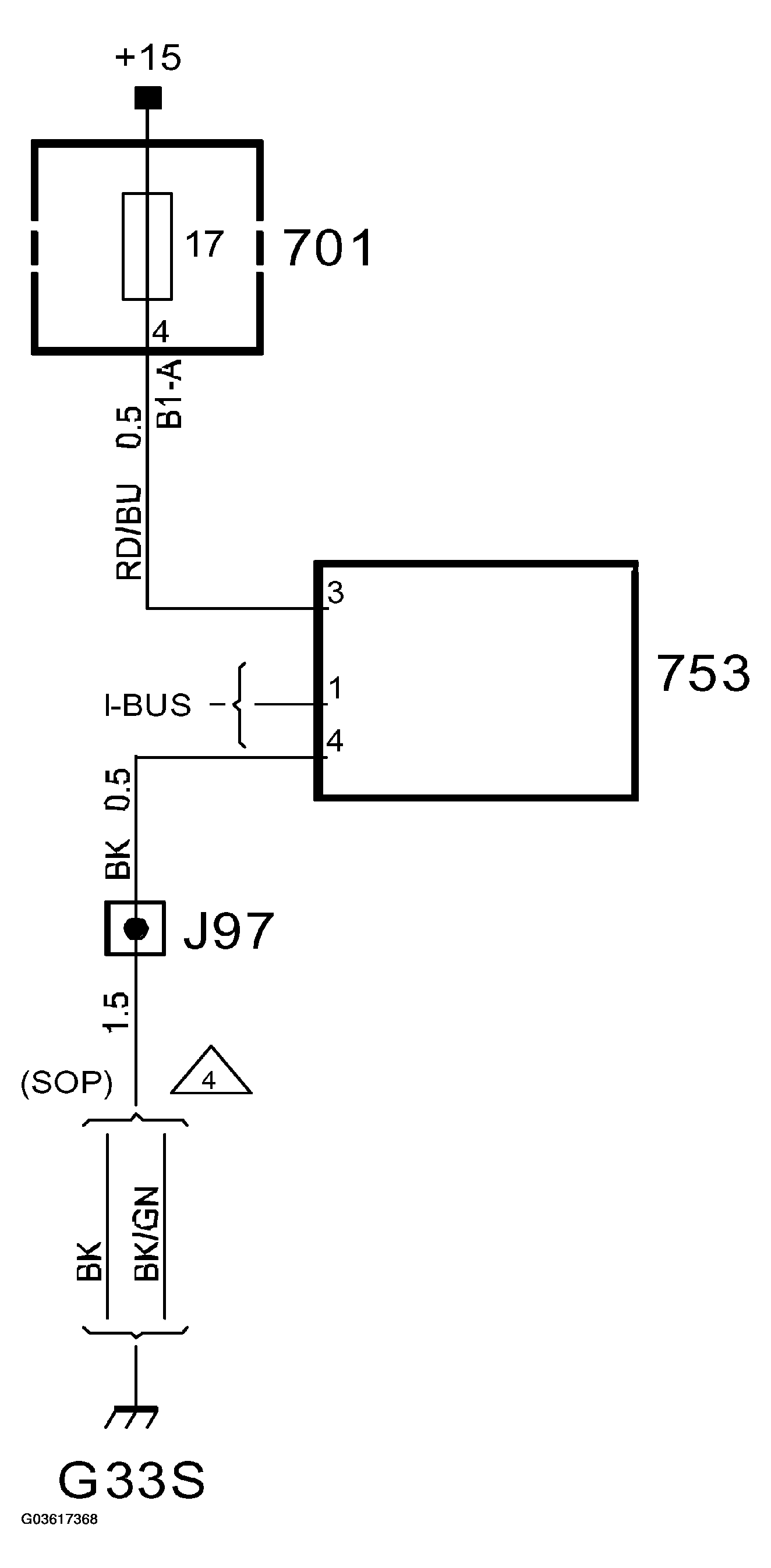

Fig 2: Power Supply, Ground And Bus Communication

Courtesy of SAAB-SCANIA OF AMERICA, INC.

PINS DESCRIPTION

Pin	Connection
1	I-bus
2	Not used
3	+15
4	Ground, G33S
7	Signal detector front left (755FL), system ground
8	Signal detector front left (755FL), power supply
9	Signal detector front right (755FR), system ground
10	Signal detector front right (755FR), power supply
11	Signal detector rear right (755RR), system ground
12	Signal detector rear right (755RR), power supply
