Grounding Point G2: Notes

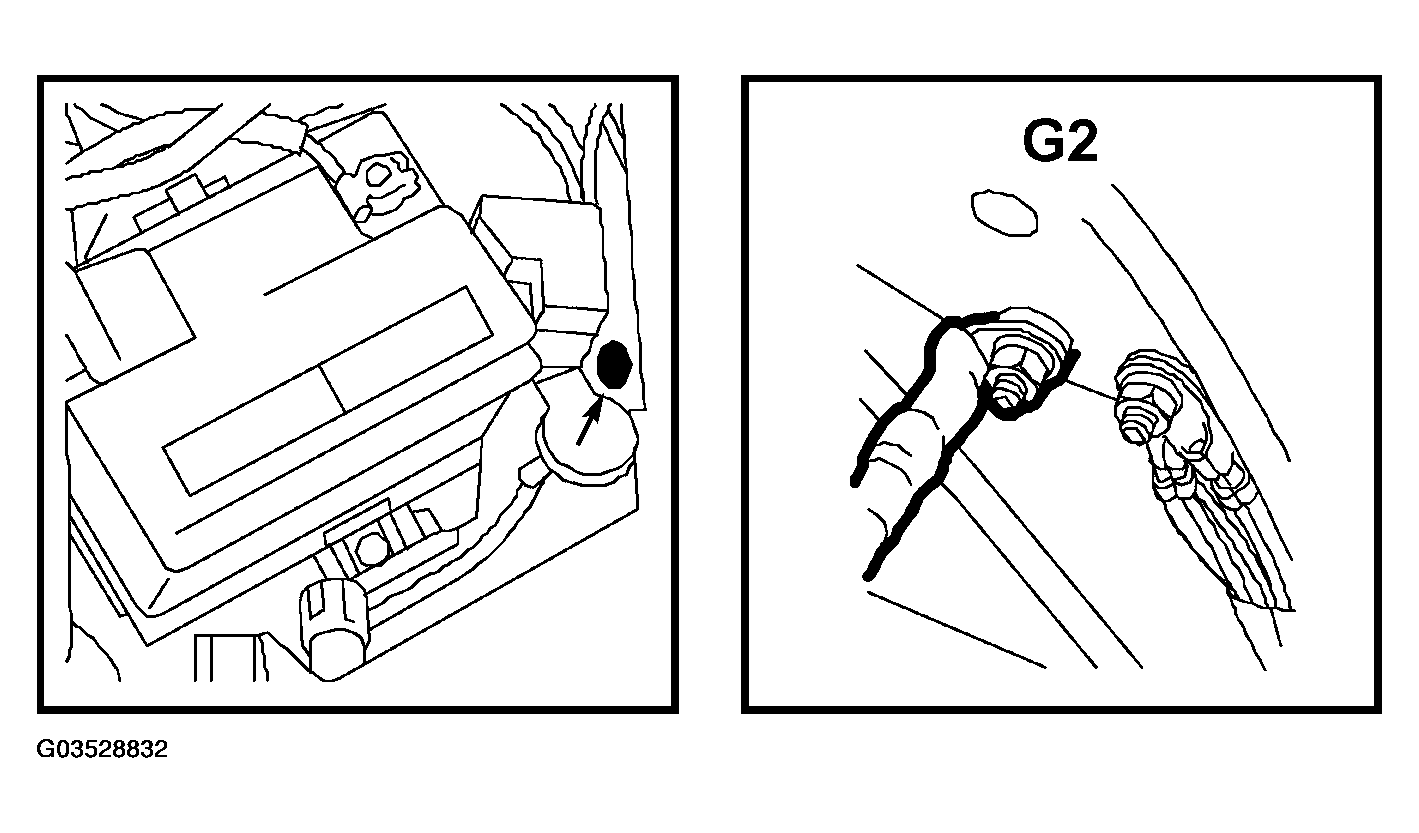

Fig 1: Locating Electrical Grounding Point (G2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

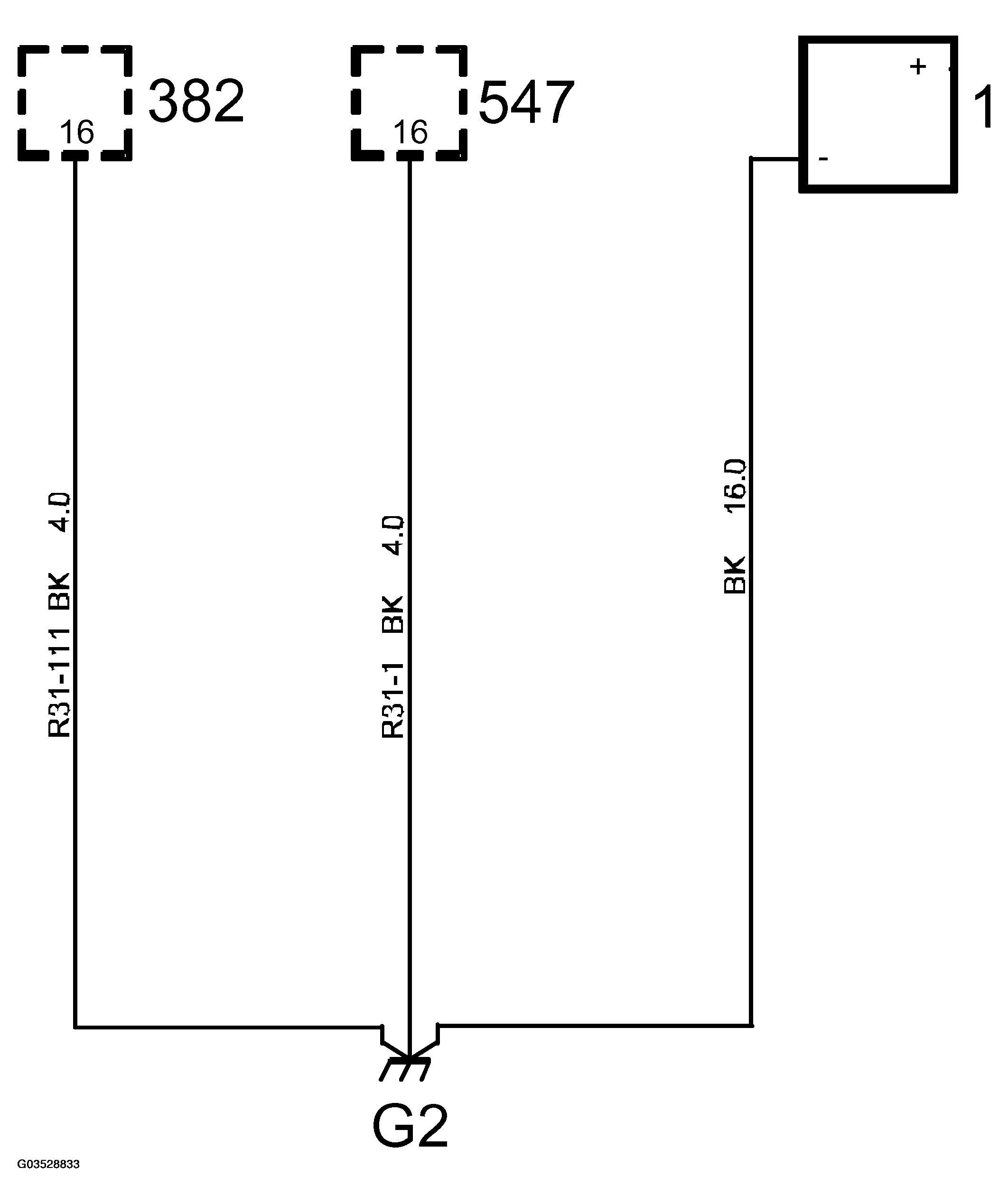

Fig 2: Electrical Grounding Connection Diagram (G2)

Courtesy of SAAB-SCANIA OF AMERICA, INC.

Location:  in engine bay on side panel in front of left-hand wheel housing.
